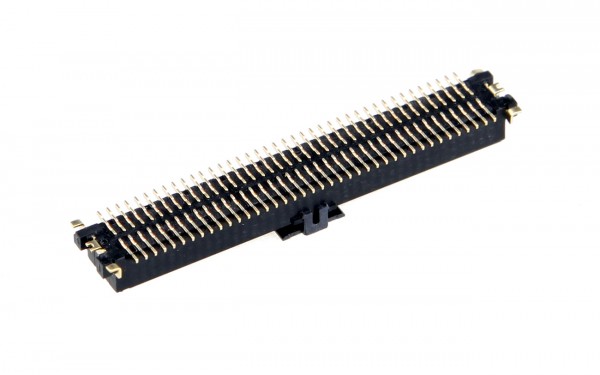

B2B male connector for Spartan-3 Micromodule

This male connector matches the two female connectors mounted on the bottom side of our Spartan-3 Micromodule TE0140. You can interface additional hardware to the Micromodule using this SMD male connector.

They give a stacking height of 3.4 mm.

The datasheet can be found here.

Note: You need two male connectors for each Micromodule.

Specification

• ASE 50103-080 x 1-001 (3.4 mm contributed hight)
• 80 contacts
• 0.8 mm pitch
