TEC0850-03-BBEX1-A
This product is not always in stock, but will be produced on customer order (on demand).
Please ask for any minimum quantities.
The predecessor of this article is TEC0850-03-15EG1E. All changes are in the Product Change Notification (PCN).
Changes within Revision 03 are included in this Product Change Notification (PCN).

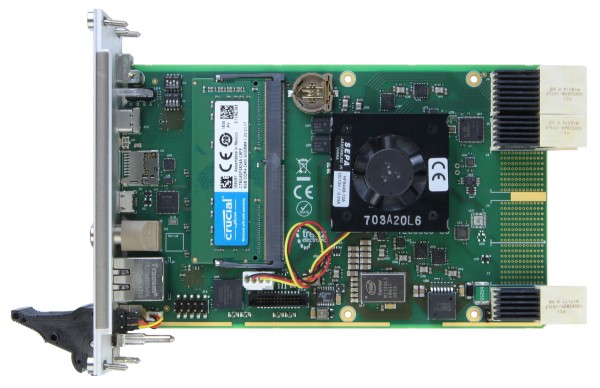

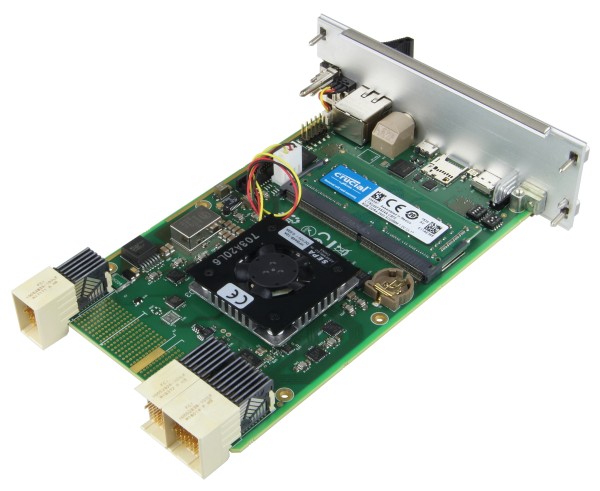

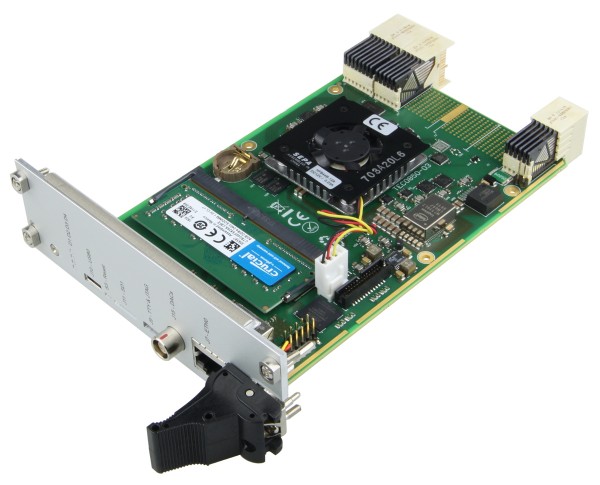

The Trenz Electronic TEC0850 board is a CompactPCI Serial card (3U form factor) integrating a Xilinx Zynq UltraScale+ MPSoC ZU15EG, one DDR4 SDRAM SODIMM socket with 64bit wide data bus, 128 MByte Flash memory for configuration and operation, 24 Gigabit transceivers on PL side and 4 on PS side, powerful switch-mode power supplies for all onboard voltages, USB2 and USB3 FIFO bridges and a large number of configurable I/Os available on the CompactPCI Serial backplane connectors.
Refer to http://trenz.org/tec0850-info for the current online version of the manual and other available documentation.
特徴
- Xilinx Zynq UltraScale+ XCZU15EG-1FFVB1156E
- ZU15EG, 1156 Pin Packages
- Dimensions: 3U, 8HP CompactPCI-Serial
- Rugged for shock and high vibration.
- Front side interface connectors
- RJ-45 GbE Ethernet interface
- Circular push/pull connector with 4x on-board 8bit DAC output
- MicroSD Card connector
- USB 2.0 and USB 3.0 to FIFO bridge connector
- 4x status LEDs
- 4 CompactPCI Serial connectors for backplane connection (3U form factor)
- 24 GTH lanes
- 4 PS GTR lanes
- USB 2.0 interface
- 64 Zynq PL HP I/O&lquot;s
- 8x PLL clock input
- JTAG, I²C and 7 user I/O&lquot;s to MAX10 FPGA
- 8 GByte (up to 32 GByte possible configuration) DDR4 SODIMM, 64-bit width, support DDR4 SODIMM with ECC
- 128 MByte dual parallel QSPI Flash (bootable), 512 MByte maximum
- 26-pin header with 20 Zynq PL HD I/O&lquot;s
- 3-pin header with 2 MAX10 FPGA I/O&lquot;s
- System Controller (Altera MAX10 FPGA SoC)
- Power Sequencing
- System management and control for MPSoC and onboard peripherals
- Si5345 programmable 10 output PLL clock generator
- Si53340 Quad clock buffer
- 1x user push button
- Zynq MPSoC cooling FAN connector
- On-board high-efficiency DC-DC converters
- Evenly spread supply pins for good signal integrity.
Other assembly options for cost or performance optimization plus high volume prices available on request.
納品物
- 1 x TEC0850-03-BBEX1-A Trenz Electronic CompactPCI Serial Card with Xilinx Zynq UltraScale+ ZU15EG
追加情報
- Manufacturer&lquot;s article number: TEC0850-03-BBEX1-A
- Trenz Electronic TEC0850 Wiki
- Support Forum
リンク
| 製品名 | 価格 | |
|---|---|---|
| TEC0850-03-BBEX1-A | 562,800 | カートに入れる |
