TE0783-02-A2I33FA
This product is not always in stock, but will be produced on customer order (on demand).
Please ask for any minimum quantities.
The predecessor of this article is TE0783-02-100-2I. All changes are in the Product Change Notification (PCN).

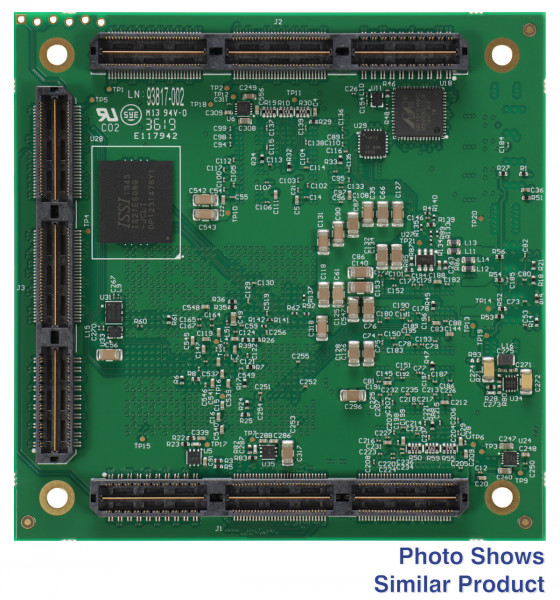

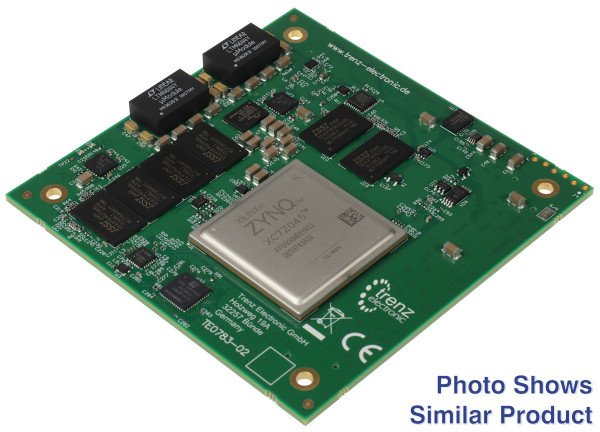

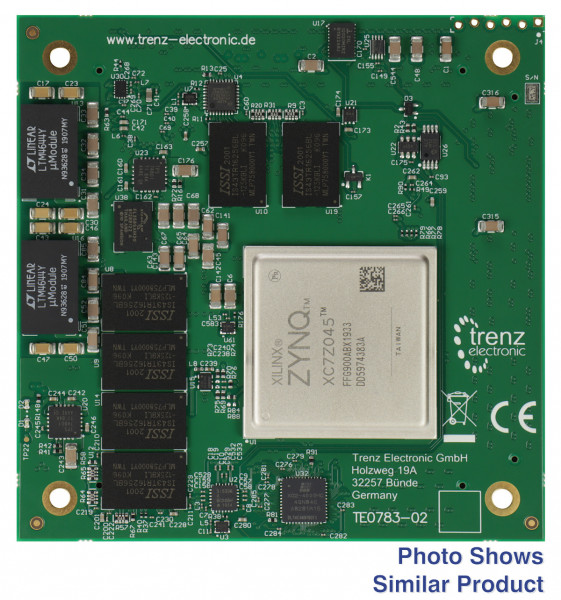

The Trenz Electronic TE0783 is a high-performance, industrial-grade SoM (System on Module) based on Xilinx Zynq-7000 SoC (XC7Z035, XC7Z045 or XC7Z100) with 1 GByte (32-bit) DDR3 RAM connected to PS, 2 GByte (64-bit) DDR3 RAM connected to PL, 8 GByte e.MMC, 16 GTX high-performance transceiver lanes, 32 MByte QSPI Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages.
A large number of configurable I/O&lquot;s is provided via rugged high-speed stacking strips. All this in a 8.5 x 8.5 cm form factor at the most competitive price.
All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.
特徴
- Xilinx Zynq XC7Z100-2FFG900I FPGA
- Rugged for shock and high vibration
- Large number of configurable I/Os are provided via rugged high-speed stacking strips
- Dual ARM Cortex-A9 MPCore
- 1 GByte (32-bit) DDR3 RAM connected to PS
- 2 GByte (64-bit) DDR3 RAM connected to PL
- 32 MByte QSPI Flash memory
- Hi-Speed USB 2.0 ULPI transceiver PHY
- Gigabit (10/100/1000 Mbps) Ethernet transceiver PHY
- 8 GByte e.MMC (optional up to 64 GByte)
- Lattice MachXO2 HC 4000 System Controller CPLD
- 40 GPIO&lquot;s available to user on B2B connector
- MAC-address EEPROM
- Serial user EEPROM
- Temperature compensated RTC (real-time clock)
- Si5338A programmable quad PLL clock generator for GTX transceiver clocks
- Plug-on module with 3 x 160-pin high-speed strips
- 16 GTX high-performance transceiver
- 4x GT transceiver clock inputs
- 166 FPGA I/O&lquot;s (83 LVDS pairs)
- On-board high-efficiency switch-mode DC-DC converters
- System management
- eFUSE bit-stream encryption
- AES bit-stream encryption
- Evenly-spread supply pins for good signal integrity
- User LED
Other assembly options for cost or performance optimization plus high volume prices available on request.
納品物
- 1 x TE0783-02-A2I33FA Trenz Electronic SoM with Xilinx Zynq-7100 FPGA
追加情報
- Manufacturer&lquot;s article number: TE0783-02-A2I33FA
- Trenz Electronic TE0783 Wiki
- Support Forum
