Arrow Electronics and Trenz Electronic developed a very small and comprehensive module for qualified CO₂ measurements to support customers in their development and end products.

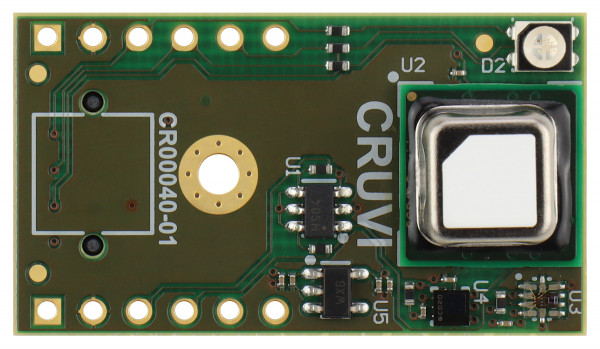

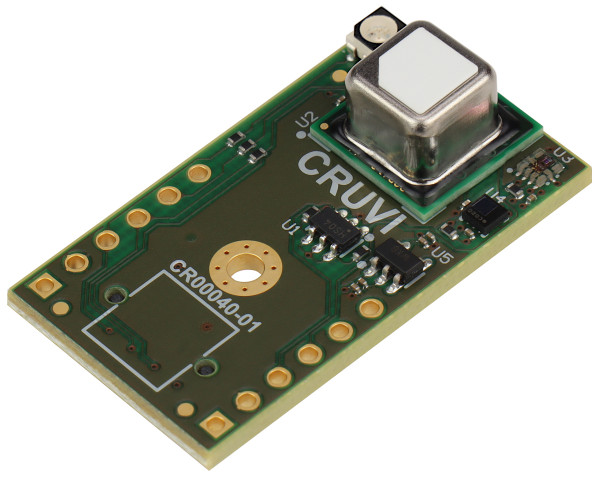

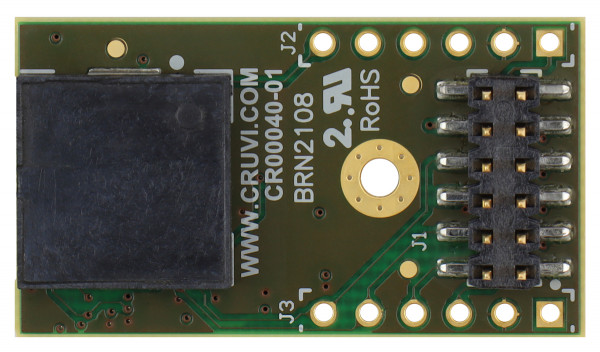

The CRUVI module (32 mm x 18 mm) includes Sensirion&lquot;s new SCD40 miniature CO₂ sensor. The SCD4x family has also an integrated humidity sensor and temperature sensor. To create full solutions with the CRUVI module and use it for condition monitoring applications, it also has an ambient light sensor and an ambient pressure sensor. For indication of a status or critical CO₂ levels, an RGB LED can send out warning signals and a buzzer mounted on the bottom side of the module can generate acoustic signals.

The new CO₂ sensor is based on the photoacoustic sensor principle and the patented Sensirion technologies PASens® and CMOSens®, providing maximum performance in addition to minimum size. SMD compatibility and extremely compact dimensions enable cost-efficient and space-saving integration of customer designs. The integrated, industry-leading humidity and temperature sensor provides excellent on-chip signal compensation as well as additional RH and T outputs. With its large voltage range of 2.4 to 5.5V, insensitivity to external loads and adjustable power consumption, the SCD40 is ideal for a wide variety of customer requirements.

In order to achieve good measurement results, the DesignIn Guide from Sensirion should be observed.

特徴

• CO₂ Sensor (humidity, temperature)
  • Sensirion SCD40
• EEPROM memory
  • 24AA025E48T
• Ambient Light Sensor
  • TSL25403M
• Absolute Pressure Sensor
  • LPS22HBTR
• On board
  • RGB LED (Visual signals/alarms)
  • Buzzer (Acoustic signals/alarms)
• Power
  • 3.3V
• Dimension
  • 32 mm x 18 mm

SCD40 – CO₂ Sensor Modul

• Integrated RH + T sensor
• Smallest form factor
• Large supply voltage range
• Consistently accurate measurements due to superior mechanical robustness
• Compatibility with all major standards
• Lowest integration and product cost
• Space and cost-effective assembly due to reflow solderability

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x CR00040-01-40 Trenz Electronic CRUVI Modul with Sensirion SCD40 CO₂ Sensor

追加情報

• Manufacturer&lquot;s article number: CR00040-01-40
• Trenz Electronic Wiki CR00040
• Sensirion SCD4x Product Page
• Sensirion SCD4x Download Center
• Support Forum
