TEI1000-01-A1I11-A

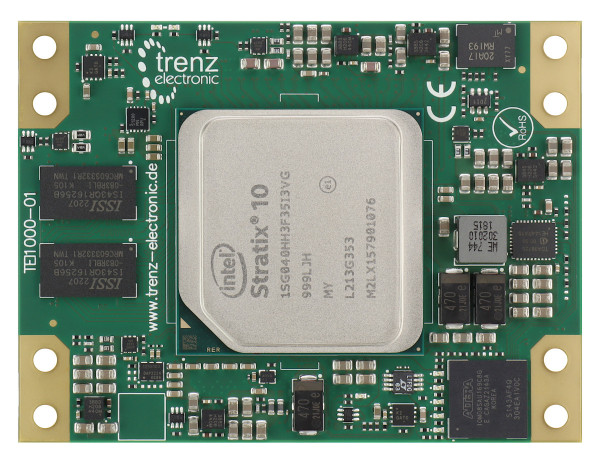

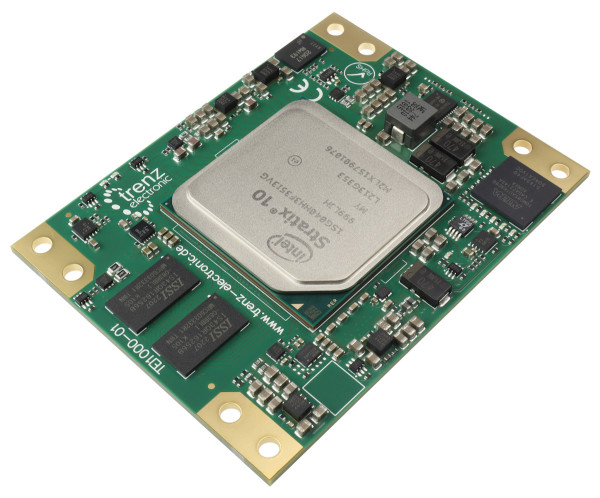

The Trenz Electronic TEI1000-01-A1I11-A is an industrial SoC module based on Intel® Stratix® 10 SX.

The Intel® Stratix® 10 FPGA devices offer higher core performance, up to 7 x transceiver bandwidth and higher I/O performance than the previous generation. To meet the challenges of next-generation systems, Intel® Stratix® 10 FPGAs and SoCs feature the new Intel Hyperflex™ FPGA architecture, which offers twice the clock frequency performance and up to 70% lower power consumption compared to previous generation high-end FPGAs.

Intel® Stratix® 10 SoC FPGA combines a quad-core ARM Cortex–A53 MPCore hard processor system with the revolutionary Intel® Hyperflex™ FPGA Architecture to deliver the embedded performance, power efficiency, density, and system integration necessary for embedded applications.

Intel® Stratix® 10 FPGA devices address the design challenges in next-generation, high-performance systems in wireline and wireless communications, computing, storage, military, broadcast, medical and test and measurement end markets.

特徴

  • Intel® Stratix® 10 SX SoC-FPGA (1SX040HH3F35I3VG)
    • Size: 378kLE
    • DSP Blocks: 648
    • Embedded memory: up to 32 Mbit
    • Temperature: -40°C to 100°C
    • Multipliers: 1,296
  • Quad-core 64-bit ARM Cortex-A53 up to 1.5GHz
    • co-processor: ARM Neon media processing engine
    • on-chip memory: 256 KB on-chip RAM
    • DMA controller: 8 channels
    • up to 3 x Gbit EMAC for Ethernet (with external PHY)
    • up to 2 x USB OTG (with external PHY)
  • 1 GByte DDR4 SDRAM, 32 Bit Data Width
  • 64 MByte QSPI Boot Flash
  • Intel MAX 10 as System Controller

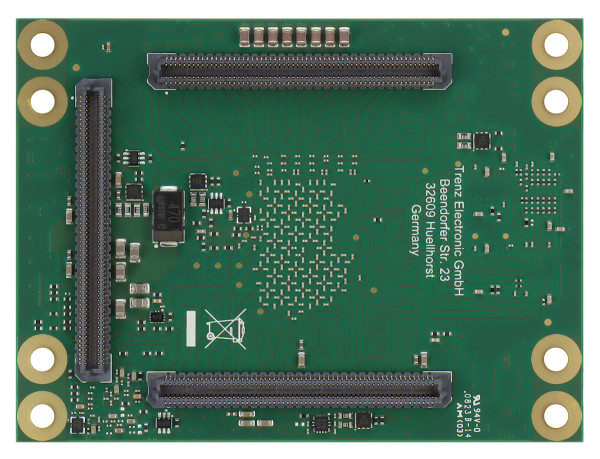

  • 3 x 240-Pin BGA connectors
  • I/O-Interfaces:
    • High Performance IOs: 144 (72 LVDS pairs)
    • High Voltage IOs: 48
    • General purpose IOs: 56
    • HPS/CPU IOs: 48
  • 18 x 17.4 Gbps Gigabit Transeivers (PCIe Gen3 x 16 capable)
  • Status and user LEDs
  • size: 6 x 8 cm

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

  • 1 x TEI1000-01-A1I11-A Trenz Electronic SoC Module with Intel® Stratix® 10 SX

追加情報


リンク

製品名価格
TEI1000-01-A1I11-A66,800カートに入れる
