TEI1000-01-ADI11-A
This product is not always in stock, but will be produced on customer order (on demand).
Please ask for any minimum quantities.

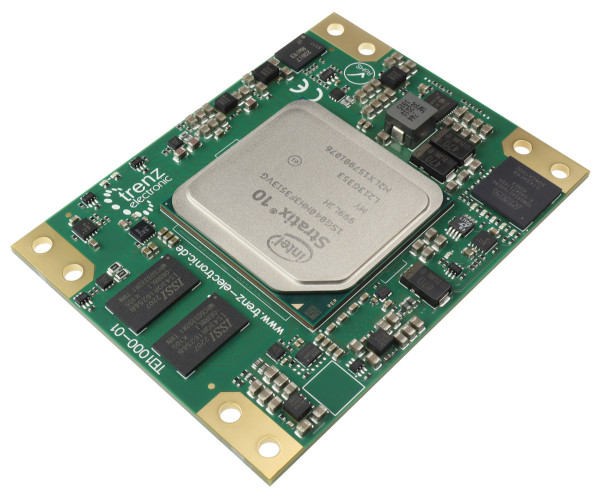

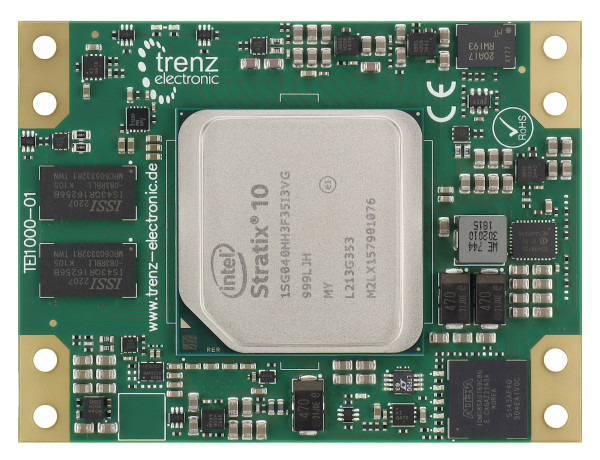

The Trenz Electronic TEI1000-01-ADI11-A is an industrial FPGA module based on Intel® Stratix® 10 GX.
The Intel® Stratix® 10 FPGA devices offer higher core performance, up to 7 x transceiver bandwidth and higher I/O performance than the previous generation. To meet the challenges of next-generation systems, Intel® Stratix® 10 FPGAs and SoCs feature the new Intel Hyperflex™ FPGA architecture, which offers twice the clock frequency performance and up to 70% lower power consumption compared to previous generation high-end FPGAs.
Intel® Stratix® 10 FPGA devices address the design challenges in next-generation, high-performance systems in wireline and wireless communications, computing, storage, military, broadcast, medical and test and measurement end markets.
特徴
- Intel® Stratix® 10 GX FPGA (1SG040HH3F35I3VG)
- Size: 378kLE
- DSP Blocks: 648
- Embedded memory: up to 32 Mbit
- Temperature: -40°C bis 100°C
- Multipliers: 1,296
- 1 GByte DDR4 SDRAM, 32 Bit Data Width
- 64 MByte QSPI Boot Flash
- Intel MAX 10 as System Controller

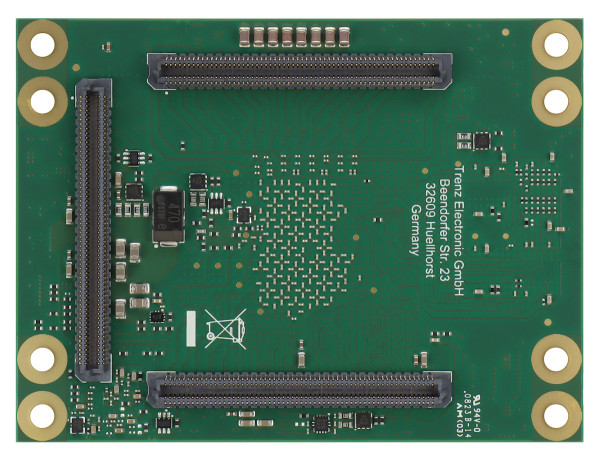

- 3 x 240-Pin BGA connectors
- I/O-Interfaces:
- High Performance IOs: 144 (72 LVDS pairs)
- High Voltage IOs: 48
- General purpose IOs: 56
- 18 x 17.4 Gbps Gigabit Transeivers (PCIe Gen3 x 16 capable)
- Status and user LEDs
- size: 6 x 8 cm
Other assembly options for cost or performance optimization plus high volume prices available on request.
納品物
- 1 x TEI1000-01-ADI11-A Trenz Electronic SoC Module with Intel® Stratix® 10 GX
追加情報
- Manufacturer&lquot;s article number: TEI1000-01-ADI11-A
- Trenz Electronic TE1000Wiki
- Support Forum
リンク
| 製品名 | 価格 | |
|---|---|---|
| TEI1000-01-ADI11-A | 980 | カートに入れる |
