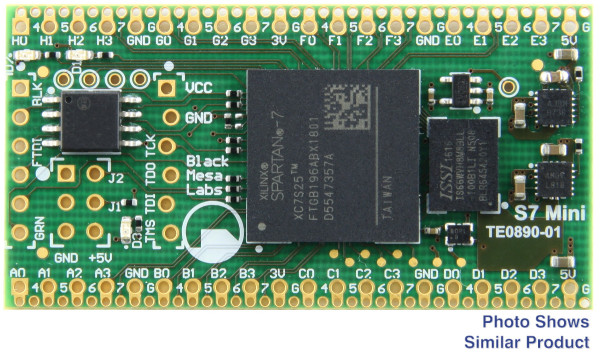

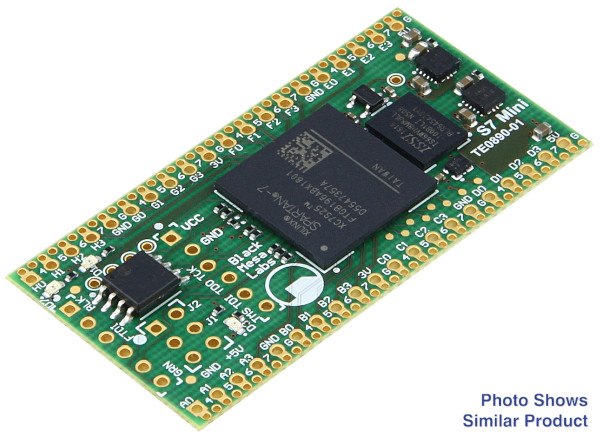

TE0890-02-P1C-5-A
特徴
- AMD Spartan™ 7 XC7S25-1FTGB196C FPGA
- Dimensions: 2.7 x 5.2 cm
- Fully Open-Source Spartan™ 7 Module
- 7S25 target with 23K logic cells, 29K flops, 45 36Kb BRAMs, 80 mults.
- Footprint compatible with 7S6, 7S15, 7S50 FTGB-196 devices
- Devices fully supported by free "Web Pack" Vivado for Synthesis, Place + Route
- Dual-pinout DIP-40 or 50mil 80 pin connectors for 32 or 64 FPGA 3.3V I/Os
- 64 Mbit Config PROM for dual-boot and/or SW code storage
- 64 Mbit HyperRAM DRAM (may be used as video frame buffer)
- Standard 1x6 FTDI cable serial interface to Host-PCs
- Standard 1x6 Digilent HS2 JTAG header for initial PROM programming
- 5V supply input (4.0V-5.5V per PAM2305 spec)
Other assembly options for cost or performance optimization plus high volume prices available on request.
納品物
- 1 x TE0890-02-P1C-5-A Trenz Electronic FPGA module with AMD Spartan™ 7
追加情報
- Manufacturer&lquot;s article number: TE0890-02-P1C-5-A
- Trenz Electronic TE0890 Wiki
- Support Forum
リンク
| 製品名 | 価格 | |
|---|---|---|
| TE0890-02-P1C-5-A | 7,280 | カートに入れる |
