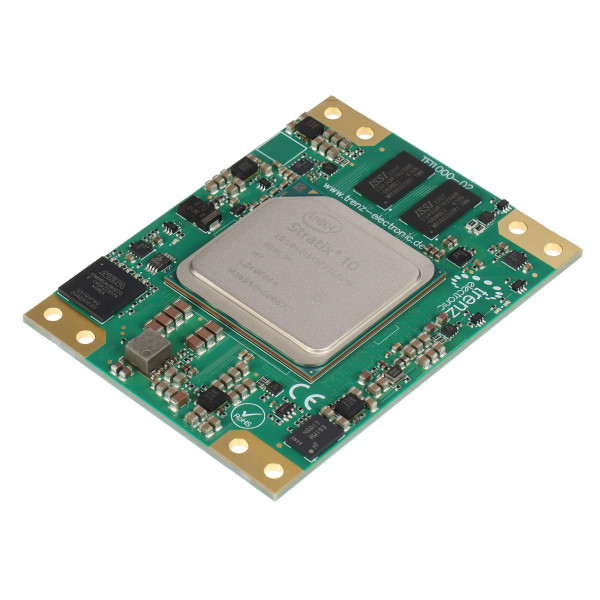

TEI1000-02-A3I11-A
特徴
- Altera® Stratix® 10 SX SoC-FPGA (1SX040HH3F35I3VG)
- Size: 378kLE
- DSP Blocks: 648
- Embedded memory: up to 32 Mbit
- Temperature: -40°C to 100°C
- Multipliers: 1,296
- Quad-core 64-bit ARM Cortex-A53 up to 1.5GHz
- co-processor: ARM Neon media processing engine
- on-chip memory: 256 KB on-chip RAM
- DMA controller: 8 channels
- up to 3 x Gbit EMAC for Ethernet (with external PHY)
- up to 2 x USB OTG (with external PHY)
- 1 GByte DDR4 SDRAM, 32 Bit Data Width
- 64 MByte QSPI Boot Flash
- Intel MAX 10 as System Controller

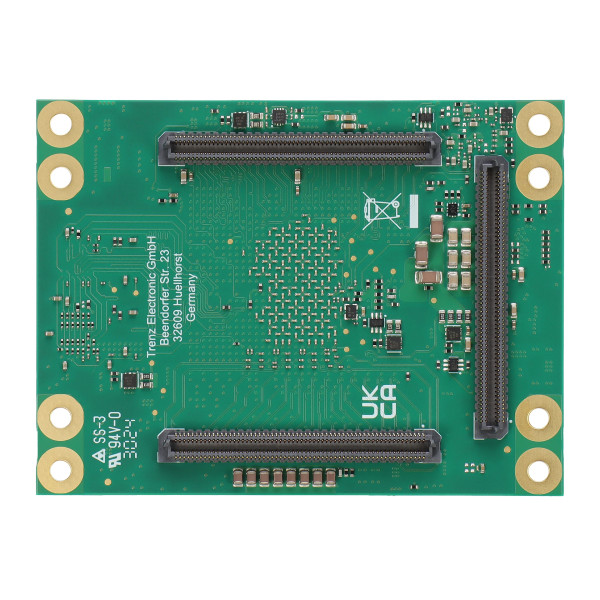

- 3 x 240-Pin BGA connectors
- I/O-Interfaces:
- High Performance IOs: 144 (72 LVDS pairs)
- High Voltage IOs: 48
- General purpose IOs: 56
- HPS/CPU IOs: 48
- 18 x 17.4 Gbps Gigabit Transeivers (PCIe Gen3 x 16 capable)
- Status and user LEDs
- size: 6 x 8 cm
Other assembly options for cost or performance optimization plus high volume prices available on request.
納品物
- 1 x TEI1000-02-A3I11-A Trenz Electronic SoC Module with Stratix® 10 SX
追加情報
- Manufacturer&lquot;s article number: TEI1000-02-A3I11-A
- Trenz Electronic TEI1000Wiki
- Support Forum
リンク
| 製品名 | 価格 | |
|---|---|---|
| TEI1000-02-A3I11-A | 76,800 | カートに入れる |
