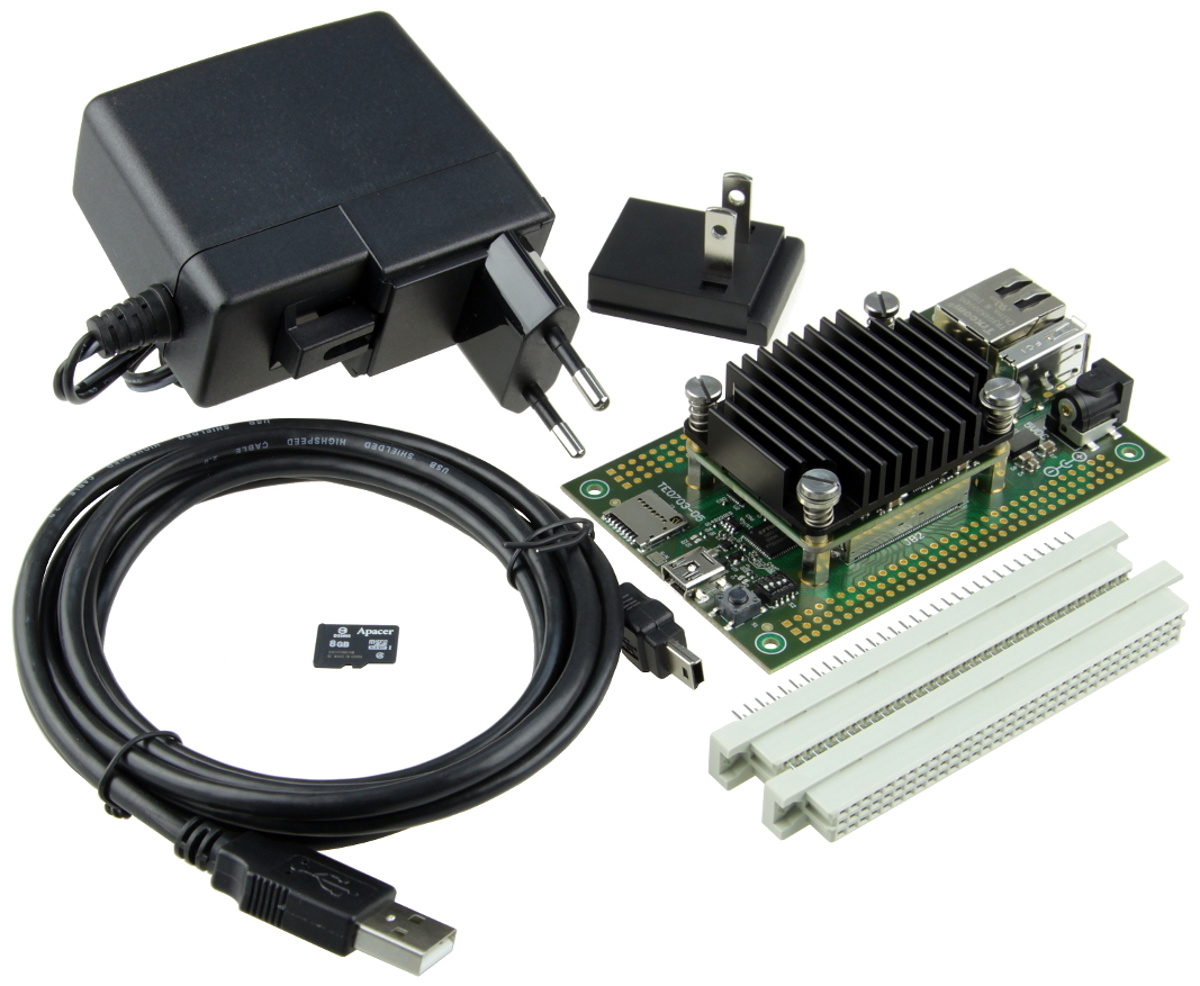

The Trenz Electronic Starter Kit TE0820-05-4DE81MAS includes a TE0820-05-4DE81MA SoC module on a TE0703-07 carrier board with a heatsink. Supplied with a 5V power supply, two VG96 connectors (DIN 41612), a 32 GB microSD card and a USB cable.

特徴

• FPGA
  • Device: AMD Zynq™ UltraScale+™ XCZU4EV-1SFVC784E
  • Speedgrade: -1
  • Temperature range: Extended
  • Package: SFVC784
  • Graphic Processing Unit (GPU) + Video codec unit (VCU)

• RAM/Storage
  • 2 GByte DDR4 SDRAM
  • 128 MByte QSPI Boot Flash in dual parallel mode
  • 8 GByte e.MMC Memory
  • MAC address serial EEPROM with EUI-48 Node Identity

• On Board
  • Lattice MachXO2 CPLD
  • Programmable quad PLL clock generator PLL for PS GTR clocks
  • Hi-speed USB2 ULPI Transceiver
  • 4 x LEDs

• Interface
  • Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
  • Gigabit Ethernet transceiver PHY
  • Hi-speed USB2 ULPI transceiver with full OTG support
  • Graphic Processor Mali-400 MP2
  • 132 x HP PL I/Os (3 banks)
  • 14 x PS MIOs (6 of the MIOs intended for SD card interface in default configuration)
  • 4 x serial PS GTR transceivers
  • Four high-speed serial I/O (HSSIO) interfaces supporting following protocols:
    • PCI Express interface
    • SATA 3.1 interface
    • DisplayPort interface with video resolution up to 4k x 2k
    • USB 3.0 specification compliant interface implementing a 5 Gbit/s line rate
    • 1 GB/s serial GMII interface

• Power
  • All power supplies on board

• Dimension
  • 4 x 5 cm

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

追加情報

• Manufacturer&lquot;s article number: TE0820-05-4DE81MAS
• Trenz Electronic Wiki TE0820 Starter Kit
