特徴

• FMC HPC (10 x transceiver, 34 x LVDS on LA, 10 x LVDS on HA) VADJ=1.8V
• 2 x SFP+
• 3 x Samtec ST5 Board to Board connectors
• Gigabit Ethernet connector
• USB3.0 - type C
• USB2.0 - microUSB (JTAG/UART)
• 3 x push button (2 x user, system controller config)
• 3 x LED (Power, 2 x user)
• 2 x SMA clock (In, OUT) (optional, DNP)
• Single power connector 12V
• Strong DCDC converters for all needed voltages
• Size: 15 x 12 cm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

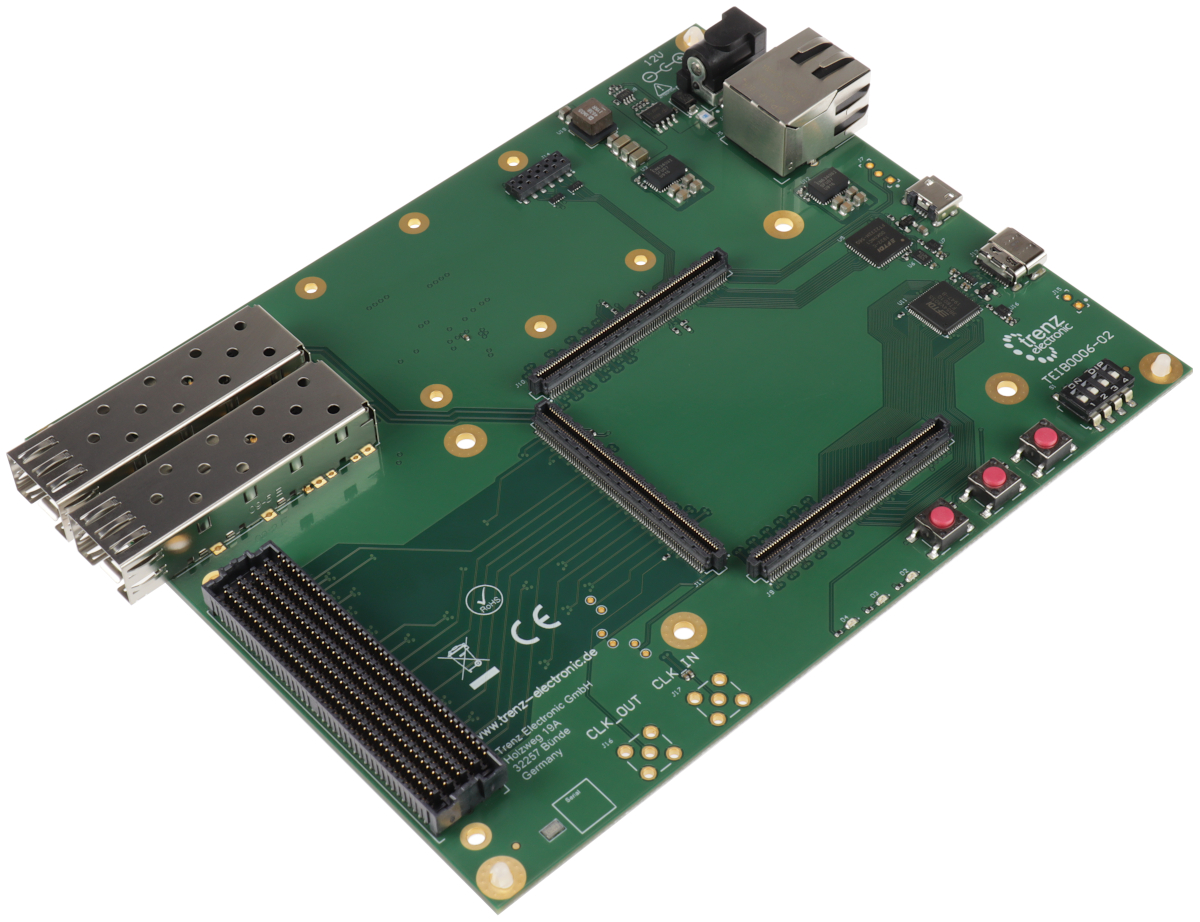

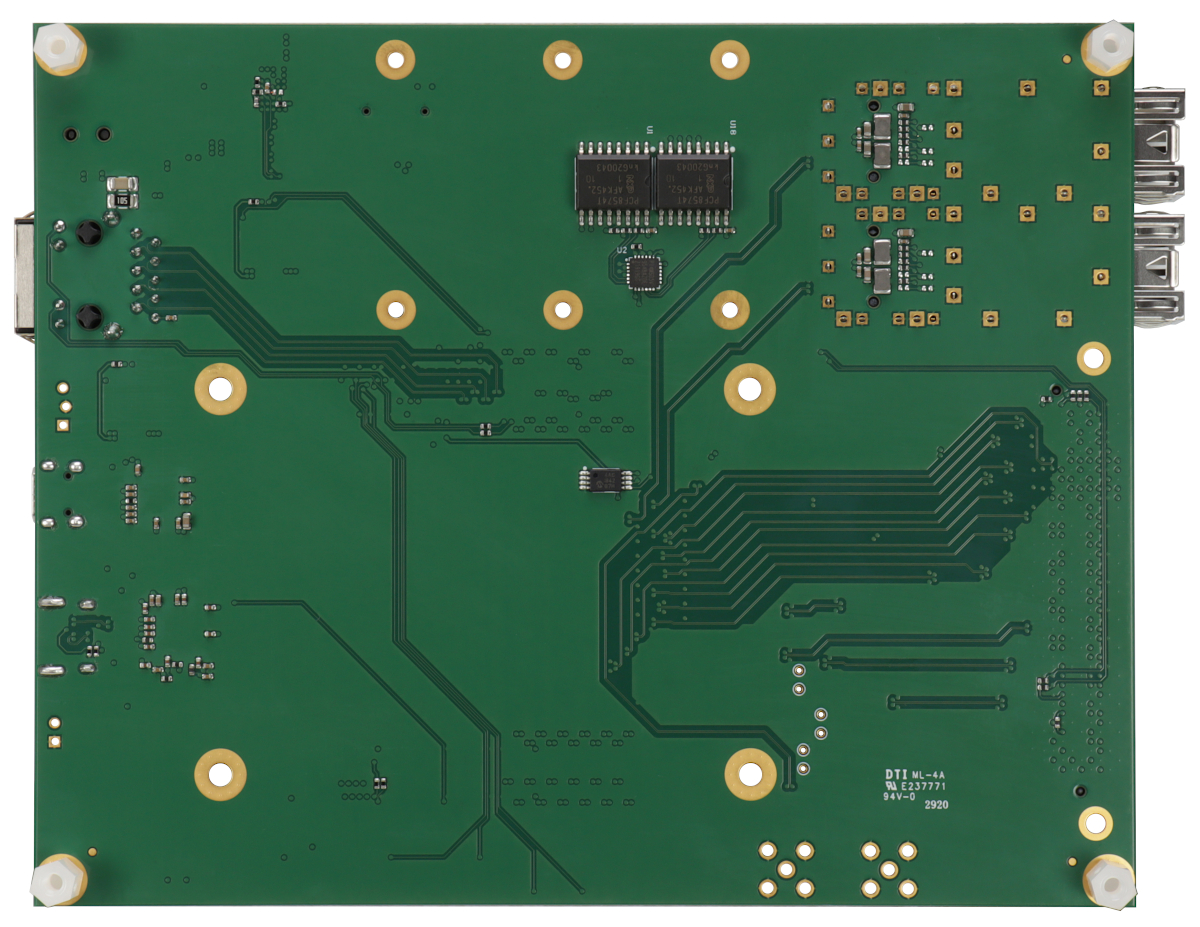

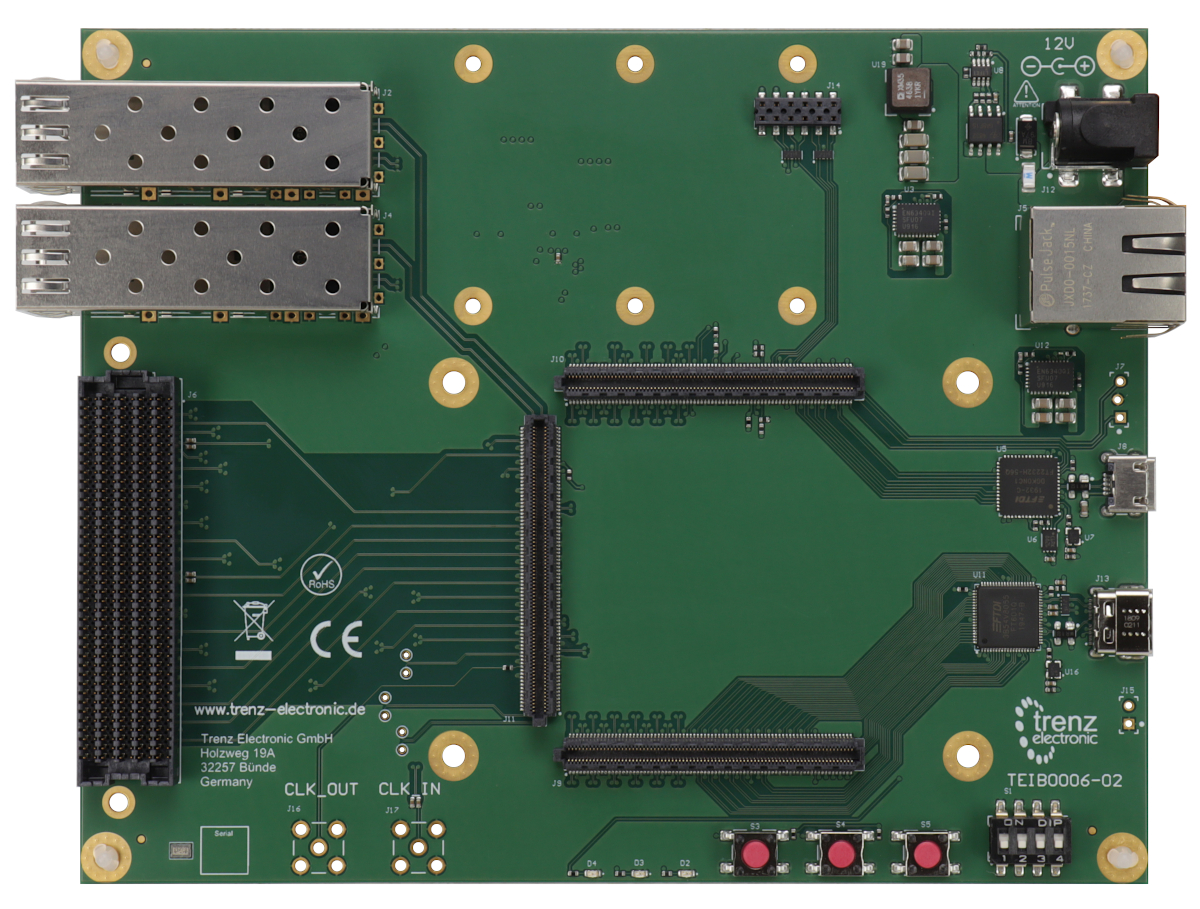

• 1 x TEIB0006-03-A Trenz Electronic development carrier board
• 4 x spacers

追加情報

• Manufacturer&lquot;s article number: TEIB0006-03-A
• Trenz Electronic TEIB0006 Wiki
• Support Forum
