特徴

• AMD Artix™ 7 XC7A100T-2CSG324C
• Commercial temperature grade
• 64 MByte Flash memory
• 2 x 50 pin headers with 2.54 mm pitch, ideal for breadboard use
• 1.8 V single supply with on board voltage regulators
• 95 I/O&lquot;s (42 + 42 + 3 + 8)
• 25 MHz system clock
• I²C EEPROM
• 7.3 x 3.5 cm form factor
• JTAG/UART connector
• One user LED
• Optional HyperRAM (8 to 32 MByte) or HyperFlash
  HyperRAM from Cypress cypress.com/products/hyperram-memory
  HyperFlash from Cypress cypress.com/products/hyperflash-nor-flash-memory

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

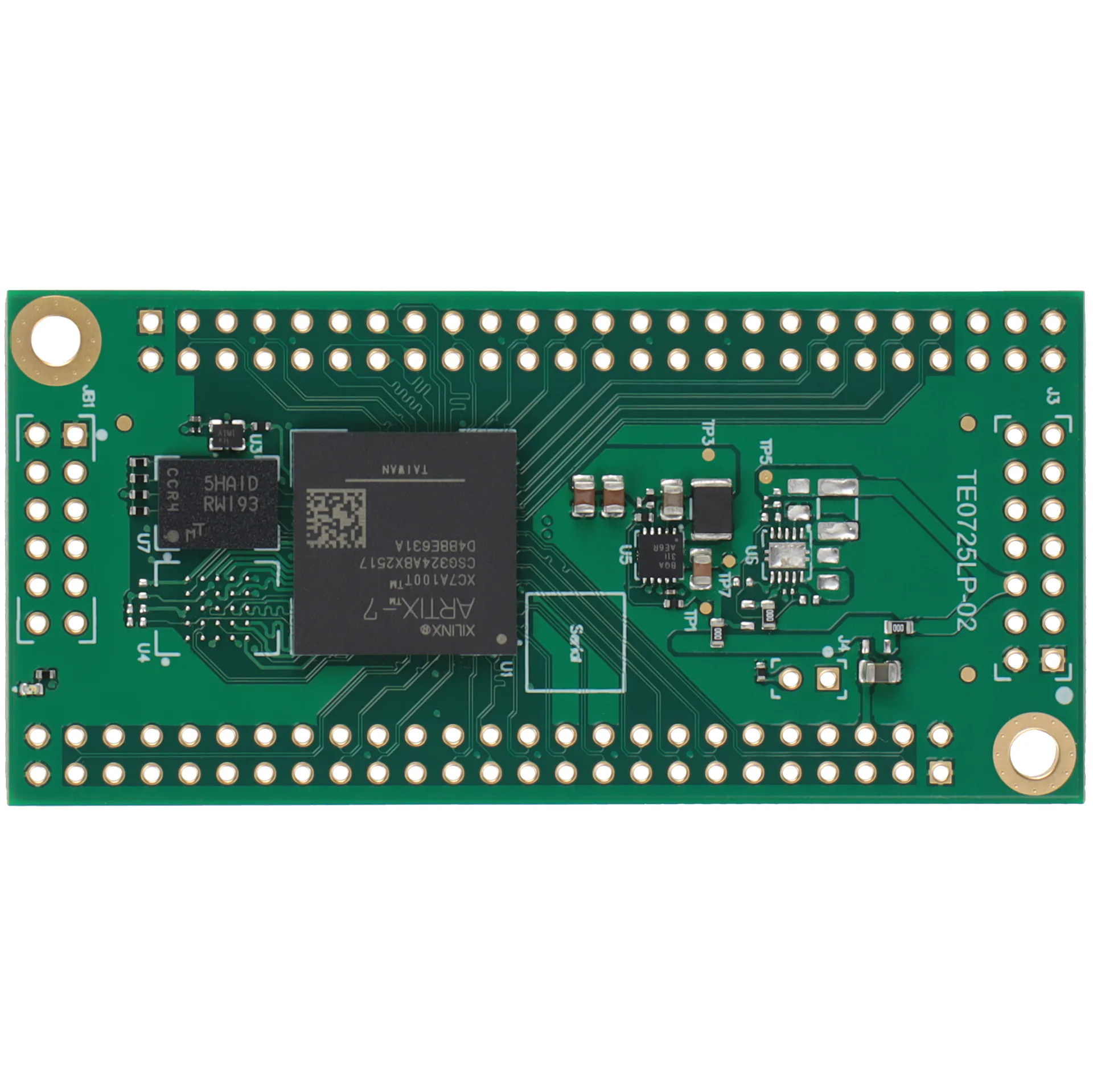

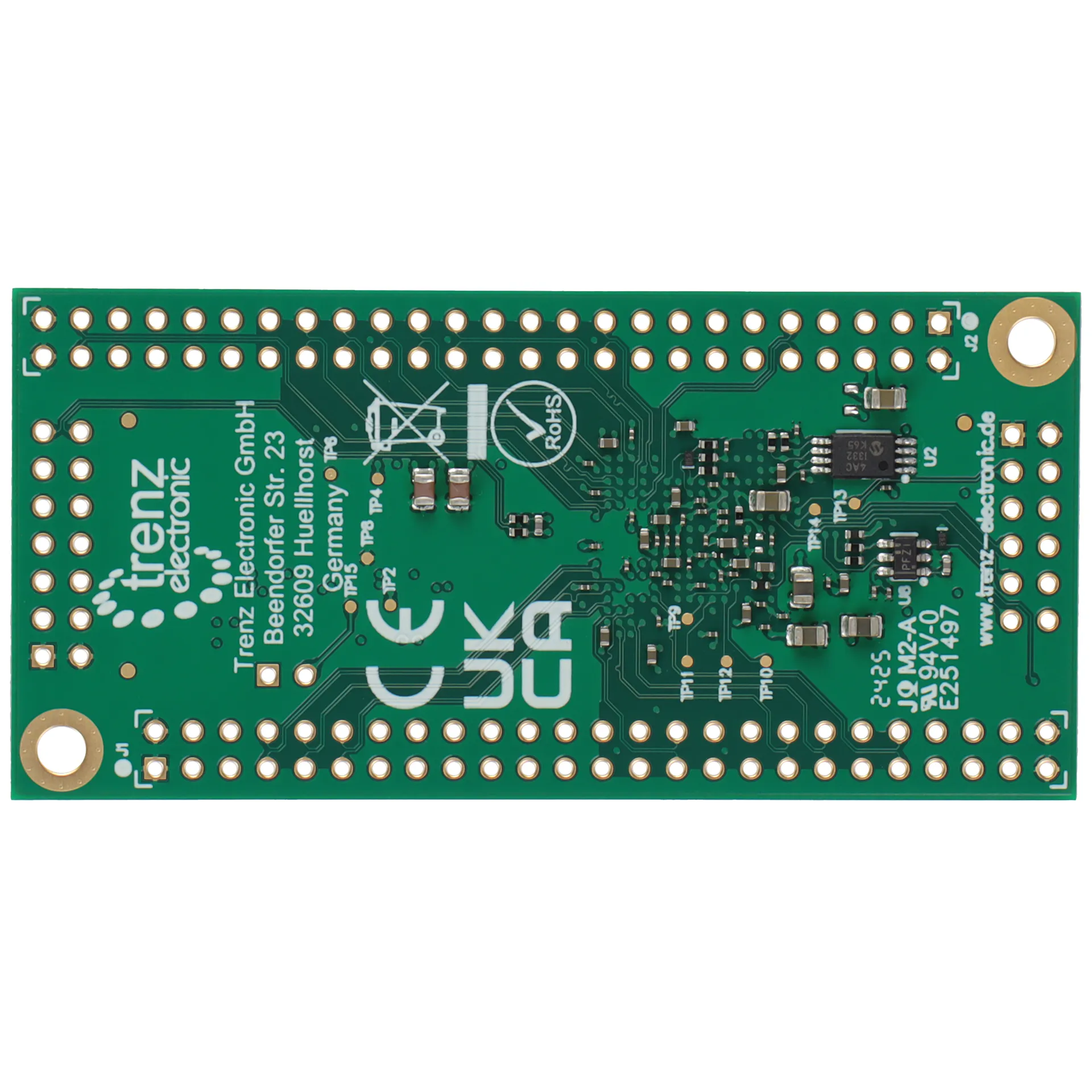

• 1 x TE0725LP-02-72C-AU Trenz Electronic FPGA module with AMD Artix™ 7 100T (without soldered pin headers)
• 2 x pin header, double row, 50-pin connector
• 1 x pin header, double row, 12-pin connector

追加情報

• Manufacturer&lquot;s article name: TE0725LP-02-72C-AU
• Trenz Electronic TE0725LP Wiki
• Support Forum
