TE0817-02-7DE81-AS

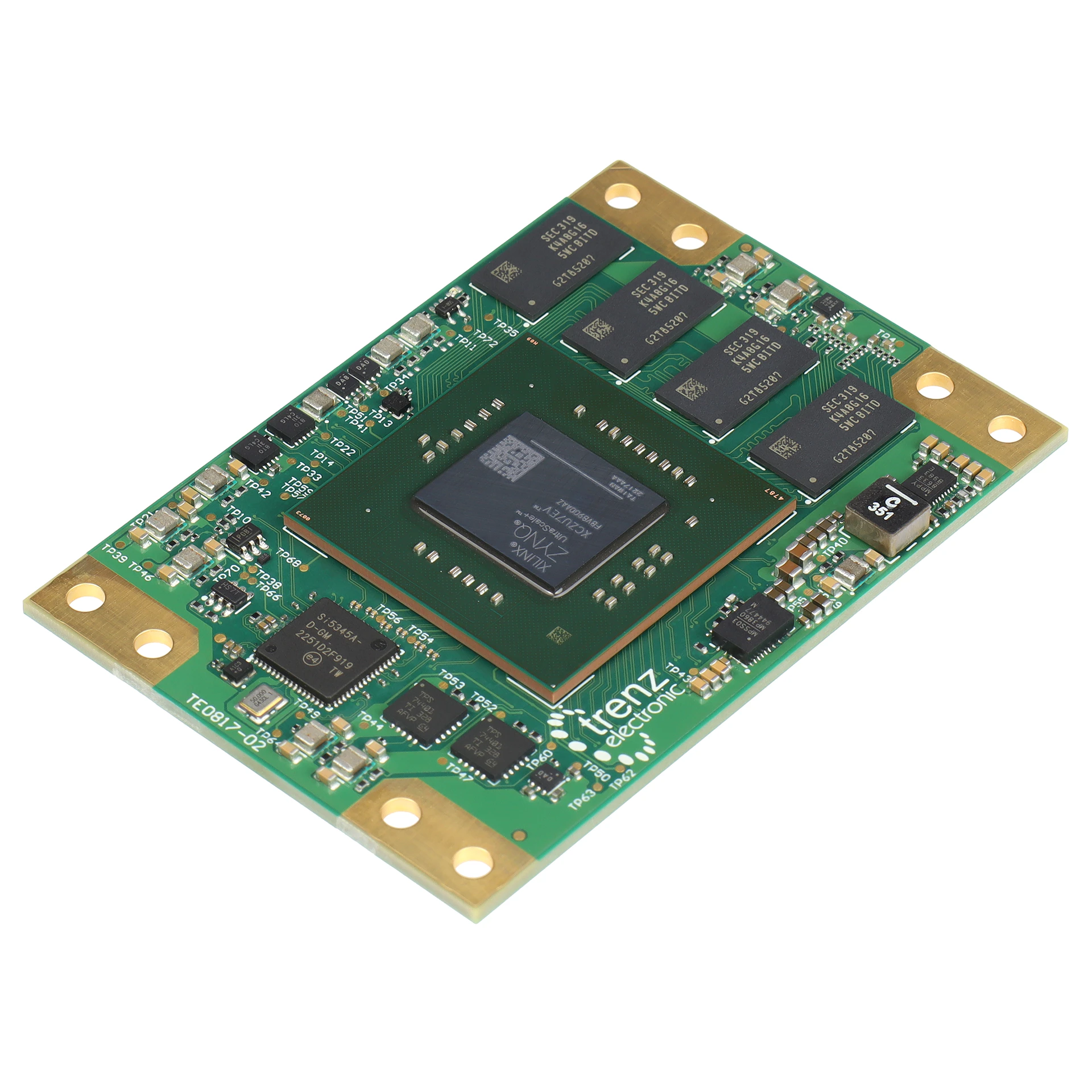

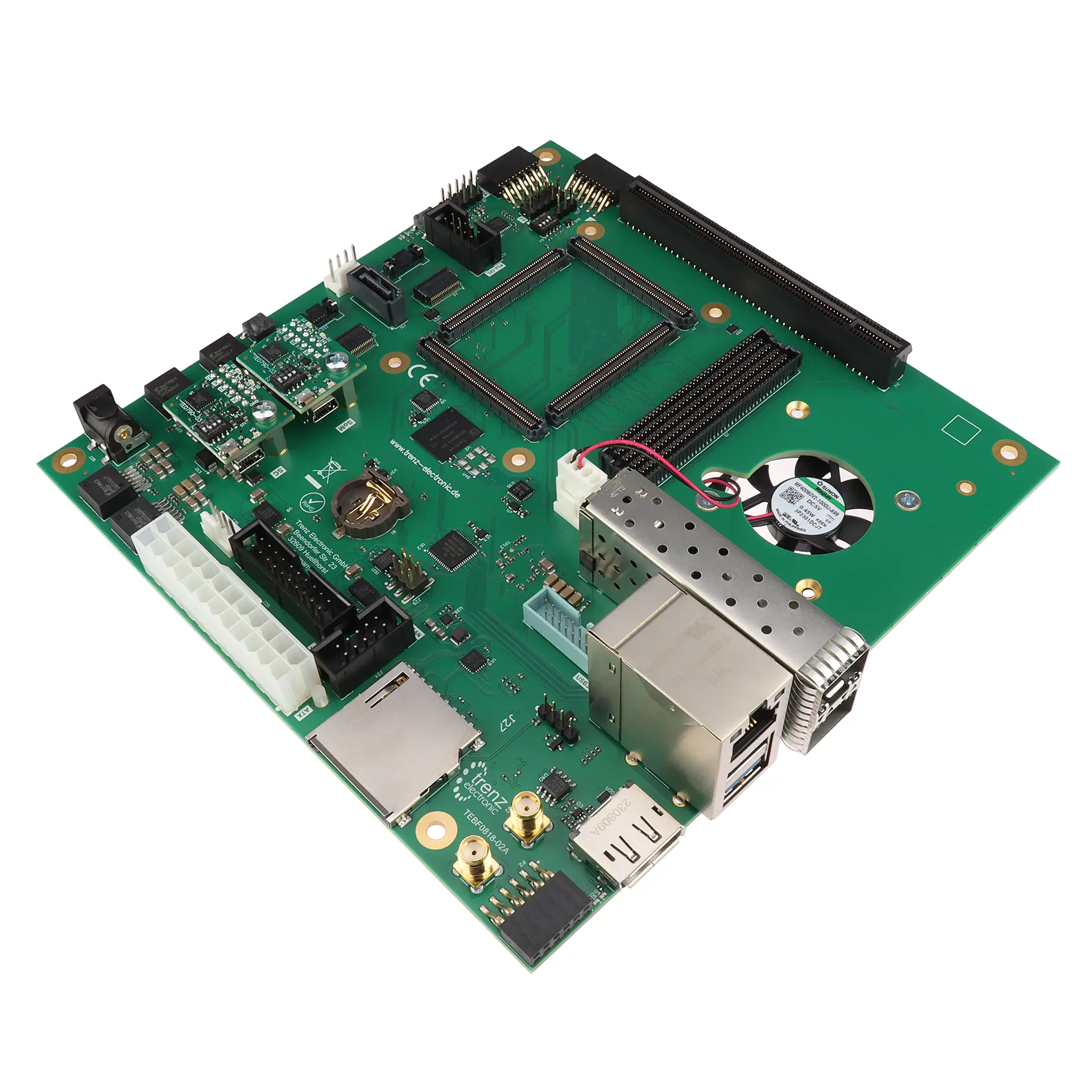

The Trenz Electronic Starter Kit TE0817-02-7DE81-AS consists of a TE0817-02-7DE81-A module with ZU7EV on a TEBF0818-02 base board including a pre-assembled heatsink, in a black Core V1 Mini-ITX Enclosure. Supplied with a Be Quiet! 400 W power supply for the enclosure, two mounted XMOD FTDI JTAG Adapter, an 32 GB micro SD card, an USB cable, a power cable and screws.
特徴
- Mini-ITX form factor, PC enclosure compatible
- ATX-24 power supply connector
- Optional 12V standard power plug
- Headers
- Intel 10-pin HDA audio
- Intel 9-pin power/reset button, Power-/HD-LED
- PC-BEEPER
- On-board power-/reset-switches
- 2 x configuration 4-bit DIP switches
- 2 x optional 4-wire PWM fan connectors
- PCIe slot - one PCIe lane (16 lane connector)
- CAN FD transceiver (10 Pin IDC connector and 6-pin header)
- 4 x On-board configuration EEPROMs (1 x Microchip 24LC128-I/ST, 3 x Microchip 24AA025E48T-I/OT)
- Dual SFP+ connector (2x1 Cage)
- 1 x DisplayPort (single lane)
- 1 x SATA connector
- 2 x USB 3.0 A connector (Superspeed Host Port (Highspeed at USB 2.0))
- 1 x USB 3.0 on-board connector with two ports
- FMC HPC slot (FMC_VADJ max. VCCIO)
- FMC fan
- Gigabit Ethernet RGMII PHY with RJ45 MagJack
- All carrier board peripherals&lquot; I²C interfaces muxed to MPSoC&lquot;s I²C interface
- Quad programmable PLL clock generator
- 2 x SMA coaxial connectors for clock signals
- MicroSD/MMC card socket (bootable)
- 64 GBit (8 GByte) on-board eMMC Flash
- 2 x System controller CPLDs Lattice MachXO2 1200 HC
- 1 x Samtec FireFly (4 GT lanes bidirectional)
- 1 x Samtec FireFly connector for reverse loopback
- 20-pin ARM JTAG connector (PS JTAG0)
- 3 x Pmod connector (GPIO&lquot;s and I²C interface to SC CPLDs and MPSoC module)
- On-board DC-DC PowerSoCs
- Size: 170 mm × 170 mm. Please download the assembly diagram for exact details.
- Mating height with standard connectors: 5 mm

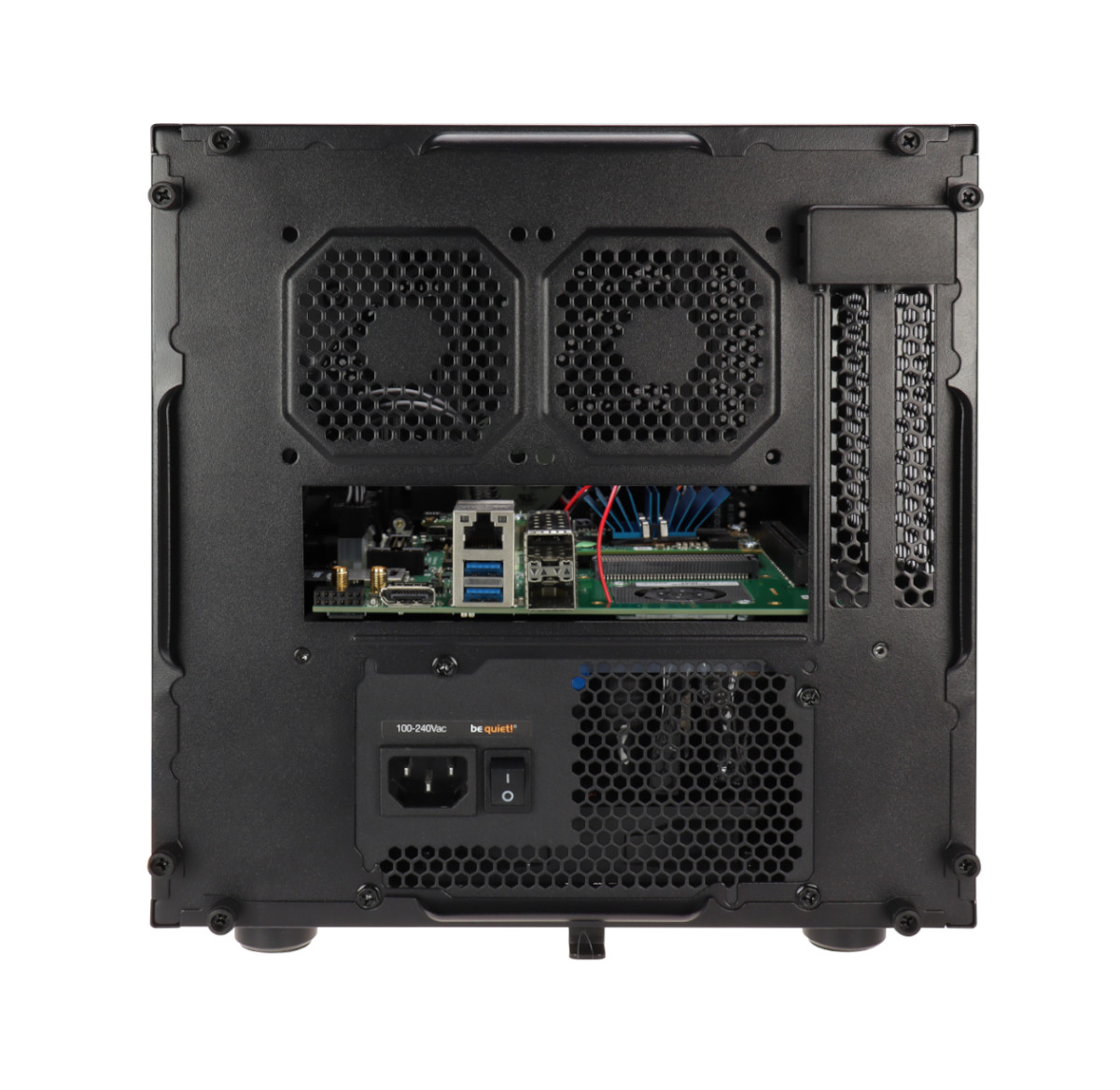

PC Enclosure Accessible I/O
- PCIe
- FMC
- Dual SFP+
- RJ45 Gigabit Ethernet
- 2 x USB3 Host
- Displayport
- microSD
- Two LEDs
- CAN FD (using DB9 to IDC10 Cable)
納品物
追加情報
- Manufacturer&lquot;s article number: TE0817-02-7DE81-AS
- Trenz Electronic TE0817 Starter Kit Wiki
- Support Forum
