The predecessor of this article is TEMB0005-01. All changes are in the Product Change Notification (PCN).

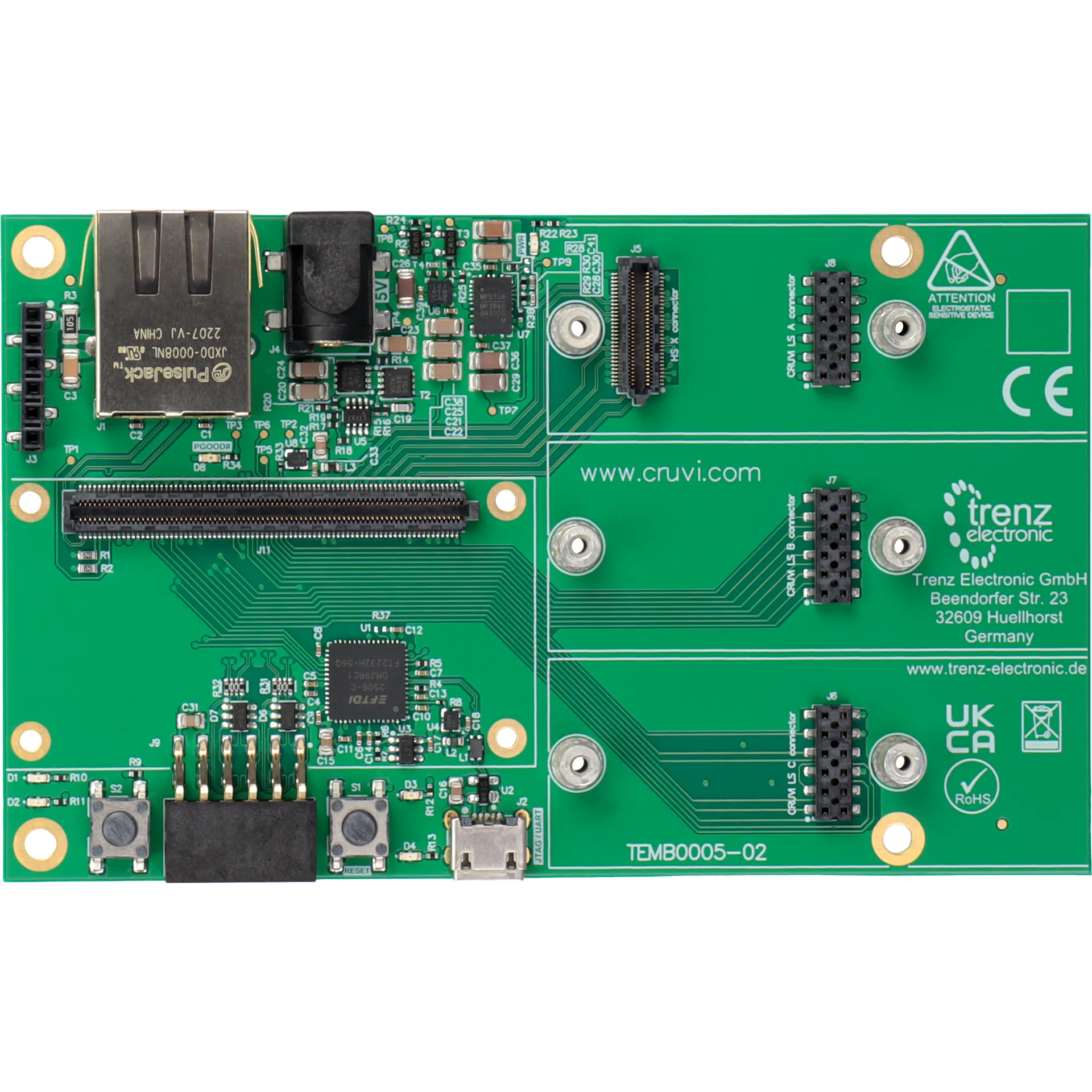

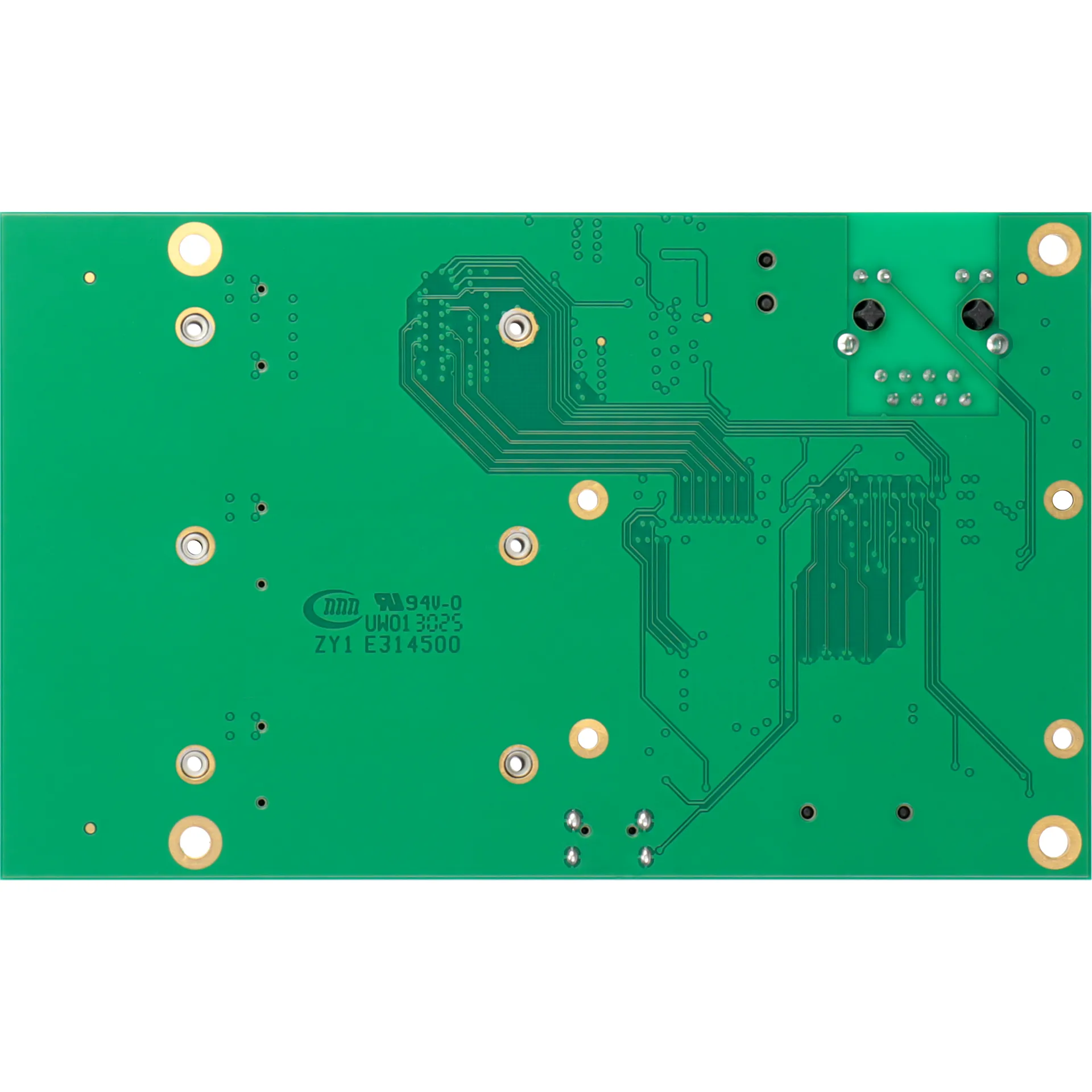

The Trenz Electronic TEMB0005 is a carrier for the module TEM0005 from Trenz Electronic. The carrier is equipped with a LAN socket, a FTDI JTAG/UART to USB2.0 solution, three low speed and one high speed CRUVI B2B Connectors, a Pmod Connector.

特徴

• Supported Module
  • TEM0005


• RAM/Storage
  • 2 KB EEPROM


• On Board
  • FT2232H FTDI
  • 4 x User LEDs
  • 2 x Push Buttons
  • 2 x MEMS Oscillators


• Interfaces
  • 1 x Samtec Razor Beam (SS5) B2B Connector
  • 1 x Samtec Razor Beam (SS4) High Speed CRUVI Connector
  • 3 x Samtec Low Speed CRUVI Connectors
  • 1 x Pmod SMD (2 x 6) Connector
  • 1 x SMD Header (1 x 6)
  • 1 x RJ45 LAN Socket
  • 1 x Micro USB2.0 Connector


• Power
  • 5V Input Power Supply


• Dimension
  • 70 x 115 mm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TEMB0005-02 Trenz Electronic Carrier Board for Module TEM0005
• 8 x screws
• 4 x bolts

追加情報

• Manufacturer&lquot;s article number: TEMB0005-02
• Trenz Electronic TEMB0005 Wiki
• Support Forum
