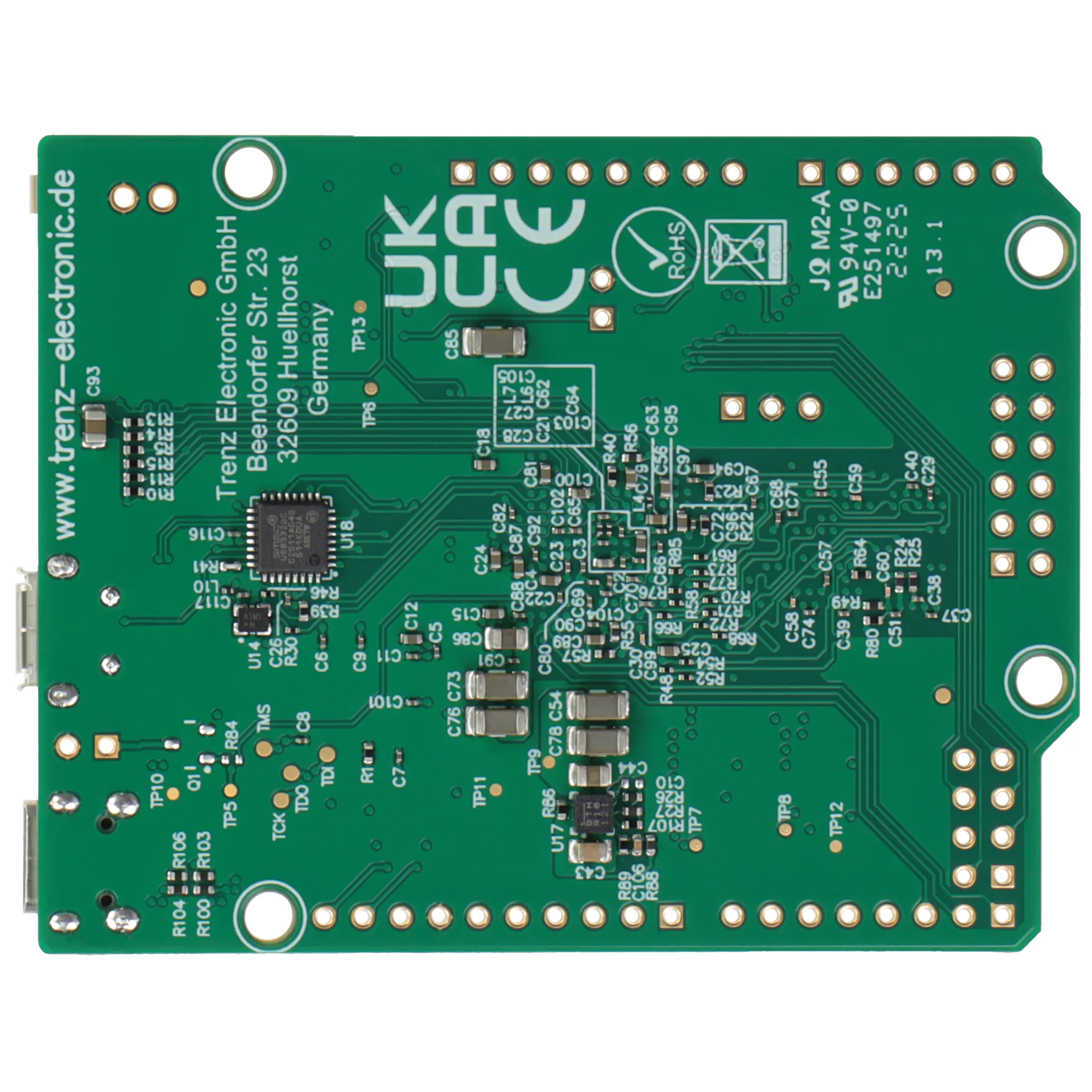

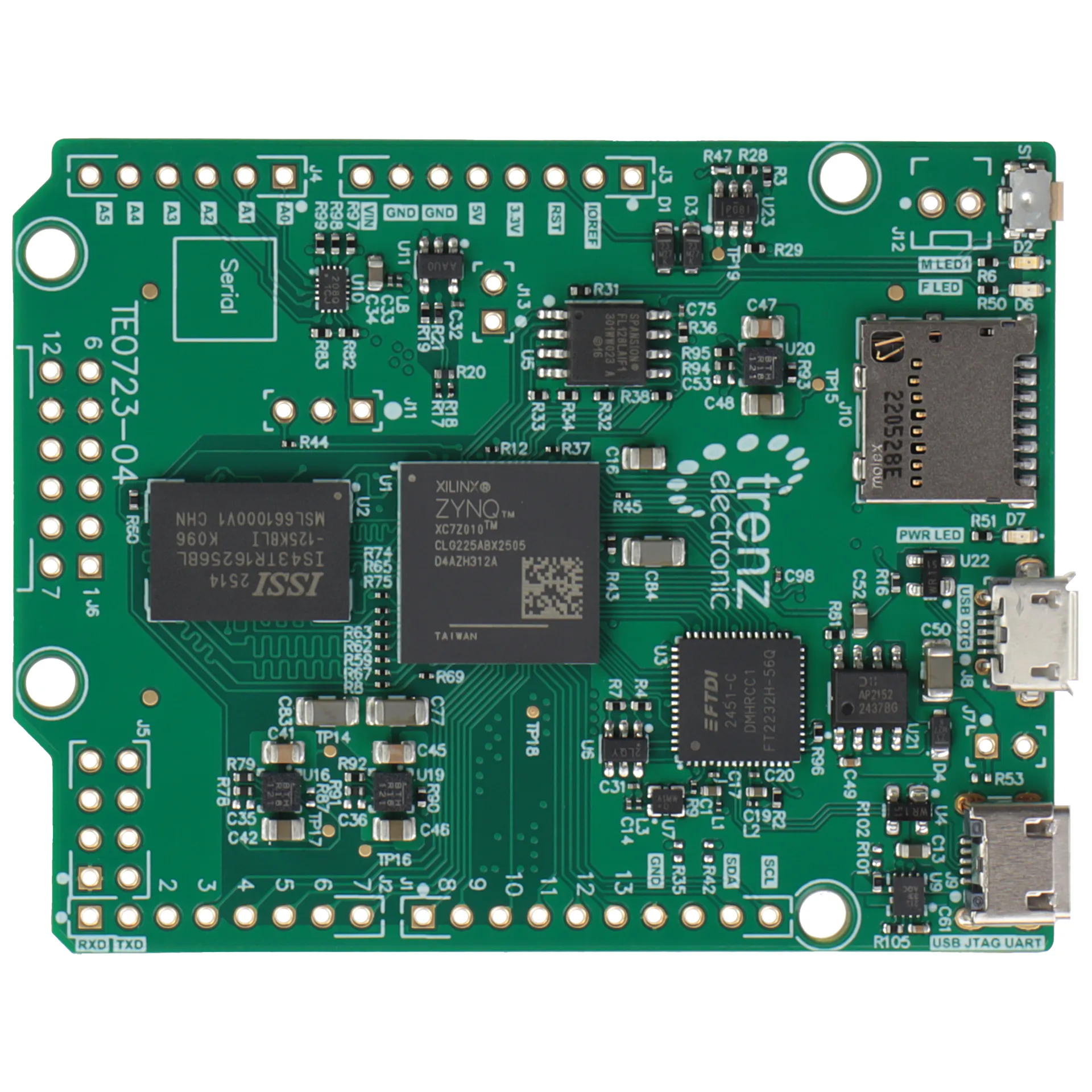

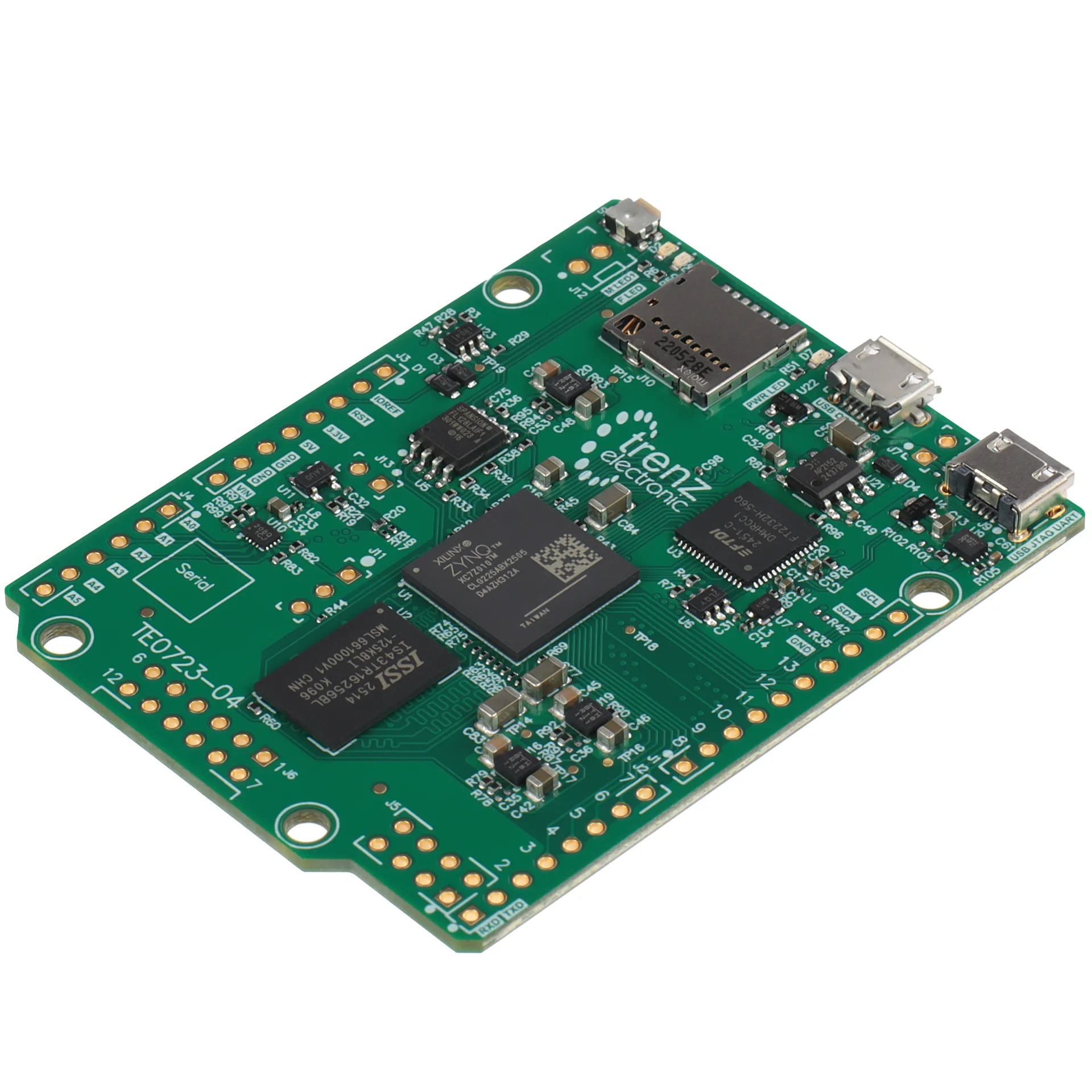

特徴

• SoC / FPGA
  • Device: AMD Zynq™ XC7Z010-1CLG225C
  • Speedgrade: -1
  • Temperature range: Commercial
  • Package: CLG225

• RAM / Storage
  • 512 MByte DDR3L SDRAM
  • 16 MByte QSPI Flash
  • Micro SD card socket

• IO Resources
  • 7 ADC multiplexed inputs (shared with IO)
  • 31 PL IO (shared with ADC)
  • 4 MIO

• On Board Periphery
  • USB 2.0 PHY, OTG micro USB Type A/B connector
  • FTDI USB/JTAG/UART bridge
  • 52 MHz Clock source (PS)
  • Supported extensions:
    • Arduino UNO shield
    • Single PMOD
  • 2 User LEDs
  • Power LED
  • Reset push button

• Power
  • Single 5V power input via USB or pin-header
  • 3.3V and 5V output

• Dimension
  • Arduino UNO form factor
  • 50.8 mm x 53.34 mm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

追加情報

• Manufacturer&lquot;s article number: TE0723-04-41C68-A
• Trenz Electronic TE0723 Wiki
• Hackaday Project "Arduino Compatible Zynq™ Shield"
• Support Forum
