特徴

• SoC/FPGA
  • Device: AMD Zynq™ UltraScale+™ XCZU3EG-1SFVC784I
  • Speedgrade: -1
  • Temperature range: Industrial
  • Package: SFVC784

• RAM/Storage
  • 2 GByte DDR4 SDRAM
  • 2 x 64 MByte SPI Boot Flash (dual parallel)
  • 8 GByte e.MMC memory
  • 2 Kbit MAC Adress serial EEPROM with EUI-48 Node Identity

• On Board
  • Lattice MachXO2 CPLD
  • Programmable Quad Clock Generator
  • Hi-speed USB2 ULPI Transceiver
  • 4 x LEDs

• Interface
  • 1 Gbps RGMII Ethernet interface
  • Hi-speed USB2 ULPI transceiver with full OTG support
  • 34 x High Performance (HP) und 96 x High Density PL I/Os
  • 4 x serial PS GTR transceivers
    • PCI Express interface
    • SATA 3.1 interface

    • DisplayPort interface with video resolution up to 4k x 2k

    • 2 x USB 3.0 specification compliant interface implementing a 5 Gbit/s line rate

• Power
  • All power regulators on board

• Dimension
  • 4 x 5 cm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

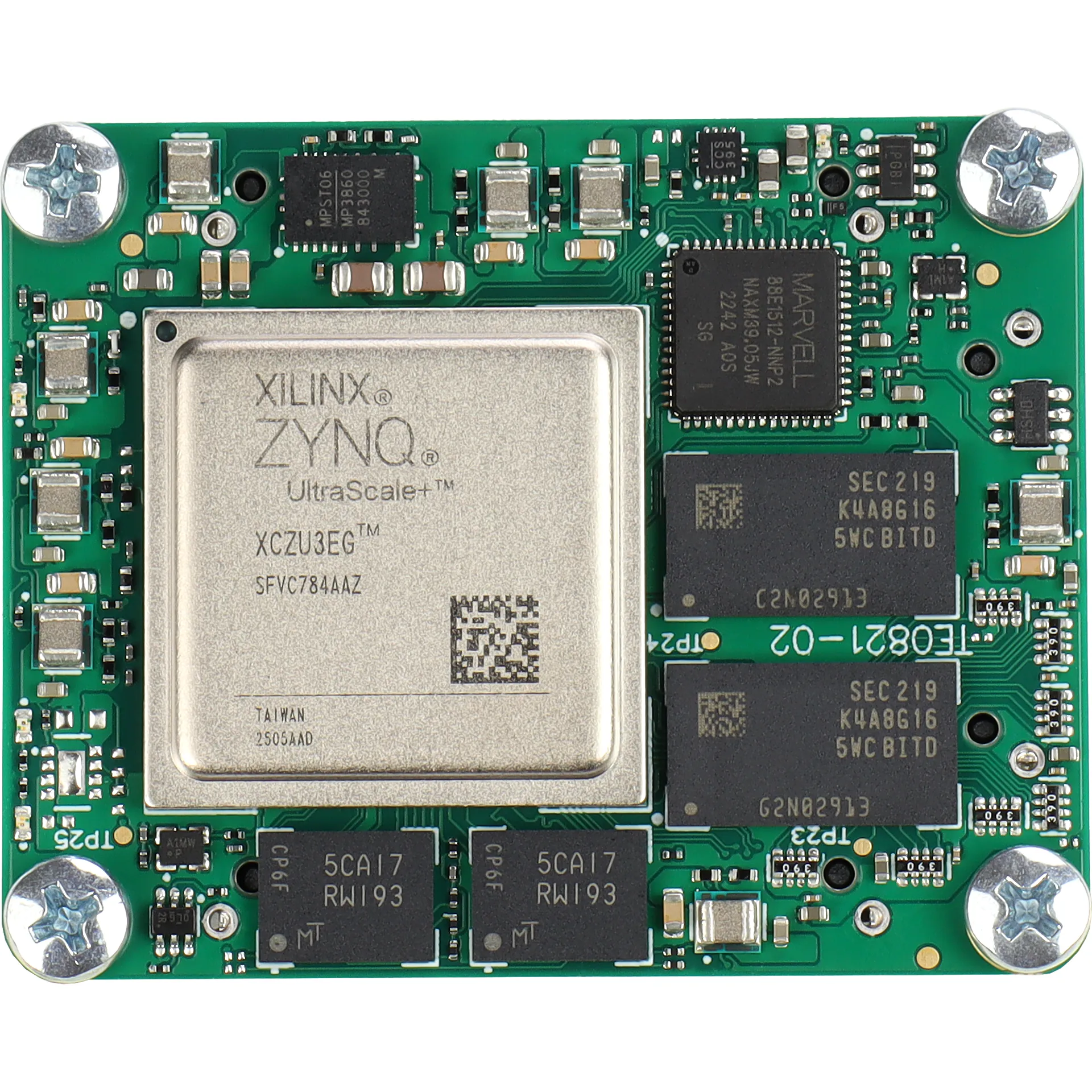

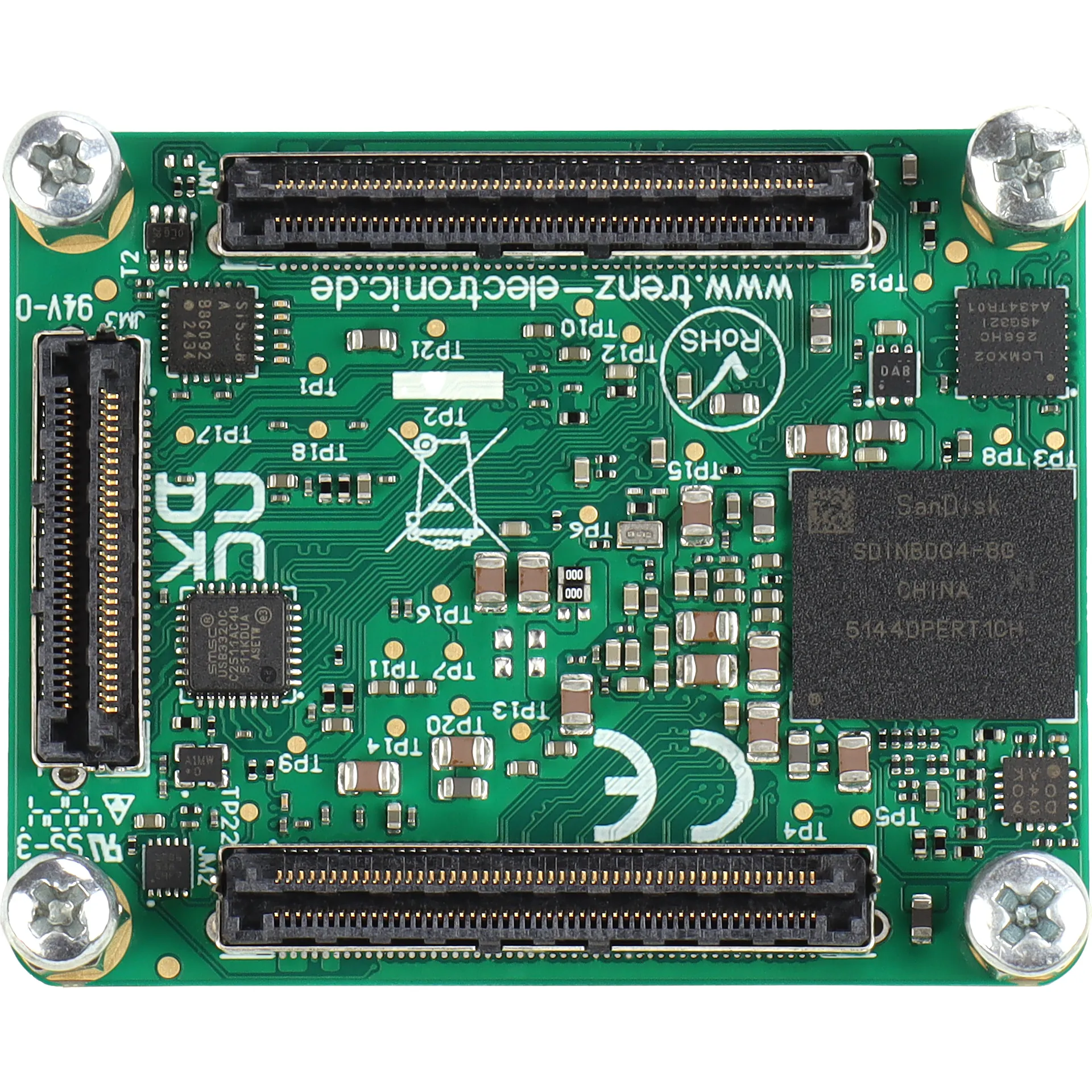

• 1 x TE0821-02-3BI81MA Trenz Electronic MPSoC module with AMD Zynq™ UltraScale+™ ZU3EG
• 8 x screws
• 4 x bolts

追加情報

• Manufacturer&lquot;s article number: TE0821-02-3BI81MA
• Trenz Electronic TE0821 Wiki
• Samtec LSHM Razor Beam, High-Speed Hermaphroditic Terminal/Socket Strips, regular 4 mm,
  overview, compatibility, mating heights and speed rating: Wiki, mounted on every 4 x 5 cm module of Trenz Electronic
• Support Forum
