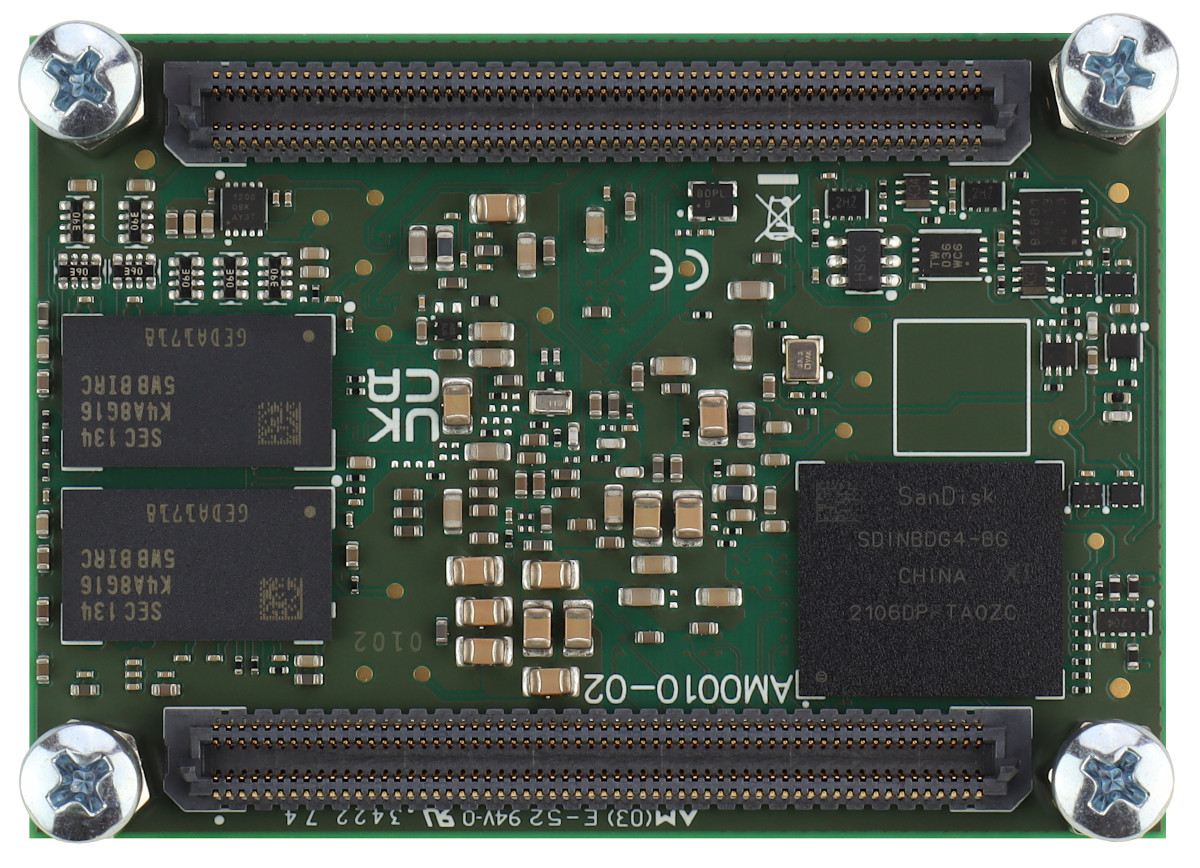

AM0010-02-2AE51MA

特徴

  • SoC
    • Device: AMD Zynq™ UltraScale+™ XCZU2CG-1SFVC784E
    • Engine: CG
    • Speedgrade: -1
    • Temperature Range: Extended
    • Package: SFVC784
  • RAM/Storage
    • 4 GByte DDR4 SDRAM with ECC
    • 8 GByte eMMC
    • 2 x 64 MByte Serial Flash
    • EEPROM with MAC address
  • On Board
    • Gigabit Ethernet Transceiver
    • USB Transceiver
    • OPTIGA Trust M
    • CryptoAuthentication
    • Oscillator
    • Analog Multiplexer
  • Interface
    • 2 x B2B Connector (ADM6)
      • up to 204 PL IO
      • up to 22 PS MIO
      • 4 GTR
      • 4 GTH (only ZU4 and ZU5)
      • ETH, USB, I2C, JTAG, ...

  • Power
    • 5 V ... 12 V power supply via B2B Connector needed

  • Dimension
    • 40 x 56,4 mm

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

  • 1 x AM0010-02-2AE51MA Trenz Electronic MPSoC module with AMD Zynq™ UltraScale+™ ZU2CG
  • 8 x screws
  • 4 x bolts

追加情報


リンク

製品名価格
AM0010-02-2AE51MA91,800カートに入れる
