The predecessor of this article is TE0807-02-7DI24-A. All changes are in the Product Change Notification (PCN).

This module will not be discontinued, but we recommend the TE0817 module series with an improved connector for new projects.

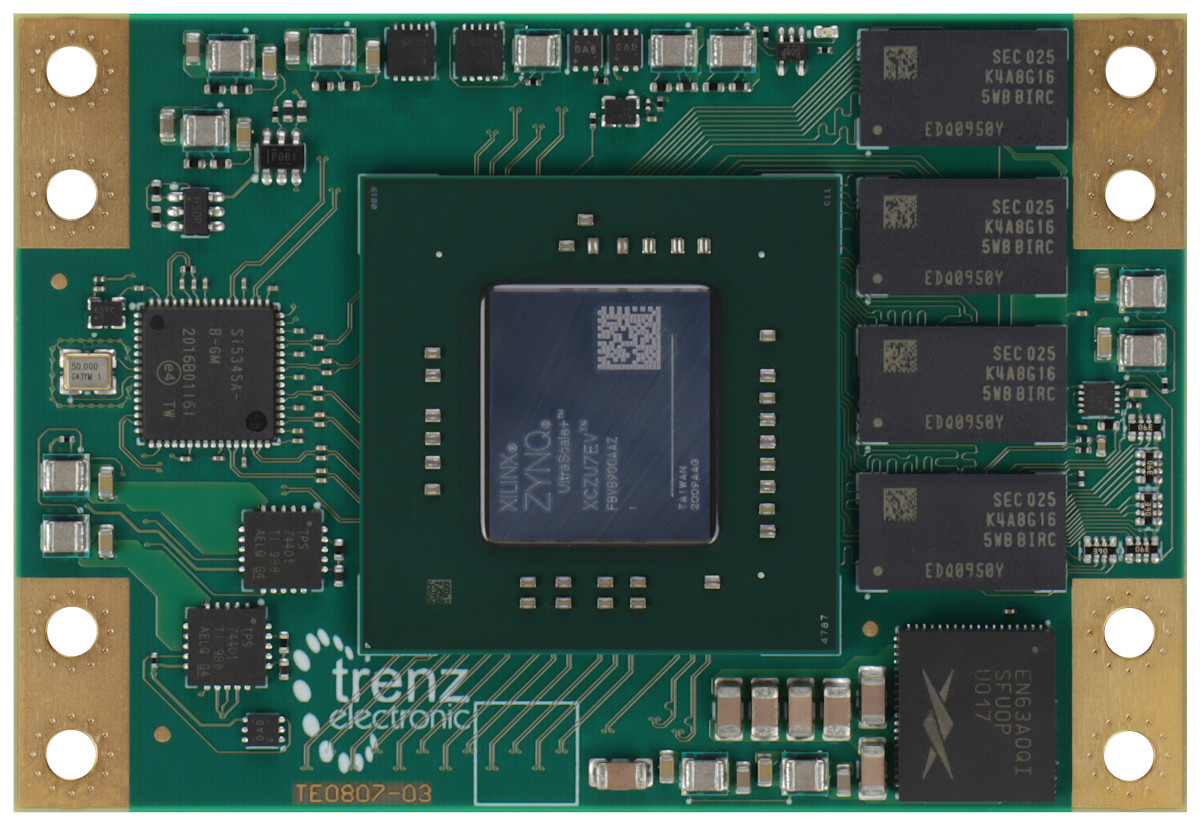

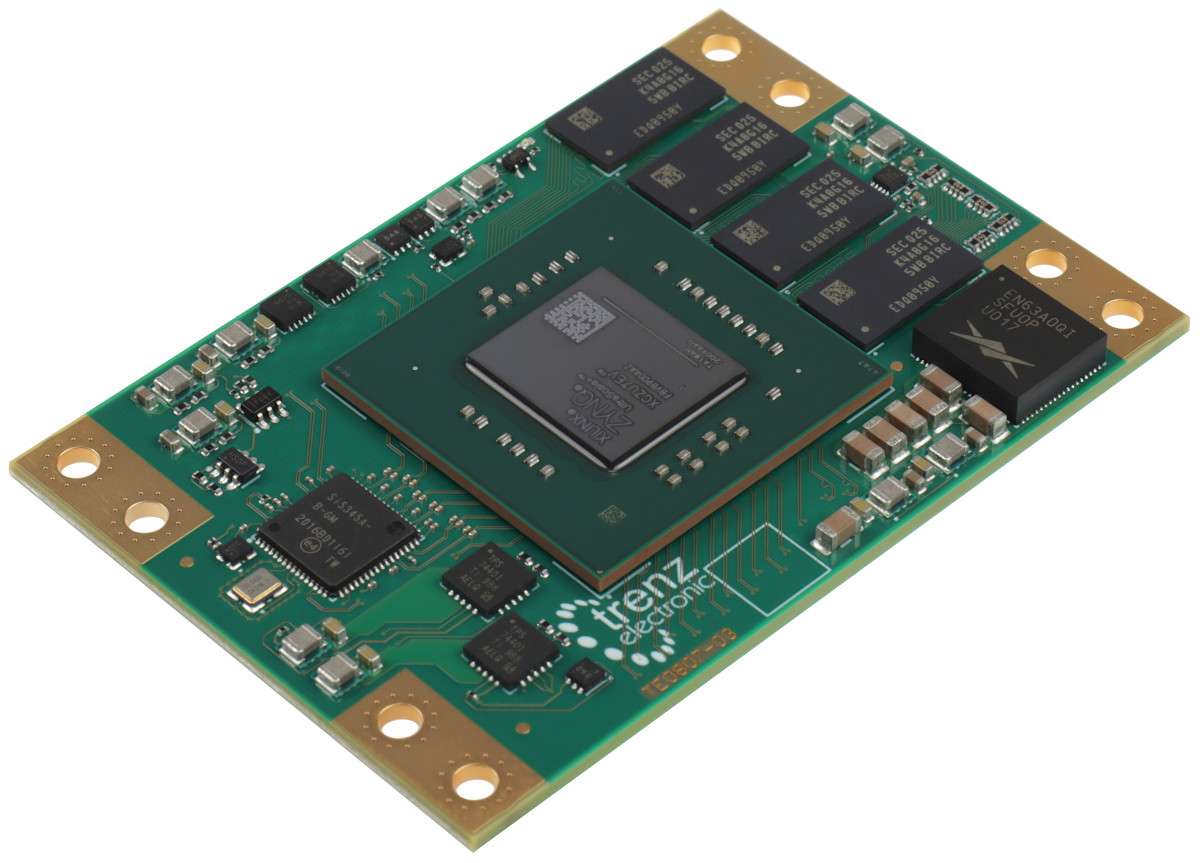

The Trenz Electronic TE0807-03-7DI24-A is a powerful MPSoC module integrating a AMD Zynq™ UltraScale+™ ZU7EV, 4 GByte DDR4 SDRAM, 512 MByte Flash memory for configuration and operation, 20 x high speed serial transceivers, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O&lquot;s is provided via rugged high-speed stacking connections.

All this on a tiny footprint of 5.2 x 7.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.

All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• AMD Zynq™ UltraScale+™ XCZU7EV-1FBVB900I
• ZU7EV 900 Pin Packages
• 3 mm mounting holes for skyline heat spreader
• Size: 52 x 76 mm

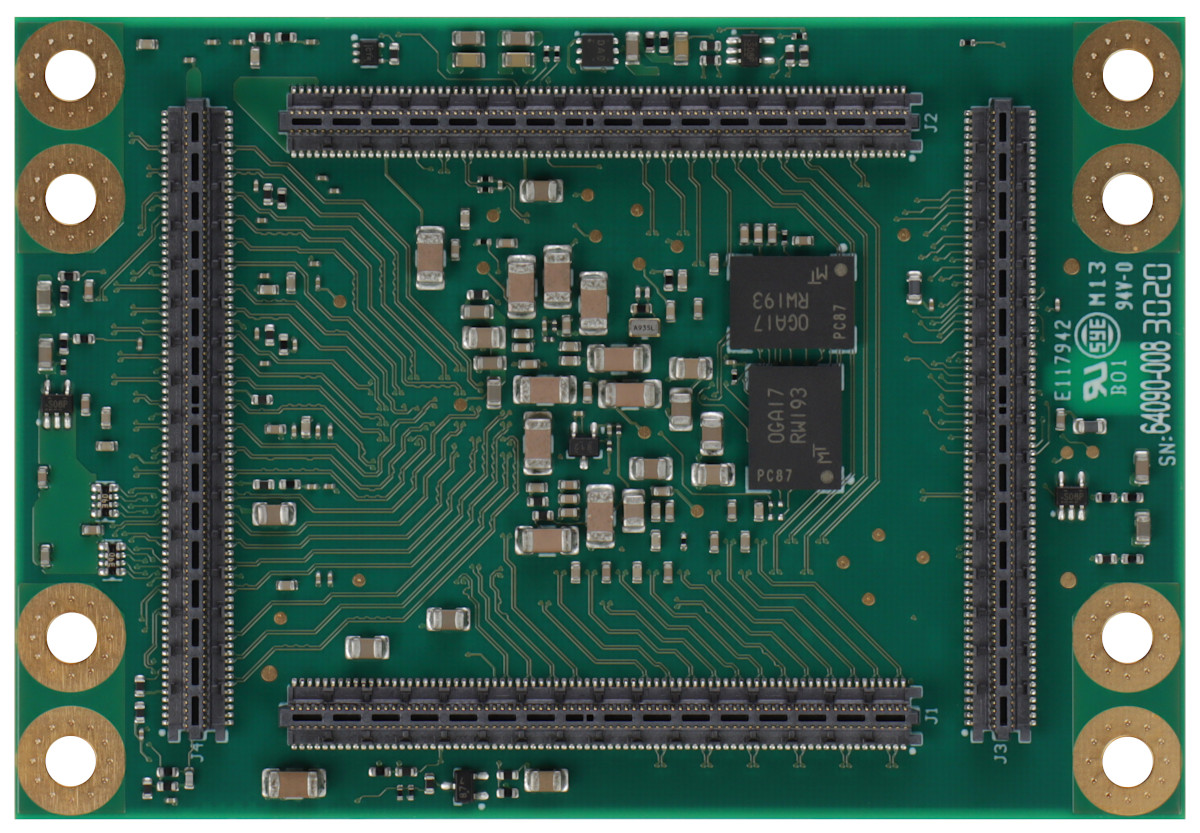

• B2B Connectors: 4 x 160 pin
• Rugged for shock and high vibration
• 4 GByte DDR4 SDRAM
• 512 MByte SPI Boot Flash (dual parallel)
• User I/Os
  • 65 x PS MIOs, 48 x PL HD GPIOs, 156 x PL HP GIPIOs (3 banks)
  • Serial transceivers: 4 x PS-GTR, 16 x PL-GTH
  • Transceiver clocks inputs and outputs
  • PLL clock generator inputs and outputs
• Graphic Processing Unit (GPU) + Video codec unit (VCU)
• Si5345 - 10 output PLL
• All power supplies on board, single 3.3V Power required
  • 14 on-board DC/DC regulators and 13 LDOs
  • LP, FP, PL separately controlled power domains
• Support for all boot modes (except NAND)
• Support for any combination of PS connected peripherals
• Evenly spread supply pins for good signal integrity

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TE0807-03-7DI24-A Trenz Electronic MPSoC Module with AMD Zynq™ UltraScale+™ ZU07EV

追加情報

• Manufacturer&lquot;s article number: TE0807-03-7DI24-A
• Trenz Electronic TE0807 Wiki
• Support Forum
