This product is offered at a discount and is valid while stocks last!
____________________________________________________

Note: Carrier without pads for conduction cooling!

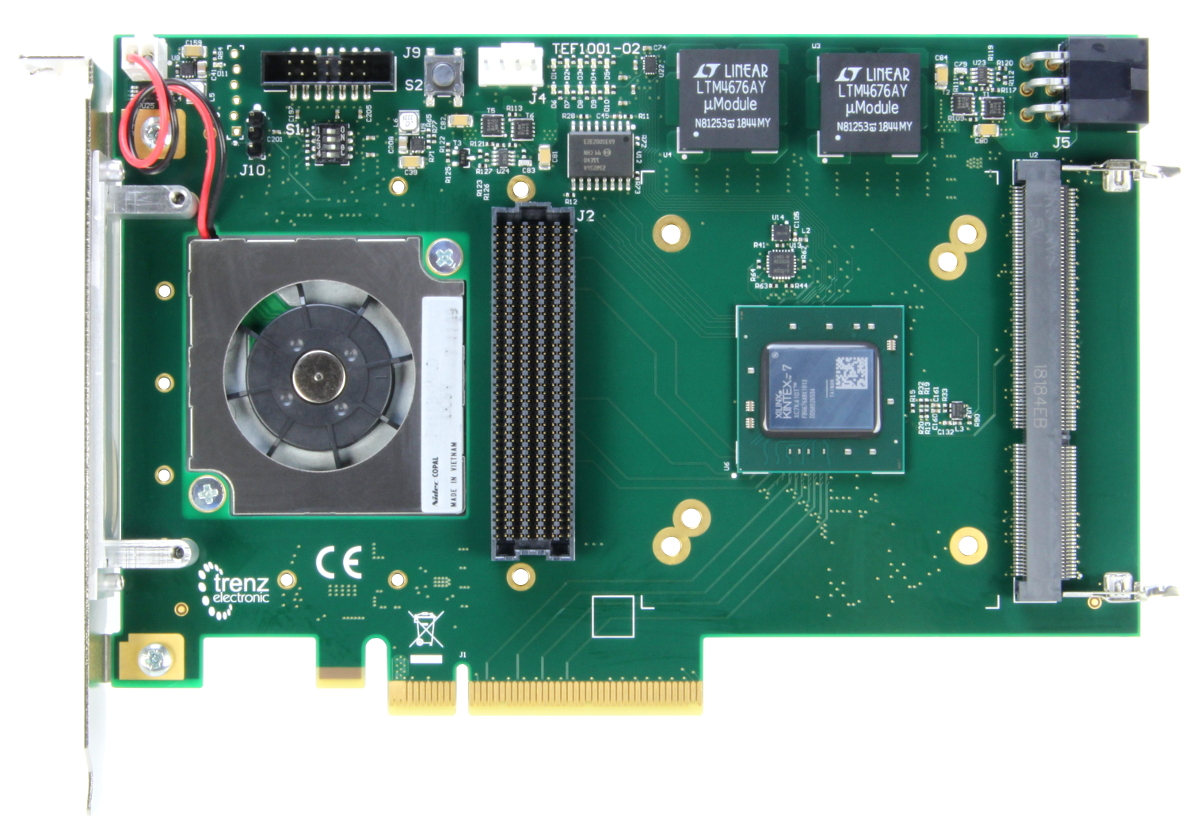

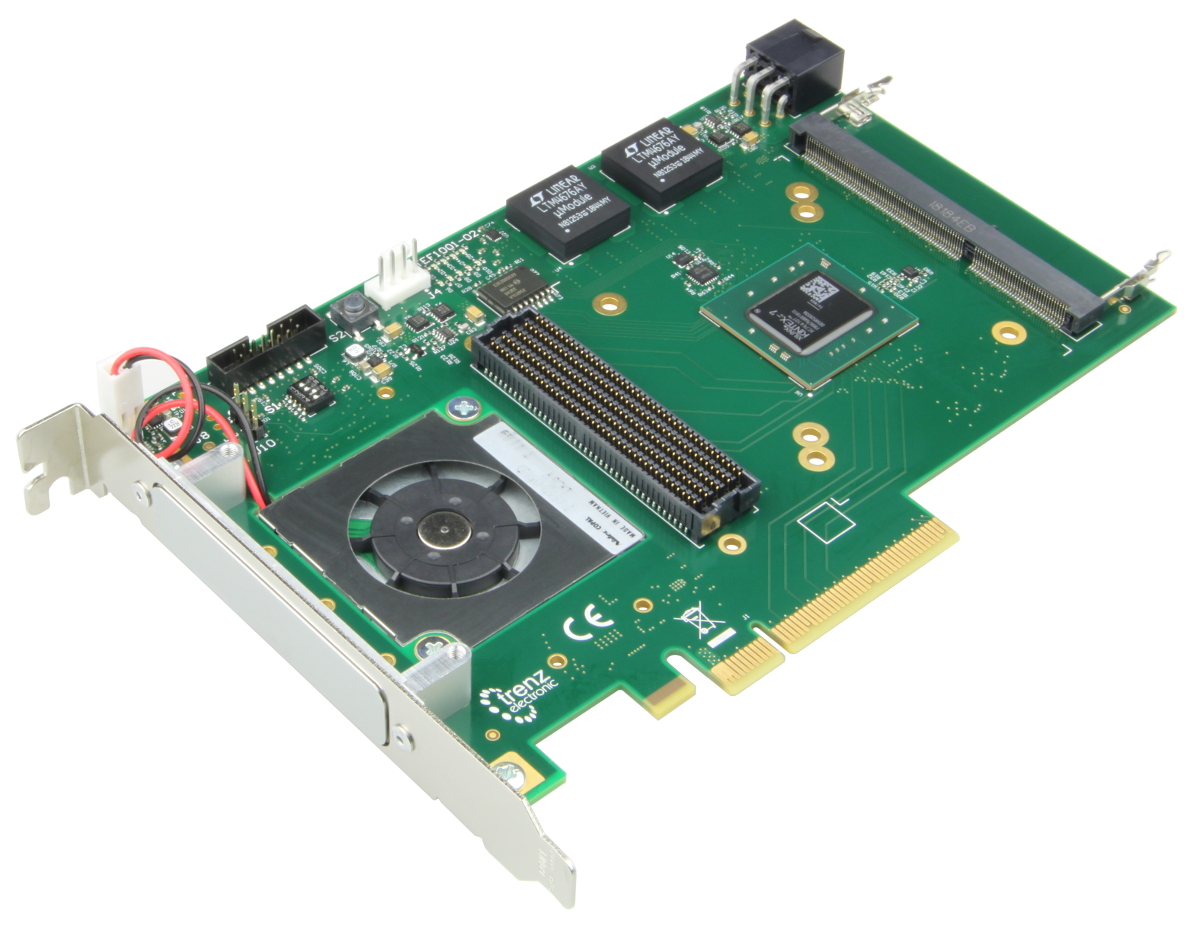

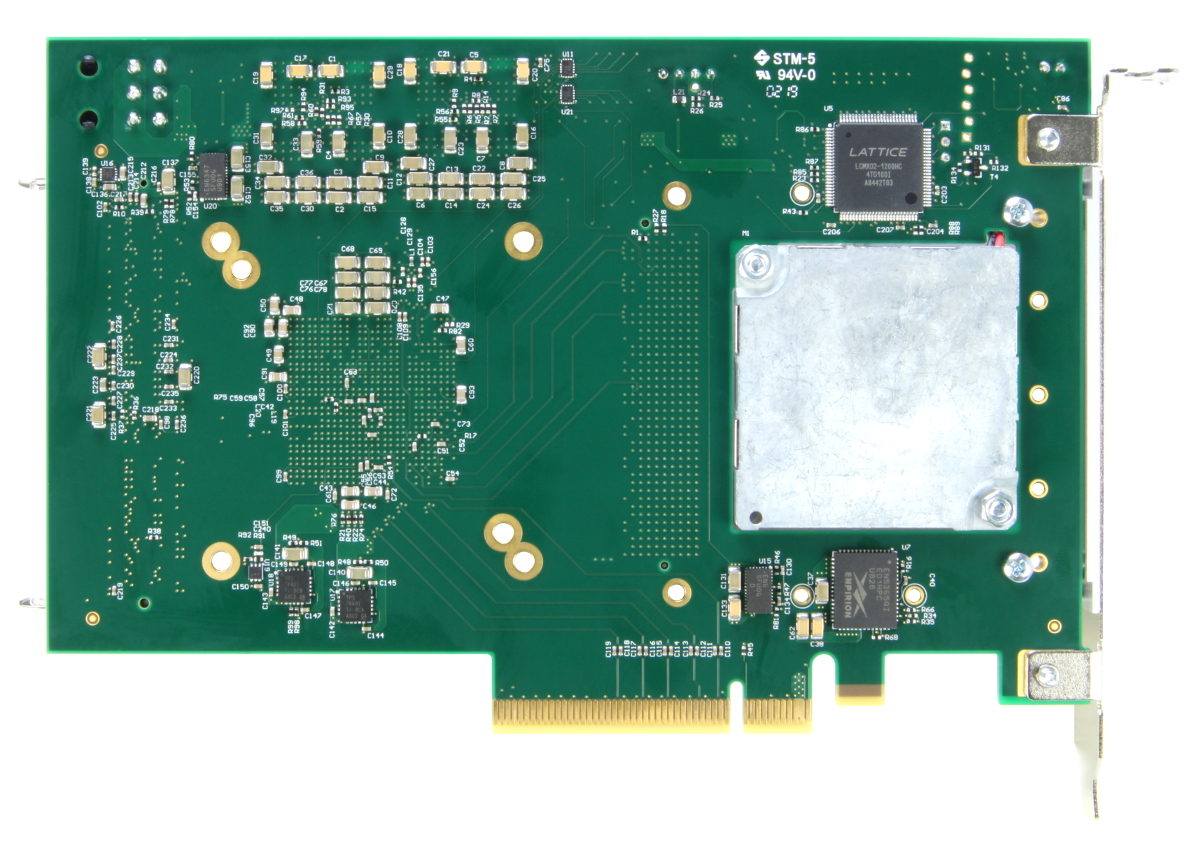

The Trenz Electronic TEF1001-02-410-2IC is a PCIe FMC Carrier integrating a Xilinx Kintex-7 410T FPGA, 32 MByte SPI Flash, a 4 lane PCIe and a DDR3 SODIMM with ECC Socket.

It can also be equipped with Kintex-7 160T or K325T, please ask for minimum quantities.

All parts are at least industrial temperature range of -40°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• Xilinx Kintex-7 XC7K410T-2FBG676I
• 1 x Vita 57.1 FMC HPC Slot
• 4 lane PCIe Gen2

• DDR3 SODIMM with ECC Socket (max. 8 GByte)

• 32 MByte SPI Flash

• Programmable clock generator Si5338

• 200 MHz Low-Jitter LVDS oscillator

• 12V power input protection circuit

• 12V power input through PCIe connector edge available (with priority to the ATX input power connector)

• FMC FAN on/off controlled by a pin-present on FMC

• High performance DC-DC converters

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x  TEF1001-02-410-2IC Trenz Electronic PCIe FMC Carrier with Xilinx Kintex-7 410T FPGA

追加情報

• Manufacturer&lquot;s article name: TEF1001-02-410-2IC
• Trenz Electronic TEF1001 Wiki
• Support Forum
