特徴

• SoC/FPGA
  • Device: AMD Zynq™ UltraScale+™ XCZU6EG-1FFVC900E
  • Speedgrade: -1
  • Temperature range: Extended
  • Package: FFVC900
  • Grafikprozessor-Unit (GPU)

• RAM/Storage
  • 4 GByte DDR4 SDRAM
  • 128 MByte SPI Boot Flash (dual parallel)
  • 2 Kbit serial EEPROM with EUI-48 Node Identity

• On Board
  • Oscillator
  • Programmable 10-channel PLL clock generator

• Interface
  • Plug-on module with 4 x 240 pin B2B connectors (ADM6)
    • 204 PL IO
      • HP: 156
      • HD: 48

    • 65 PS MIO

    • 4 PS GTR
    • 16 PL GTH
    • I2C, JTAG
  • 2 Transceiver clocks
  • PLL Clock Generator
  • LP, FP, PL separately controlled power domains

• Power
  • 14 on-board DC/DC regulators and 13 LDOs, Single Supply

• Dimension
  • 5.2 x 7.6 cm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

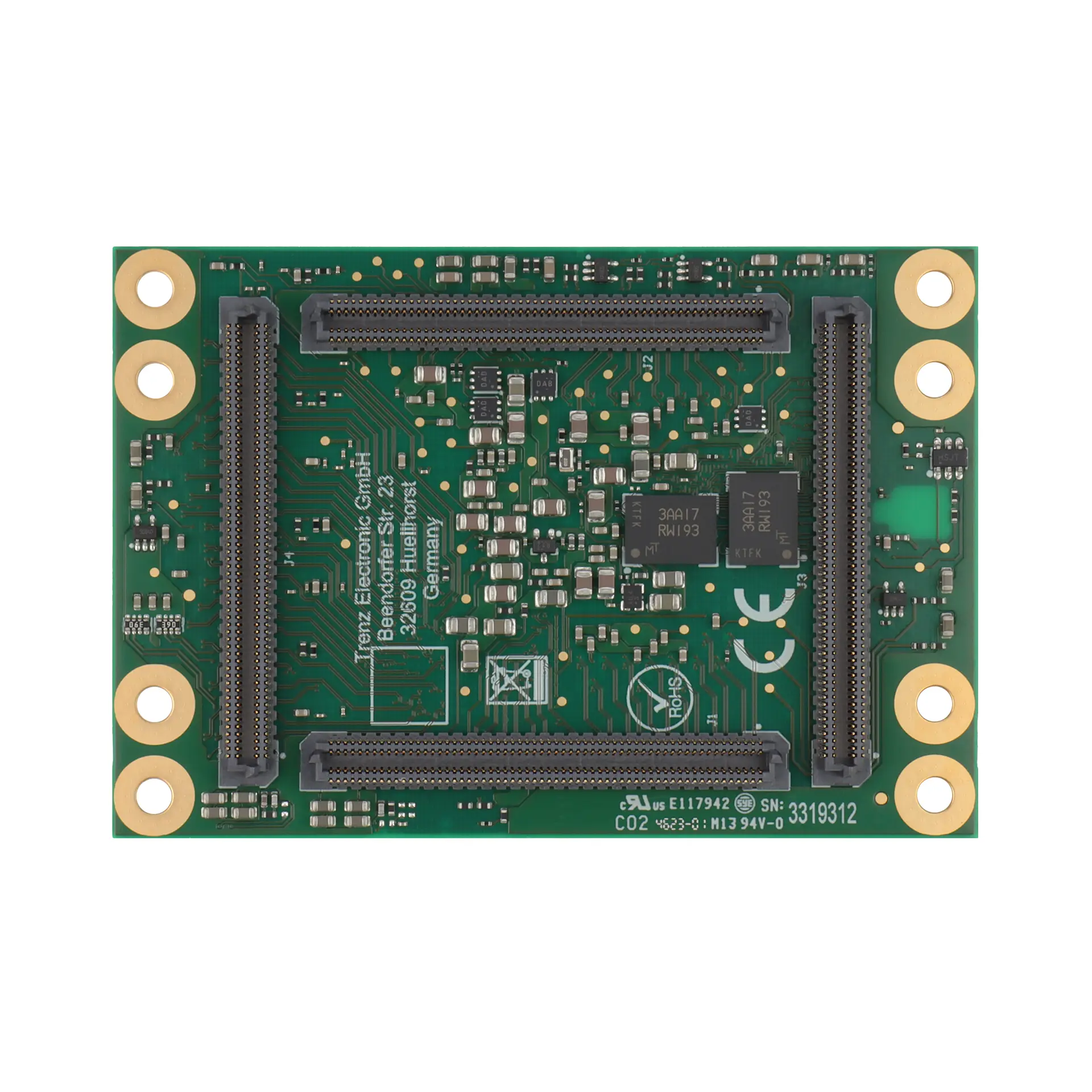

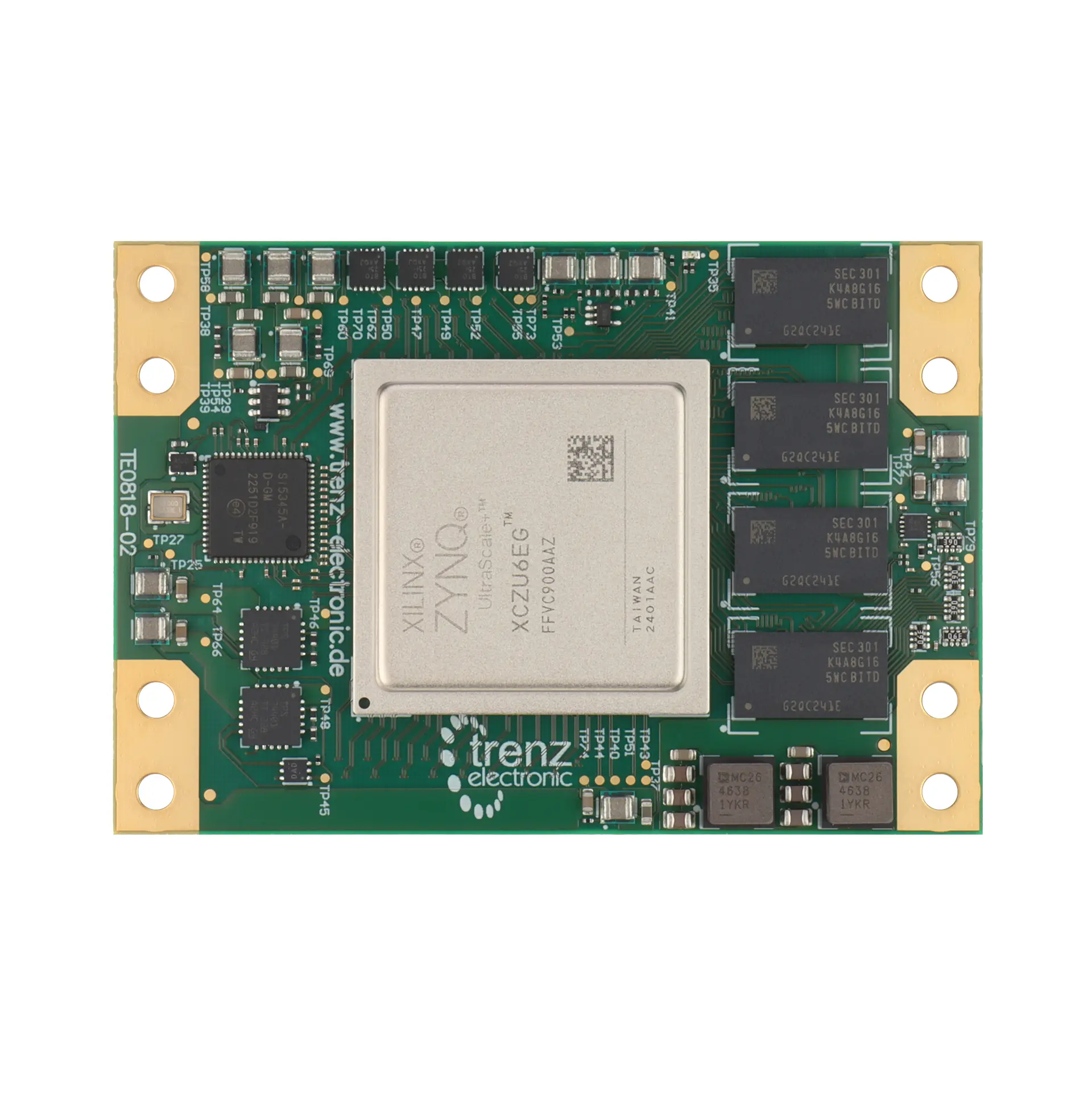

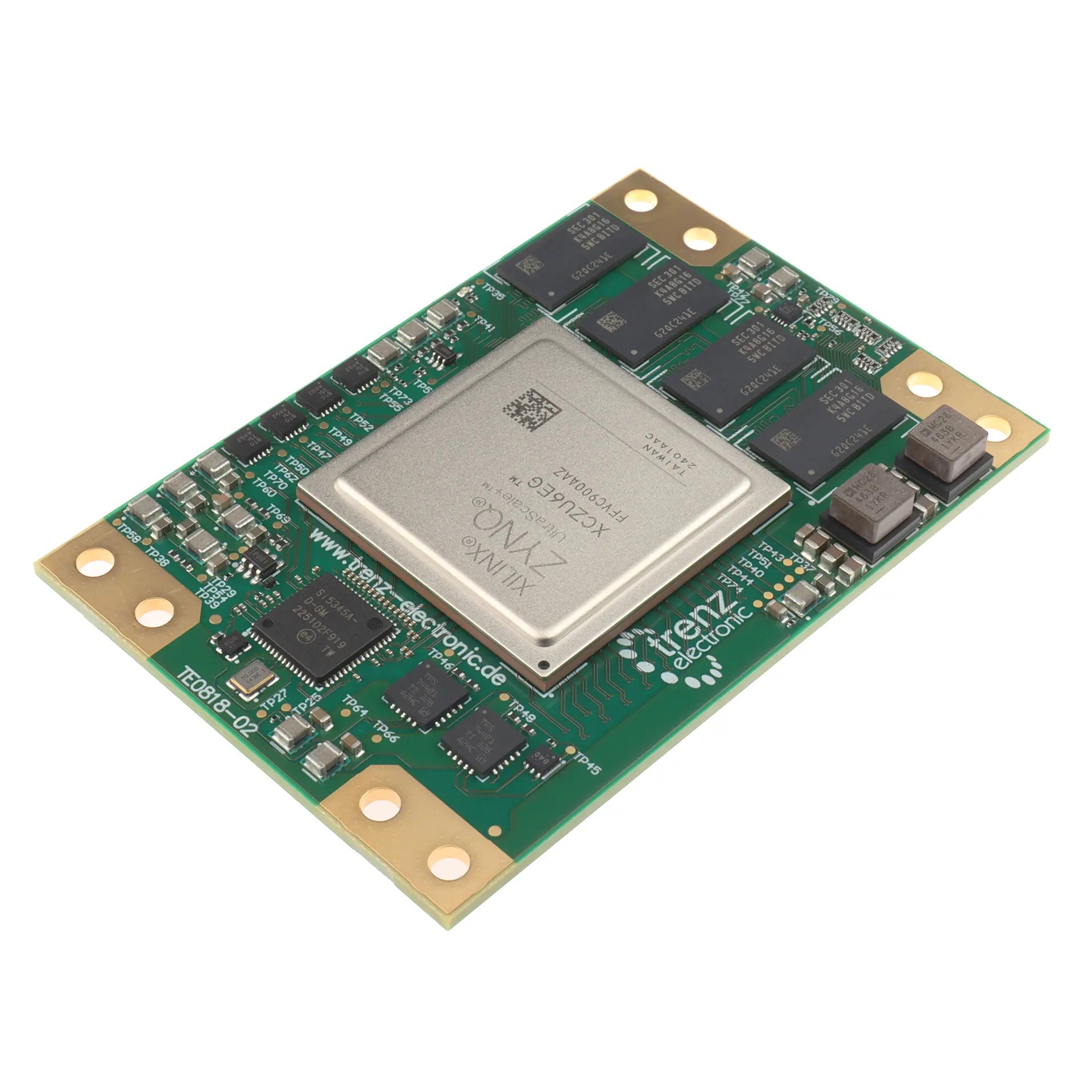

• 1 x TE0818-02-6BE61-A Trenz Electronic MPSoC Module with AMD Zynq™ UltraScale+™ ZU6EG

追加情報

• Manufacturer&lquot;s article number: TE0818-02-6BE61-A
• Trenz Electronic TE0818 Wiki
• Support Forum

リンク

• オンラインドキュメント
• テクニカルリファレンスマニュアル
• 回路図
• メーカーサイト
