TE0720-04-61C33RA
特徴
- AMD Zynq™ XC7Z020-1CLG484C
- Rugged for high shock and vibration
- ARM dual-core Cortex-A9 MPCore
- 10/100/1000 tri-speed Gigabit Ethernet transceiver (PHY), SGMII accessible on a board-to-board connector
- USB 2.0 high speed ULPI transceiver
- 1 GByte (32-bit) DDR3L SDRAM
- 32 MByte QSPI Flash memory (for configuration and operation)
- 8 GByte e.MMC (optional up to 32 GByte)
- Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
- 152 FPGA I/O&lquot;s (75 LVDS pairs possible) and 14 MIO&lquot;s available on board-to-board connectors
- On-board high-efficiency DC-DC converters
- 4.0 A x 1.0V power rail
- 3.0 A x 1.5V power rail
- 3.0 A x 1.8V power rail
- System management and power sequencing
- eFUSE bit-stream encryption
- AES bit-stream encryption
- Valid MAC Address and 2K serial EEPROM
- SHA-256 authentication chip with unique serial number
- RTC, temperature compensated
- 3 user LEDs
- Evenly-spread supply pins for good signal integrity
Other assembly options for cost or performance optimization plus high volume prices available on request.
Depending on the customer design, additional cooling might be required.納品物

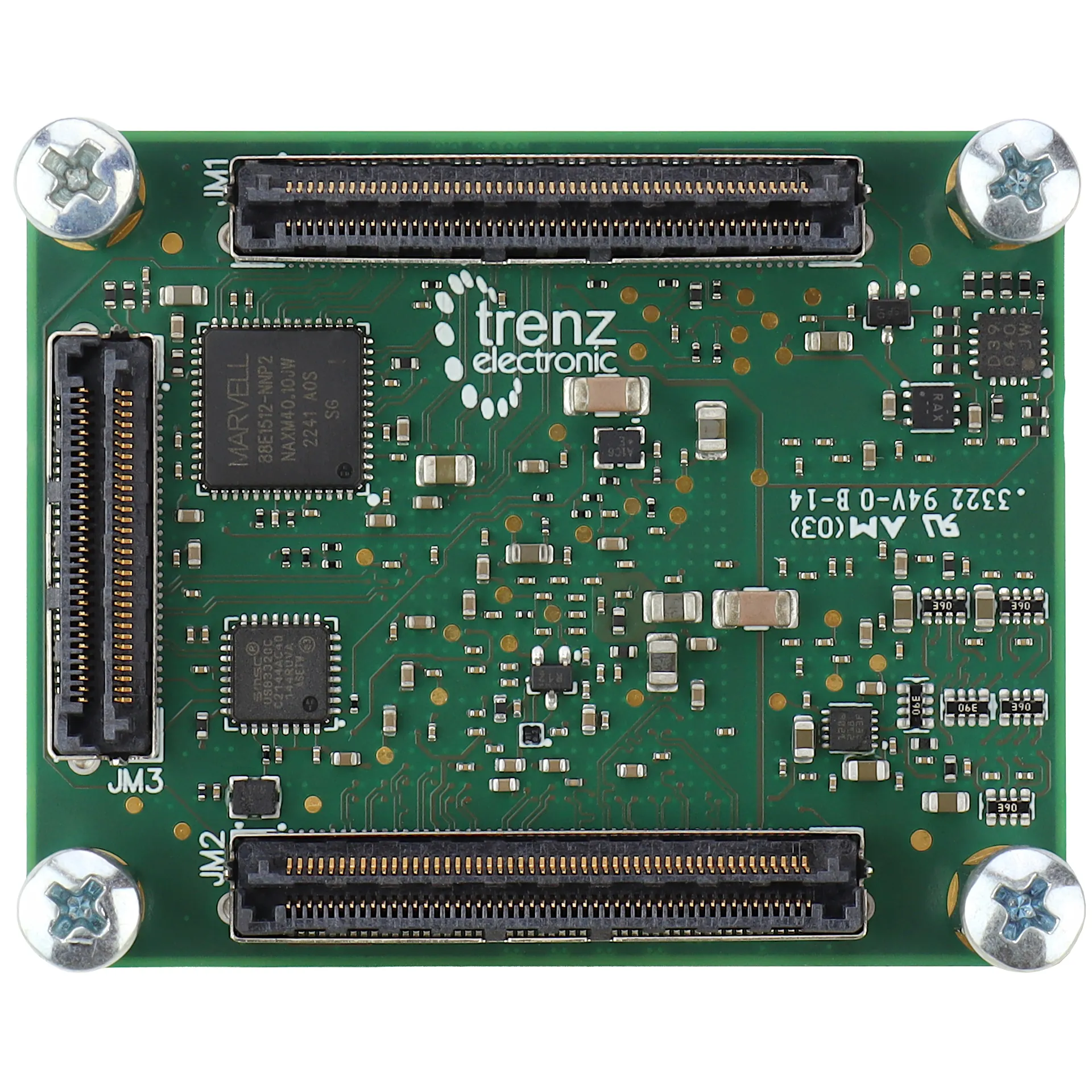

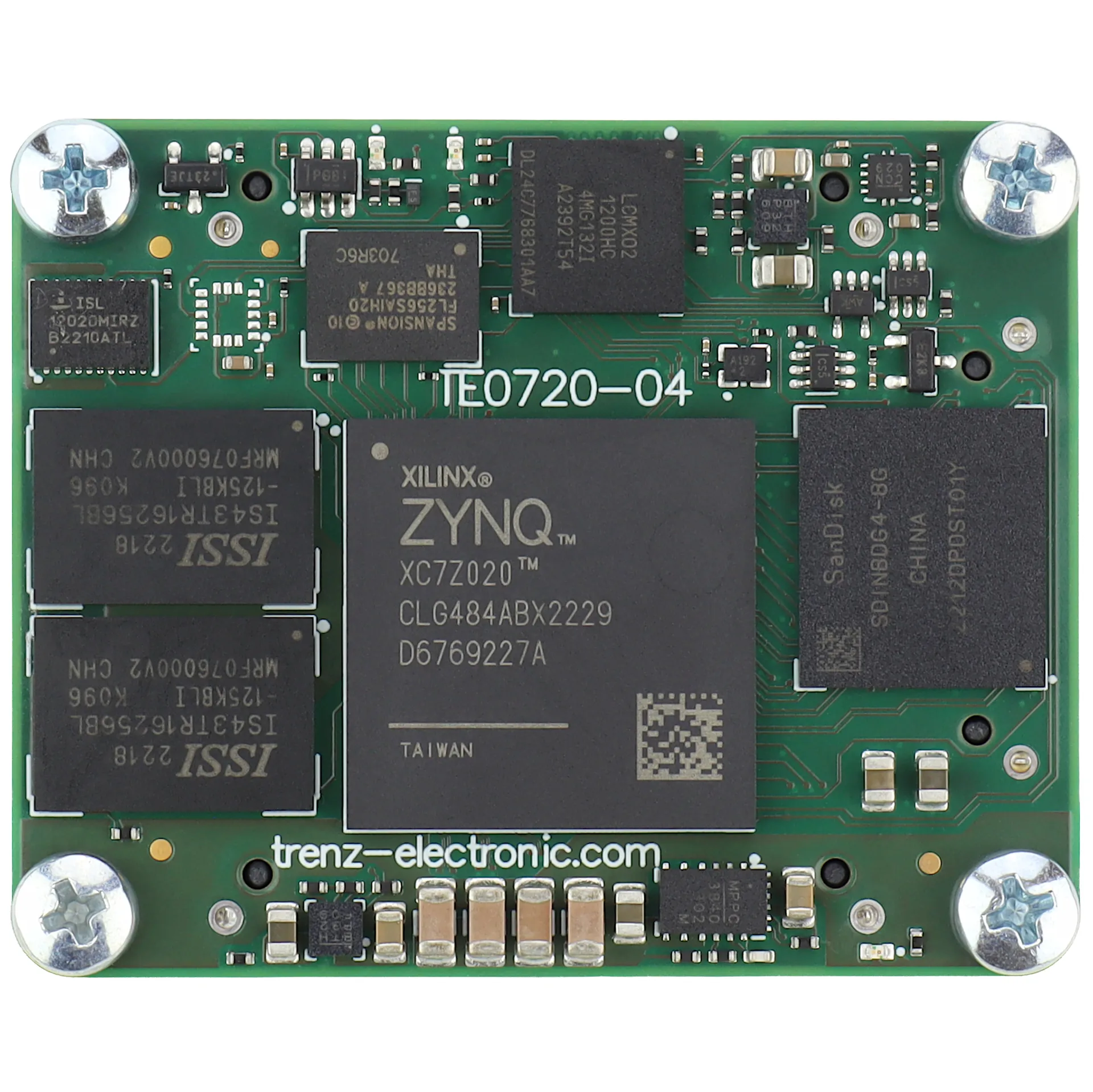

- 1 x TE0720-04-61C33RA Trenz Electronic 4 x 5 cm SoC module with AMD Zynq™ 7020
- 8 x screws
- 4 x bolts
追加情報
- Manufacturer&lquot;s article number: TE0720-04-61C33RA
- Trenz Electronic TE0720 Wiki
- Samtec LSHM Razor Beam, High-Speed Hermaphroditic Terminal/Socket Strips, regular 4 mm,
overview, compatibility, mating heights and speed rating: Wiki, mounted on every 4 x 5 cm module of Trenz Electronic - Support Forum
リンク
| 製品名 | 価格 | |
|---|---|---|
| TE0720-04-61C33RA | 58,800 | カートに入れる |
