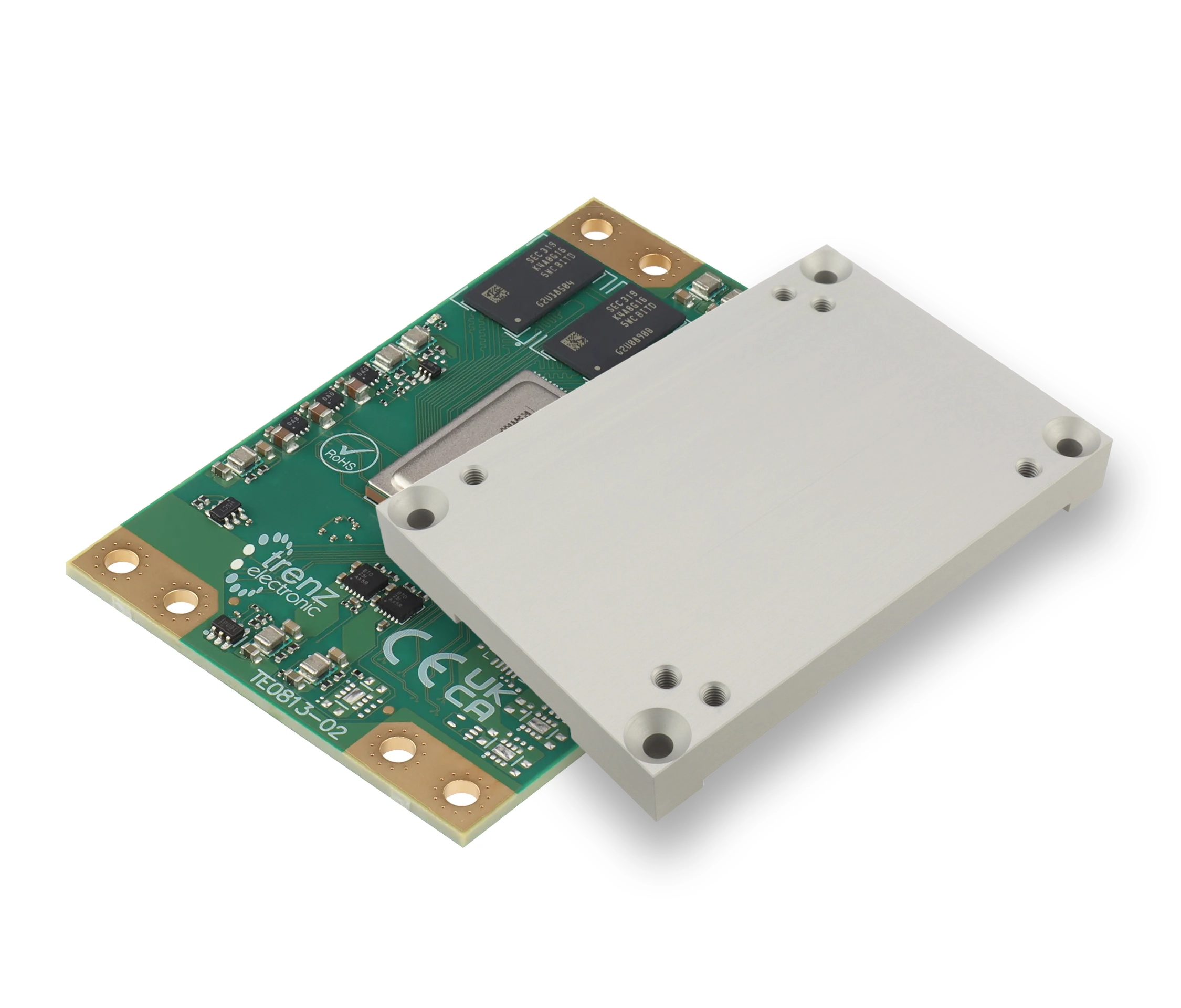

This module is a TE0813-02-4BE81-A with mounted heat spreader.

All changes are in the Product Change Notification (PCN).

The TE0813 is largely identical in construction to the TE0803. The essential difference are new Samtec BGA connectors, which guarantees a reliable contact. The dimensions are identical.

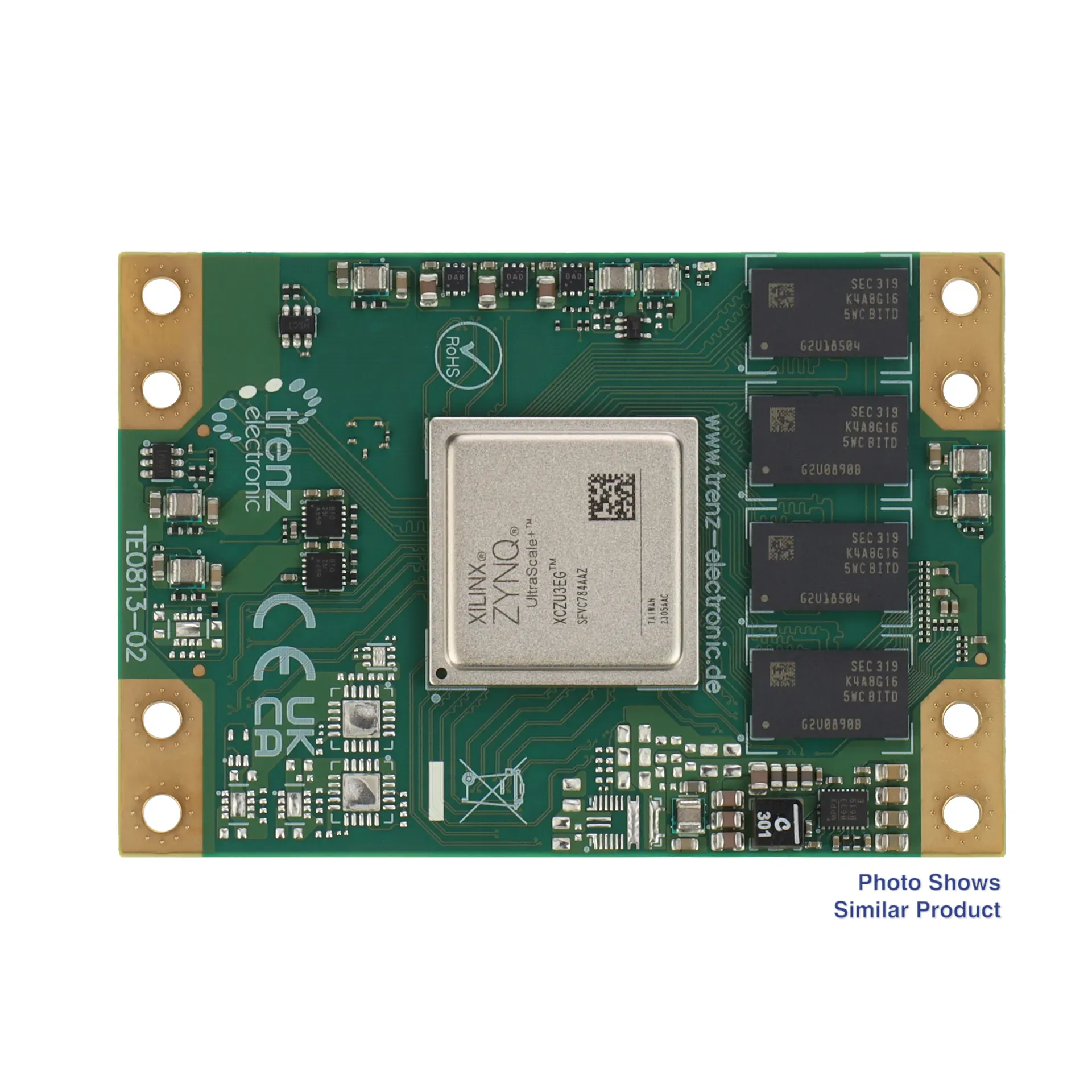

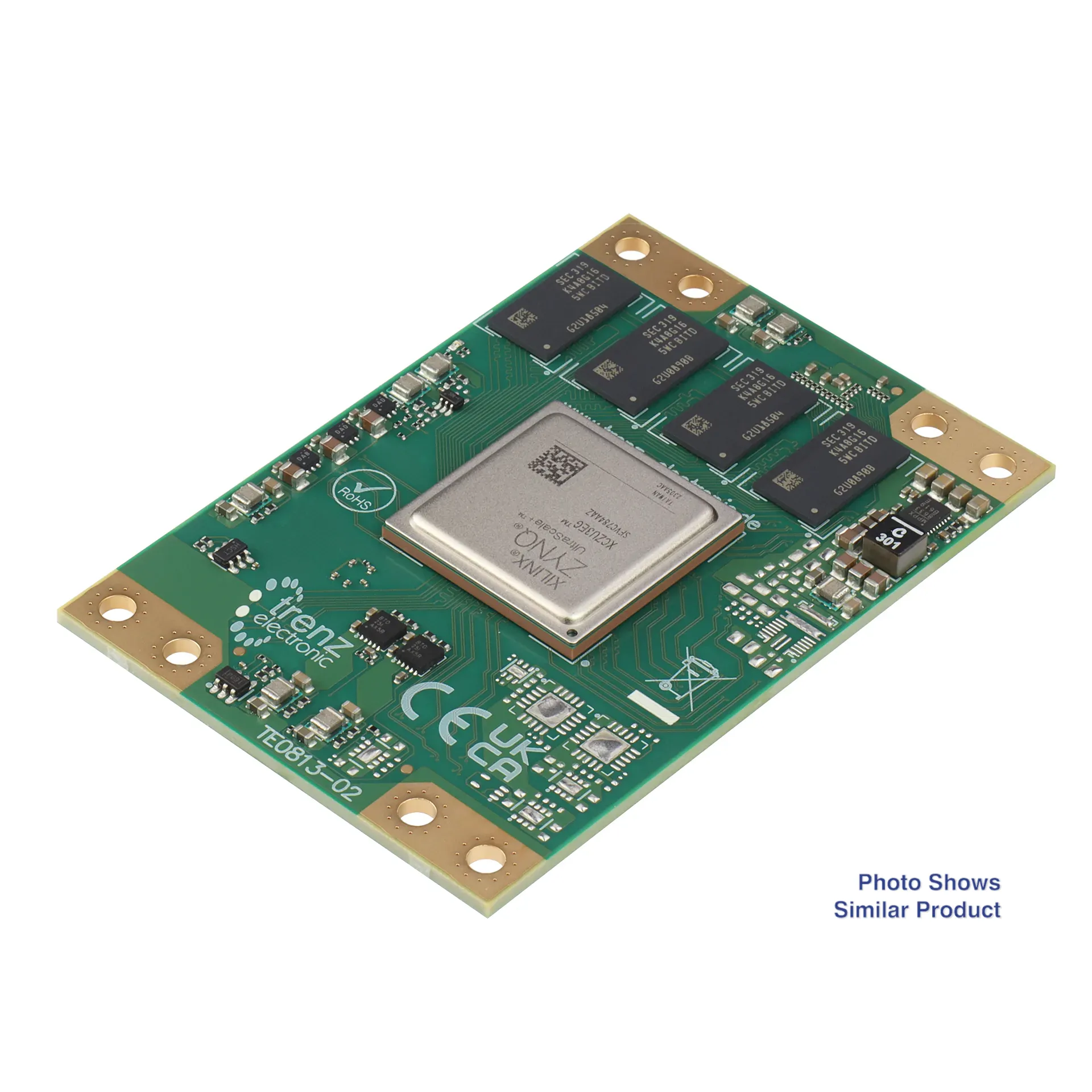

The Trenz Electronic TE0813-02-4BE81-A is an industrial-grade MPSoC module integrating a AMD Zynq™ UltraScale+™ with ZU4EG, 4 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O&lquot;s is provided via rugged high-speed stacking connections.

All this on a tiny footprint of 5.2 x 7.6 cm at the most competitive price. These high-density integrated modules are smaller than a credit card and available in several variants.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• SoC/FPGA
  • Device: AMD Zynq™ UltraScale+™ XCZU4EG-1SFVC784E
  • Speedgrade: -1
  • Temperature range: Extended
  • Package: SFVC784
  • Grafikprozessor-Unit (GPU)

• RAM/Storage
  • 4 GByte DDR4 SDRAM
  • 128 MByte QSPI Boot Flash
  • 2 Kbit serial EEPROM with EUI-48 Node Identity

• On Board
  • Oscillator
  • Programmable 4-channel PLL clock generator

• Interface
  • Plug-on module with 4 x 240 pin B2B connectors (ADM6)
    • 204 PL IO
      • HP: 156
      • HD: 48

    • 65 PS MIO

    • 4 PS GTR
    • 4 PL GTH
    • I2C, JTAG

• Power
  • 3.3V power supply required

• Dimension
  • 5.2 x 7.6 cm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TE0813-02-4BE81-A Trenz Electronic MPSoC module with AMD Zynq™ UltraScale+™ ZU4EG
• 1 x mounted heat spreader for TE0813-02

追加情報

• Manufacturer&lquot;s article number: TE0813-02-4BE81-AK
• Trenz Electronic TE0813 Wiki
• Support Forum
