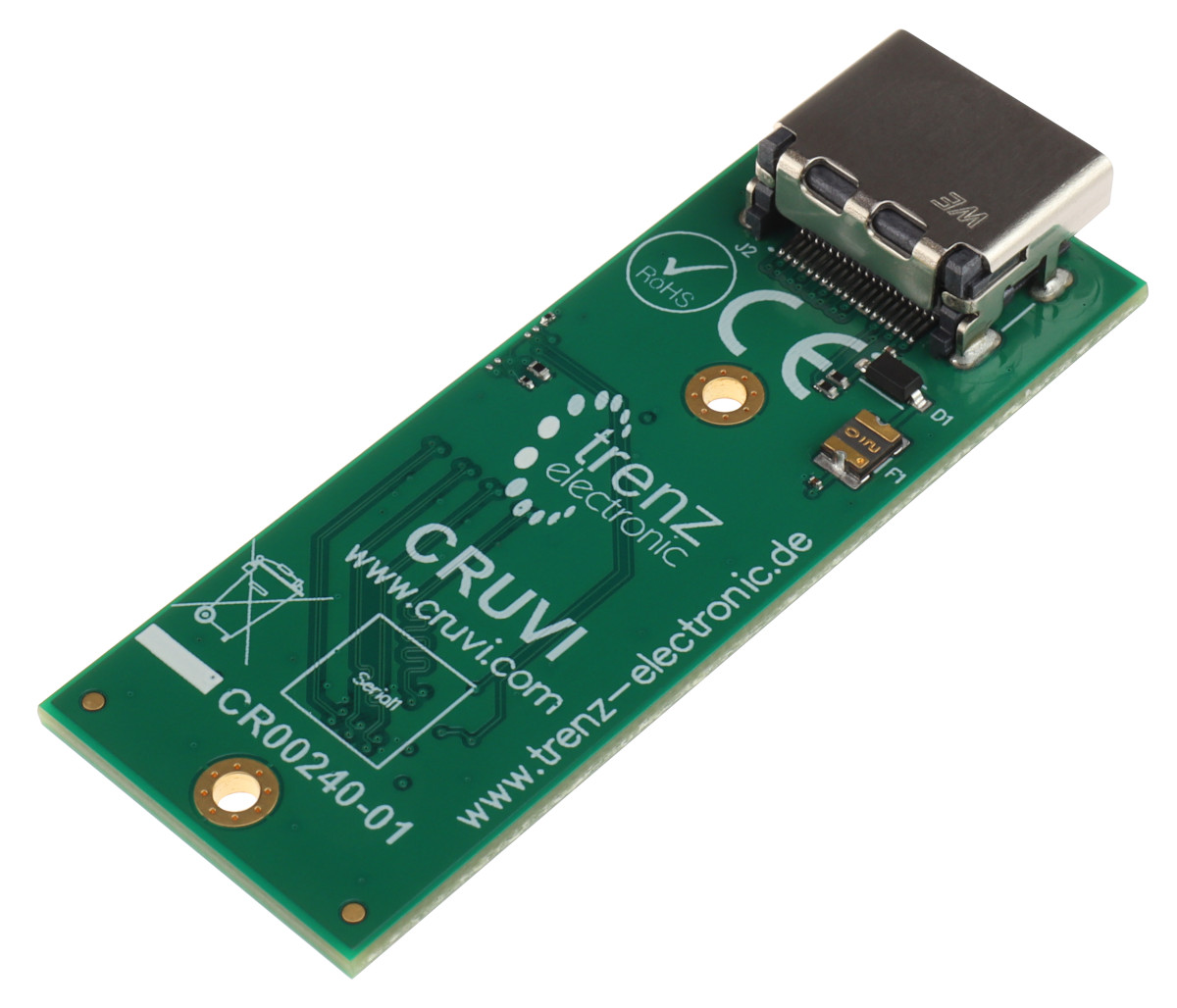

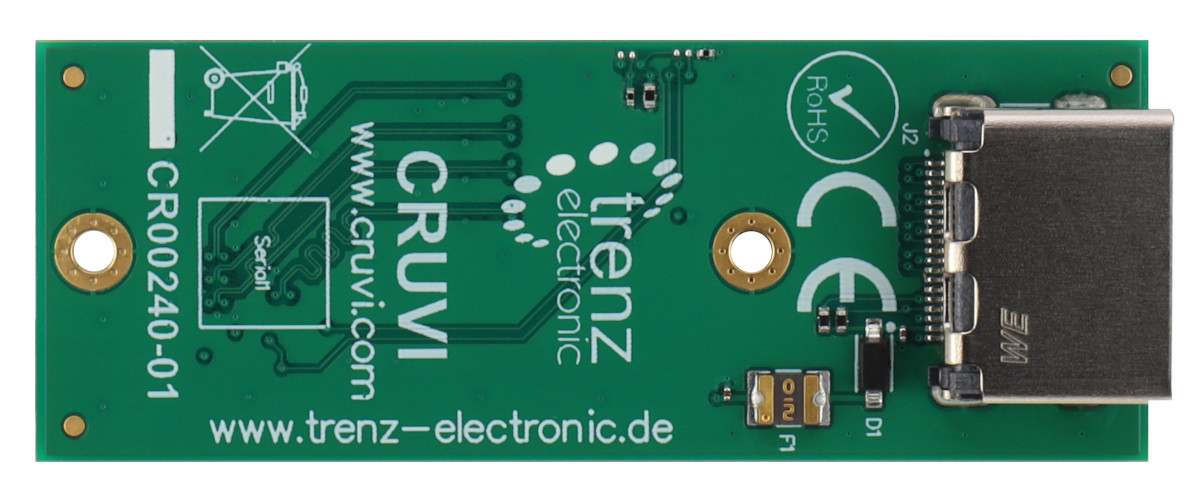

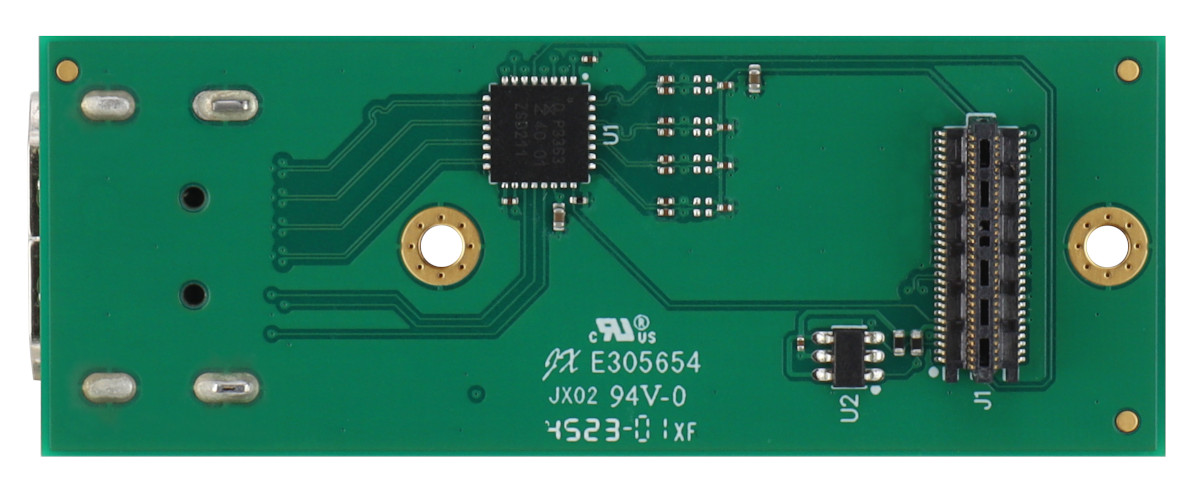

The Trenz Electronic CR00240-01-A is a CRUVI Adapter for HDMI with high-speed level shifter.
For further informations please visit www.cruvi.com.

特徴

• On Board
  • Serial EEPROM with EUI-48 Node Identity
  • HDMI/DVI level shifter with active DDC Puffer (PTN3363BSMP)

• Interface
  • Samtec ST4-30-1.50-L-D-P-TR (Ultra-Fine Pitch Header 60 pins, 0.4mm pitch, 1.50 mm height)
  • HDMI connector

• Power
  • via CRUVI

• Dimension
  • 22 mm x 57,5 mm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x CR00240-01-A Trenz Electronic CRUVI HDMI Adapter

追加情報

• Manufacturer&lquot;s article number: CR00240-01-A
• Trenz Electronic CR00240-01 Wiki
• Support Forum

リンク

• オンラインドキュメント
• テクニカルリファレンスマニュアル
• 回路図
• メーカーサイト
