The predecessor of this article is TE0422-02. All changes are in the Product Change Notification (PCN).

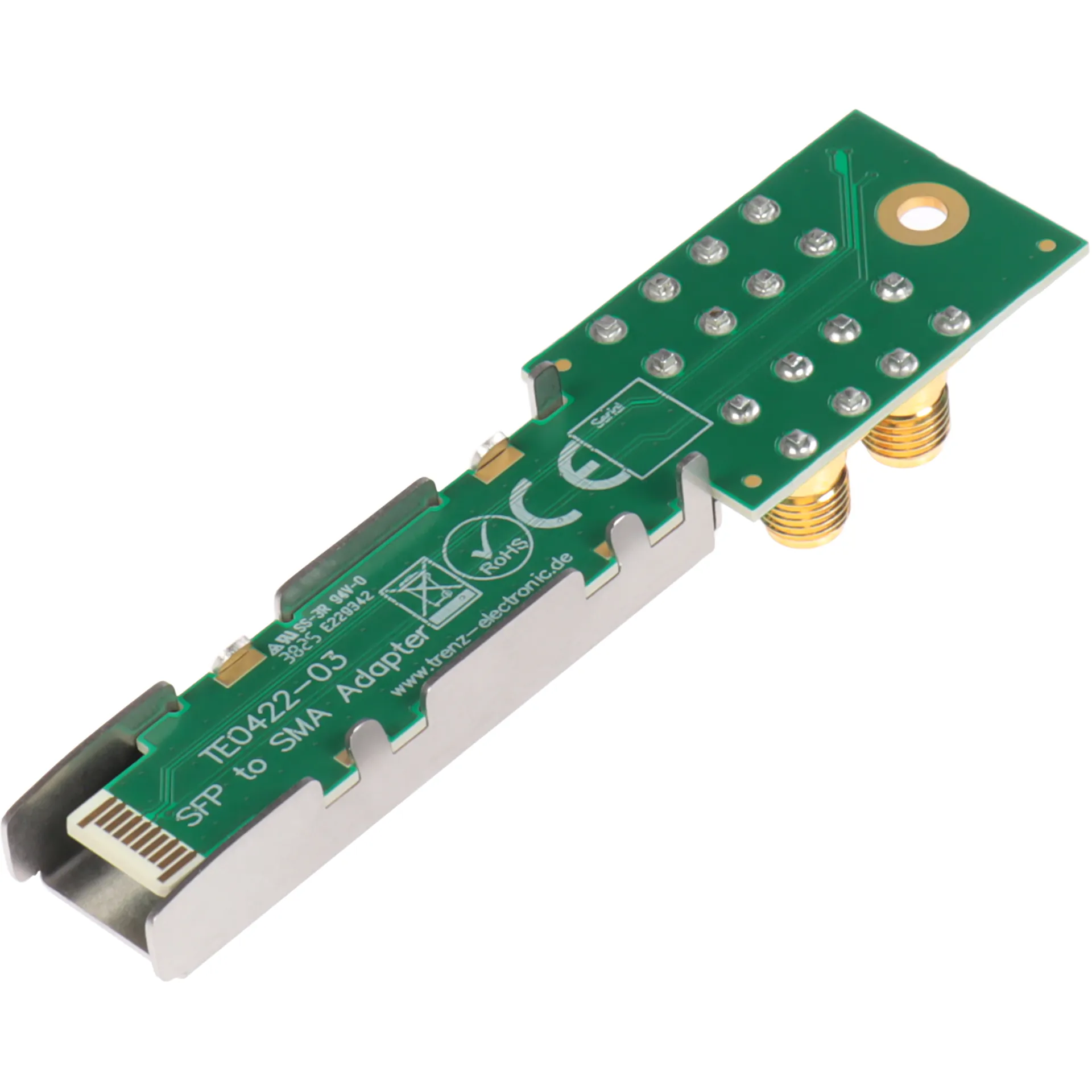

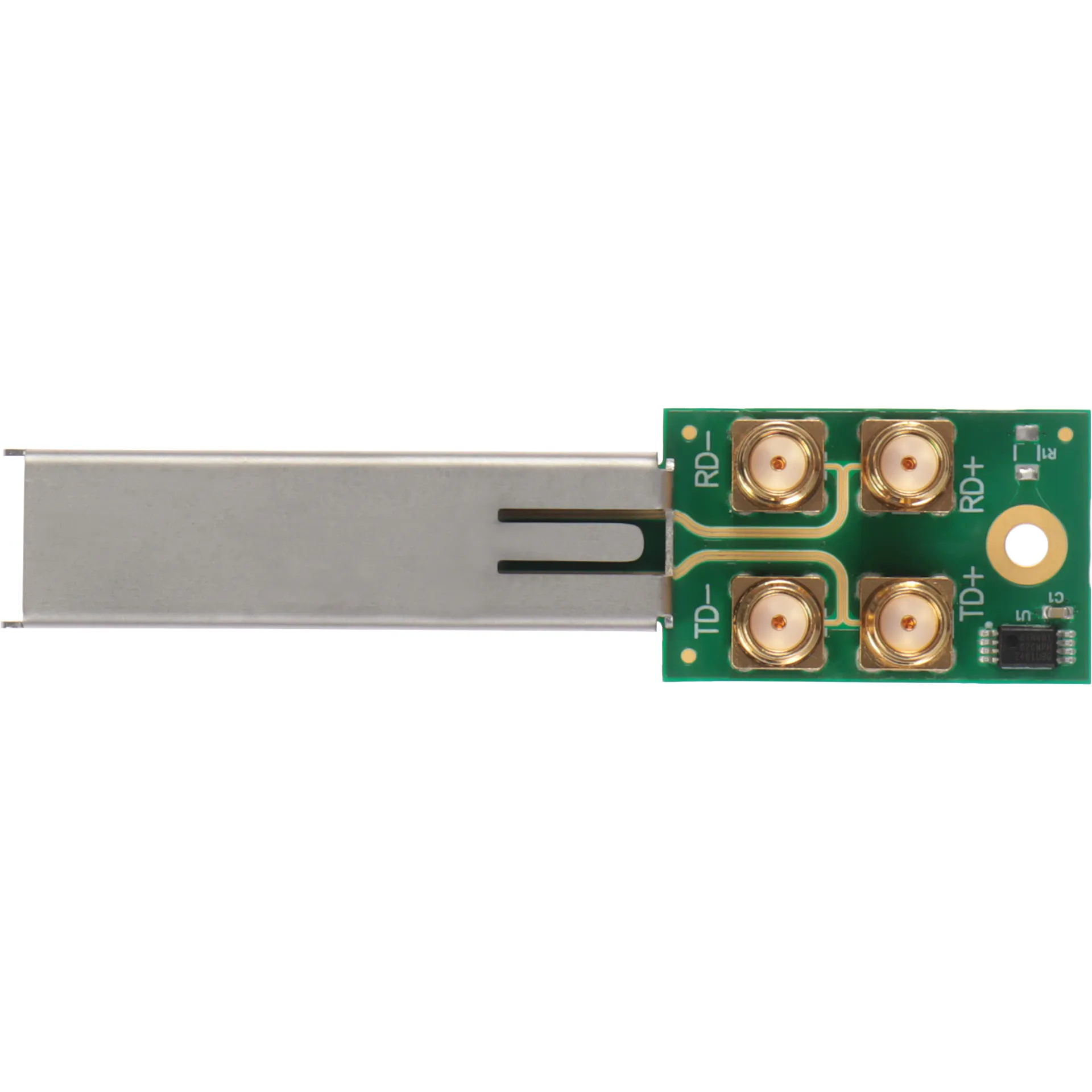

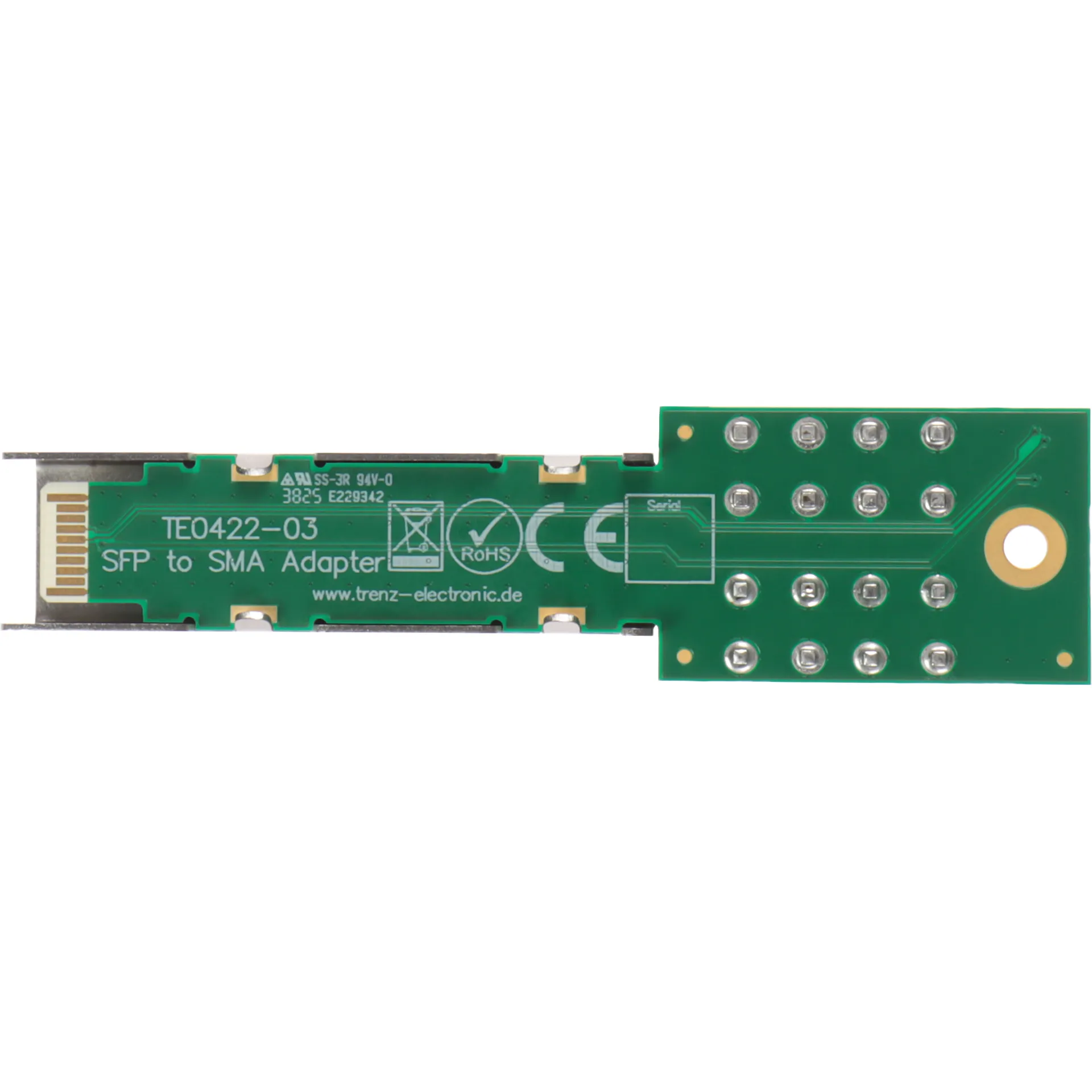

The Trenz Electronic TE0422-03 is an SFP+ to SMA adapter (1 SFP+ to 4 SMA), ideal for picking up high-frequency signals with minimal distortion.
The adapter is based on an impedance-controlled circuit board, ensuring clean, RF-compatible signal transmission between the SFP+ module and SMA connectors.

特徴

• SFP+ to SMA Adapter
• PCB made from RF-suitable materials
• The layout is impedance-matched
• Verified at 10 Gbps (loopback test with a short low-loss cable)
• No DC-blocking capacitors used
• MOD_ABS, LOS, and TX_Fault signals pulled low
• 2kbit EEPROM (can be programmed with customer-specific data)

納品物

• 1 x TE0422-03 Trenz Electronic SFP+ to SMA Adapter

追加情報

• Manufacturer&lquot;s article number: TE0422-03
