The predecessor of this article is TEI0006-03-ALC13A. All changes are in the Product Change Notification (PCN).

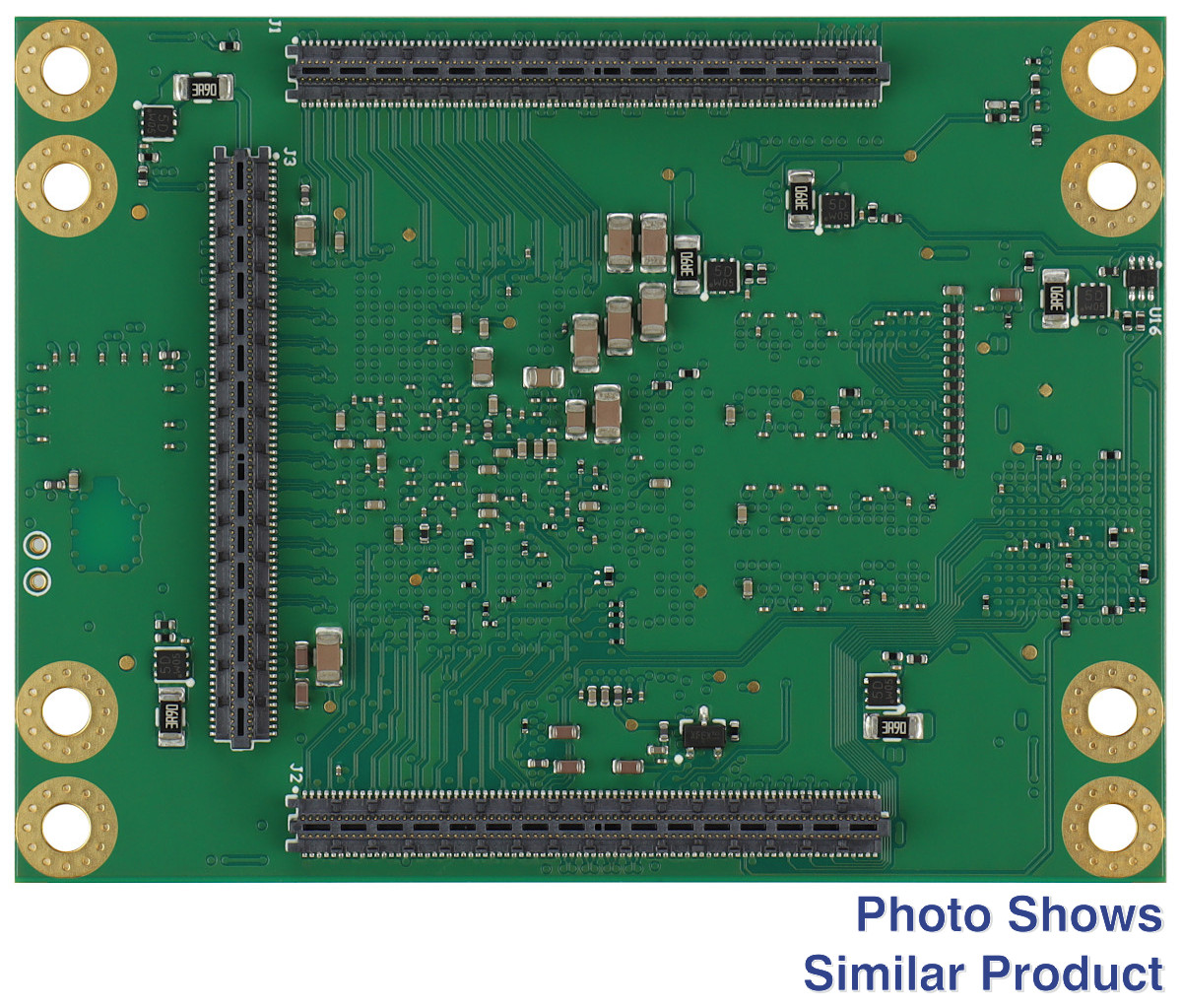

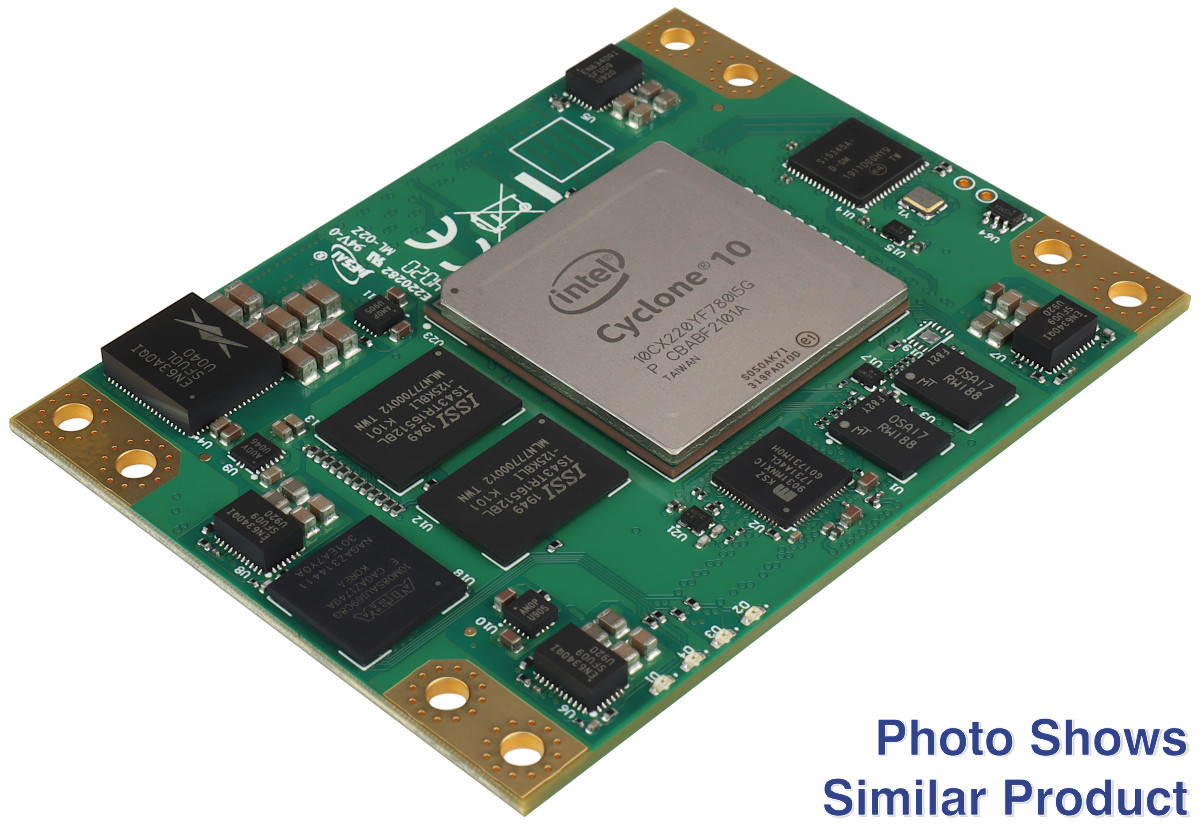

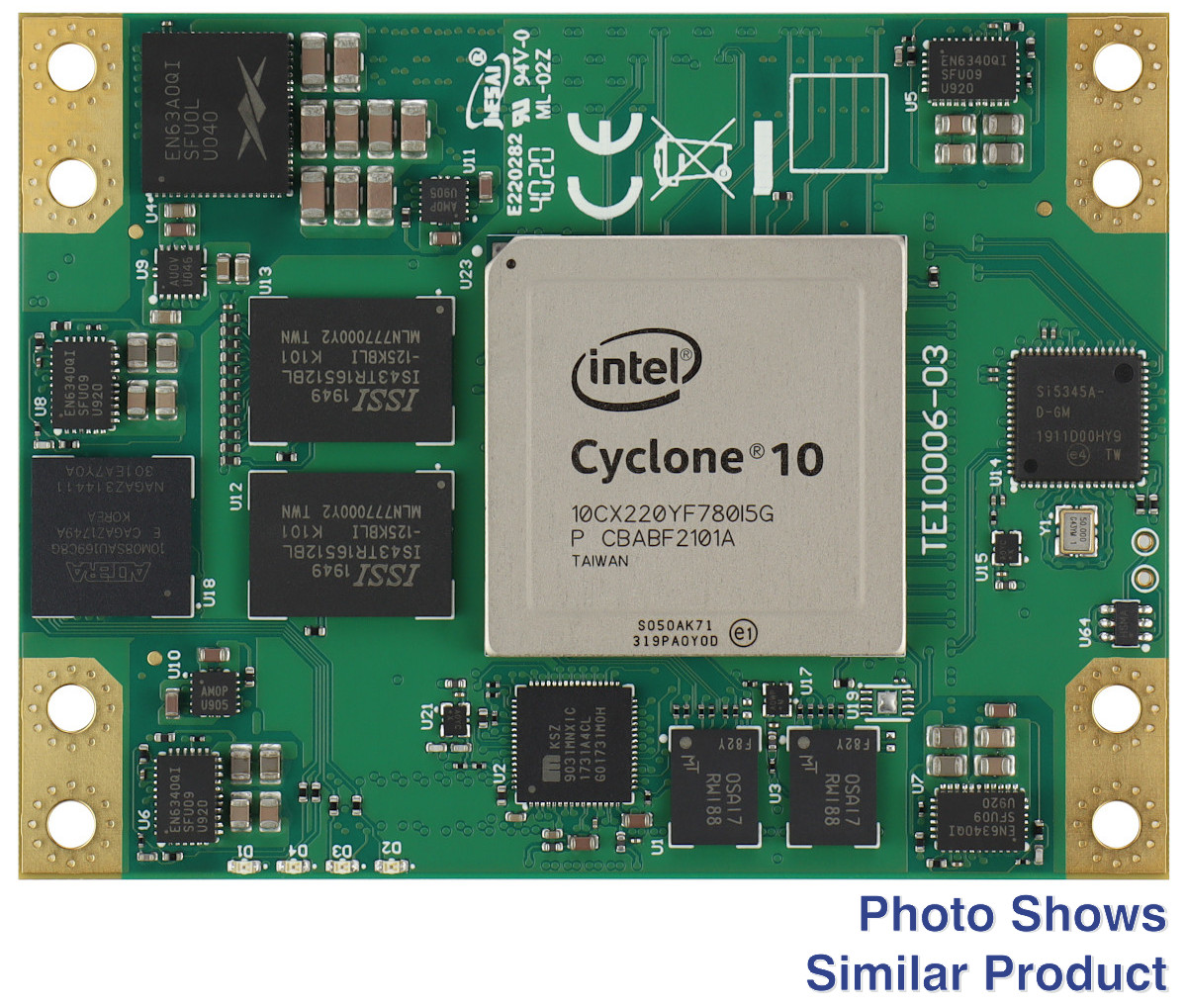

The Trenz Electronic TEI0006 is an industrial grade module based on Altera® Cyclone® 10 GX. The Altera® Cyclone® 10 GX device family delivers higher core, transceiver, and I/O performance than the previous generation of low cost FPGAs.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• Altera® Cyclone® 10 GX Industrial [10CX105YF780E5G]
  • Package: FBGA-780
  • Speed Grade: 5 (Fastest)
  • Temperature: -40°C to 100°C
  • Package compatible device, 10CX150 and 10CX105 as assembly variant on request
• 128 MByte DDR3L SDRAM
• 2 x 1 Gbit QSPI Boot Flash (total: 256 MByte)
• 1 x Gigabit Ethernet
• 10-Channel, Any-Frequency, Any-Output Jitter Attenuator/Clock Multiplier
• Altera® MAX 10 as system controller (CPLD)
• 2 KBit EEPROM memory
• 4 x User LEDs
• I/O interfaces: 226/94/46 (IO&lquot;s/DIFF. Pairs/LVDS Pairs)
• 12 x 12.5 Gbps Transceiver
• Board to Board (B2B) connection: plug-on module with 3 x 160-pin Samtec Razor Beam (ST5) connectors
• 5 V power supply
• size: 6 x 8 cm

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x TEI0006-04-ALE13A Trenz Electronic FPGA module with Altera® Cyclone® 10GX

追加情報

• Manufacturer&lquot;s article number: TEI0006-04-ALE13A
