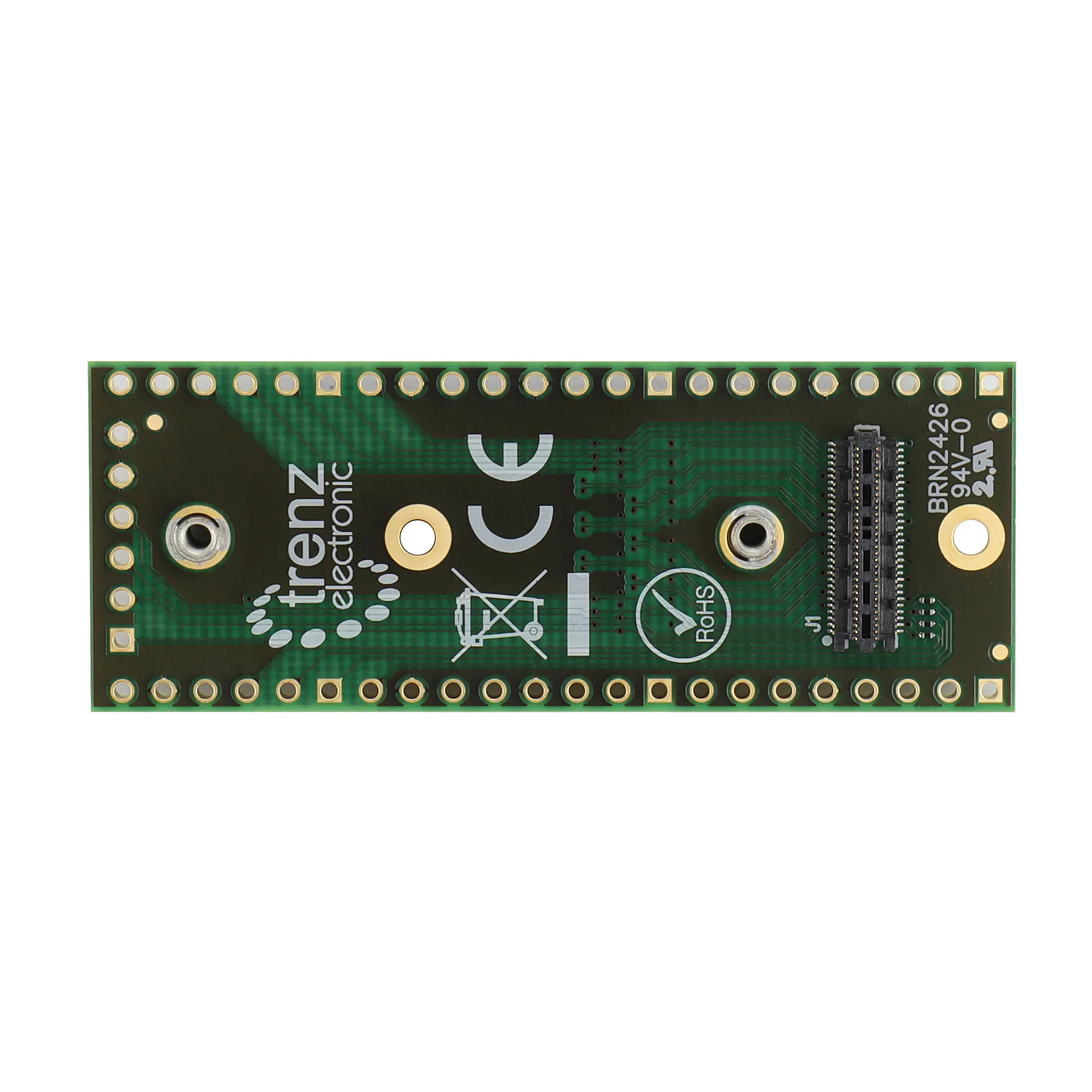

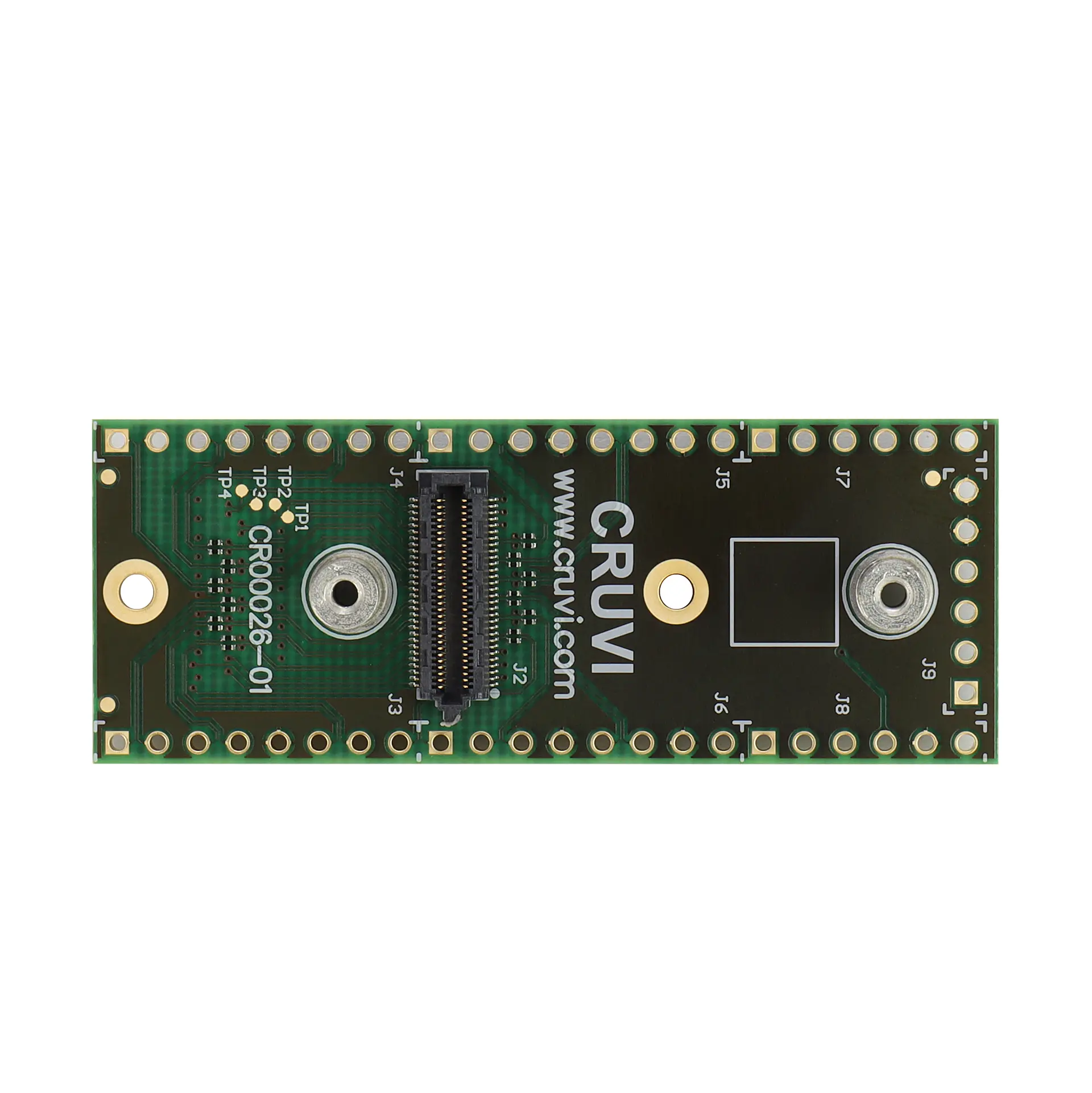

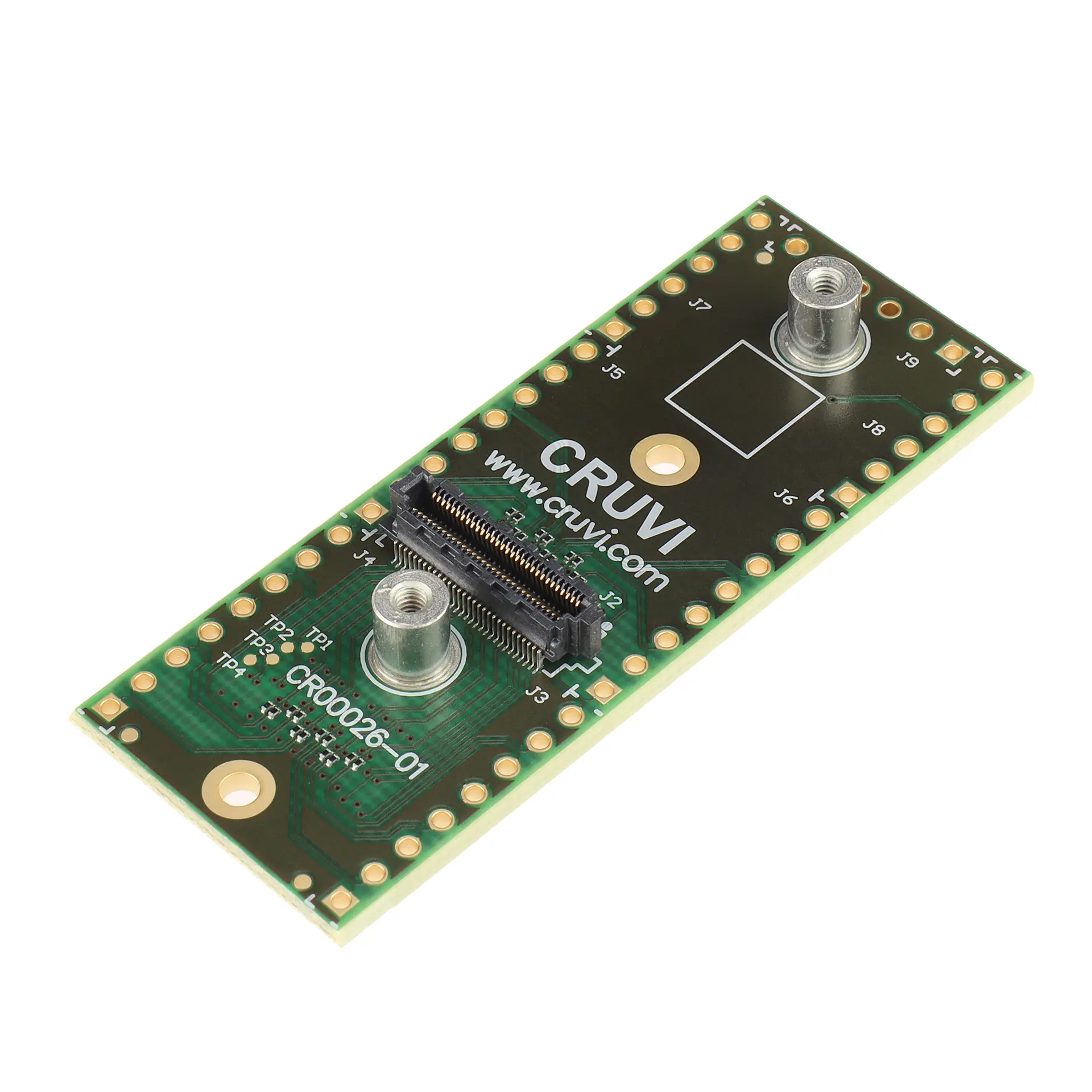

The Trenz Electronic CR00026-01-NC is a HS CRUVI module used as breakout/interposer for an other HS CRUVI module under investigation. All Signals of the HS CRUVI connetor are routed to a host HS CRUVI connector and additionally to 2.54 mm pitch pin headers (not assembled).

For further informations please visit www.cruvi.com.

特徴

• On Board
  • CRUVI HS Host connector
  • CRUVI HS Device connector
  • 100 mil pin headers
•  Dimension
  • 22 mm x 57,5 mm



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

• 1 x CR00026-01-NC Trenz Electronic CRUVI Signal breakout debug adapter
• 2 x pin headers 22-pin, 1-row 90°
• 1 x pin header 6-pin, 1-row 90°

追加情報

• Manufacturer&lquot;s article number: CR00026-01-NC
• Trenz Electronic CR00026 Wiki
• Support Forum
