The predecessor of this article is KK0817-01. All changes are in the Product Change Notification (PCN).

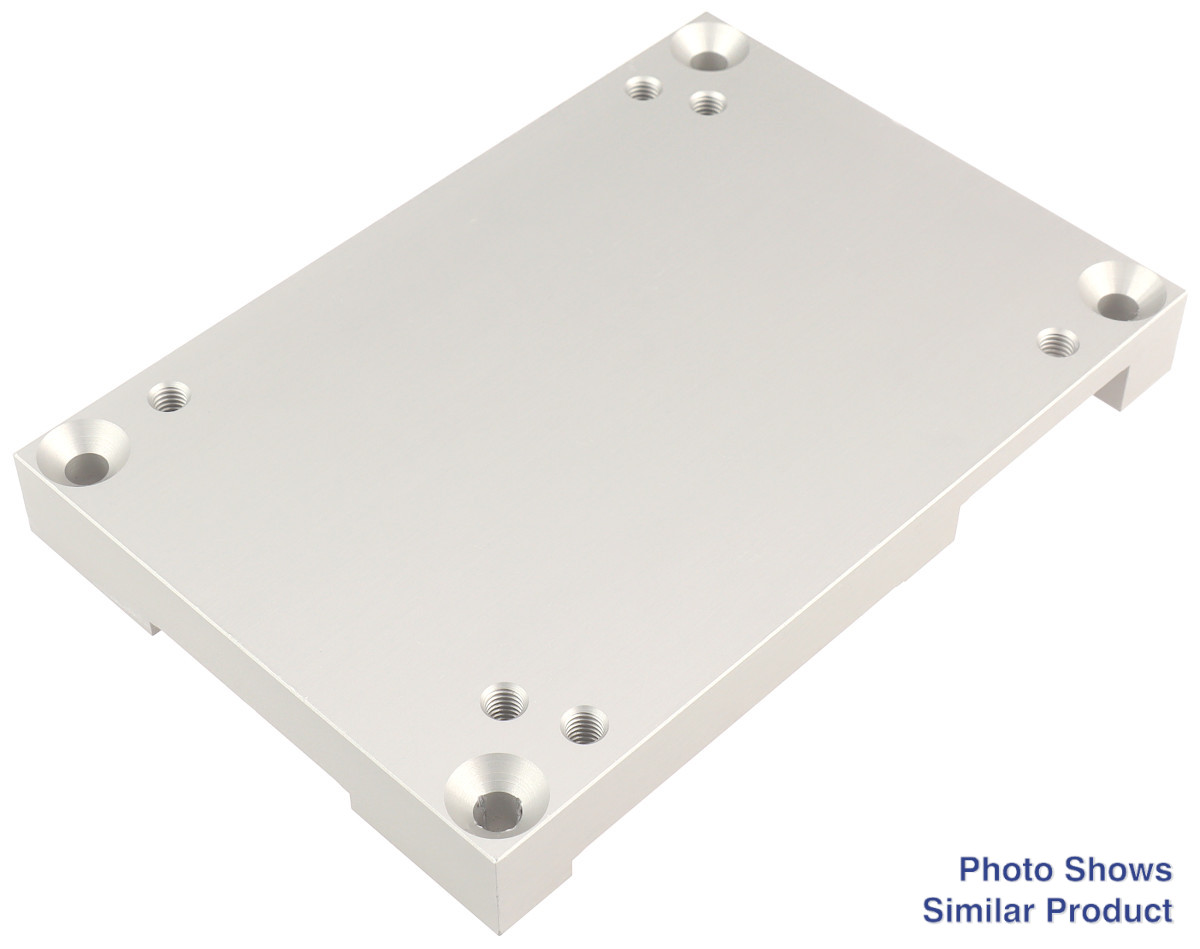

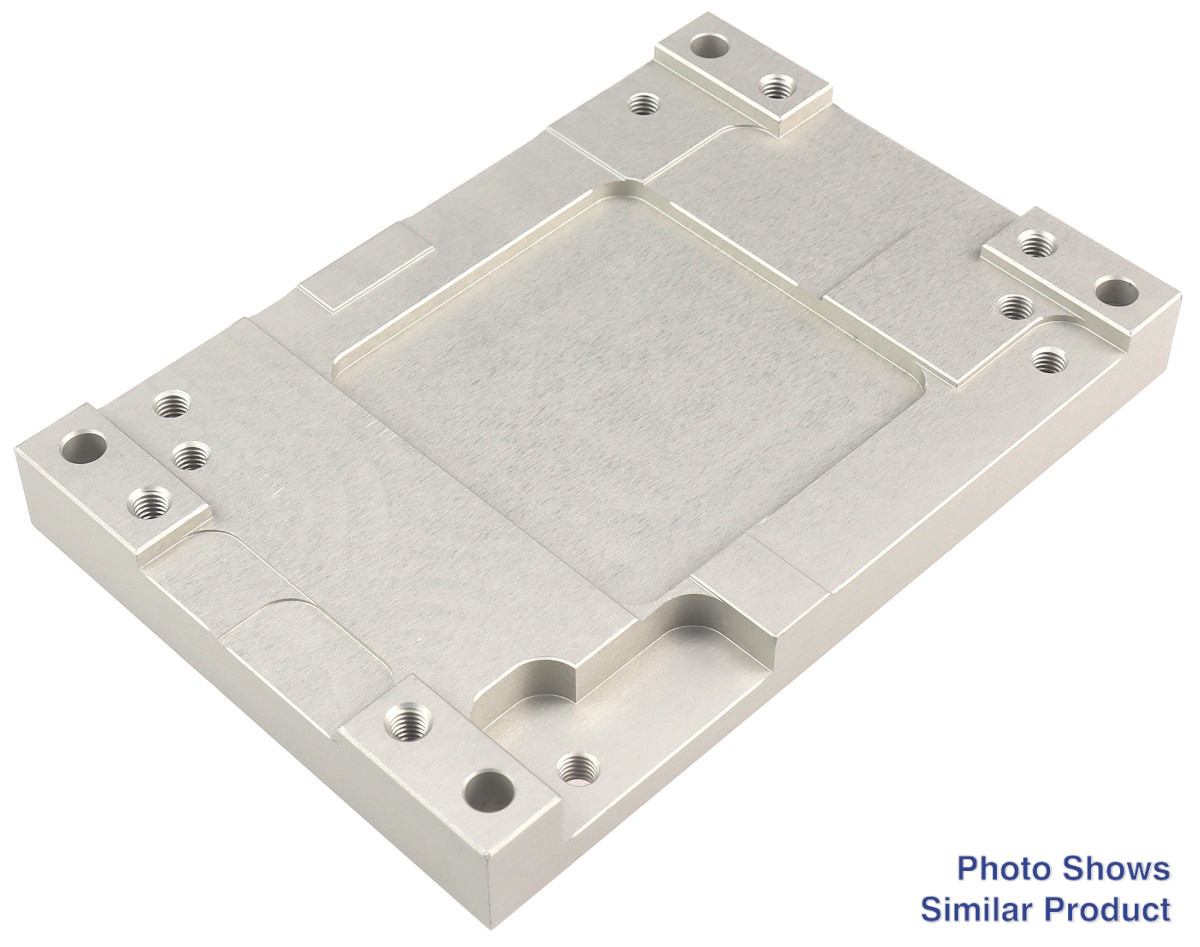

Cooling solution especially desgined for Trenz Electronic MPSoC module TE0817-02.

Important note: This heat spreader requires a so-called gapfiller. For this reason it is recommended to have the heat spreader installed here. Please leave a note in the comment box at the end of your order.

• Order number: KK0817-02
• Flat
• Custom-fit for TE0817-02 module
• Surface treatment: ELOXAL colourless, natural
• Please check the technical drawing for the exact dimensions of the heat spreader (see Downloads).
• Compatible with heat spreader extension article no. 34314
• Compatible with Radian Sub-Zero PCIe Fansink - SZ12L, 12V (Artikel 33663)
• Compatible with Radian Sub-Zero PCIe Fansink - SZ5L, 5V (Artikel 33664)

特徴

納品物

• 1 x KK0817-02 heat spreader for Trenz Electronic TE0817-02 MPSoC modules
• 4 x screws

追加情報

• Manufacturer&lquot;s article number: KK0817-02
• Overview modules TE0817 series
• Download Technical Drawing
• Trenz Electronic Wiki for KK0817 Head Spreader
• Trenz Electronic Wiki Cooling Solutions Overview
• Support Forum
