特徴

• AMD Kintex™ UltraScale™ XCKU035-1SFVA784I FPGA
• Rugged for industrial application
• Size: 40 x 50 mm
• 3 mm mounting holes for skyline heat spreader
• 2 banks of 1024 MByte DDR4 SDRAM, 32bit wide memory interface (each DDR 16bit separate)
• 64 MByte (512 MBit) QSPI boot Flash
• B2B Connectors: 3 x Razor Beam High-Speed Hermaphroditic Terminal/Socket Strips (regular 4 mm), total 260 terminals
  • 60 x HR I/Os
  • 84 x HP I/Os
  • Serial transceiver: GTH 8 lanes (TX/RX)
  • 2 x MGT external clock inputs
• Clocking

  • Si5338 - 4 output PLL, GT and PL clocks
  • 200 MHz LVDS oscillator
• Power
  • All power supplies on board, single supply operation supported
  • User defined IO-Bank power
• Evenly spread supply pins for good signal integrity



Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

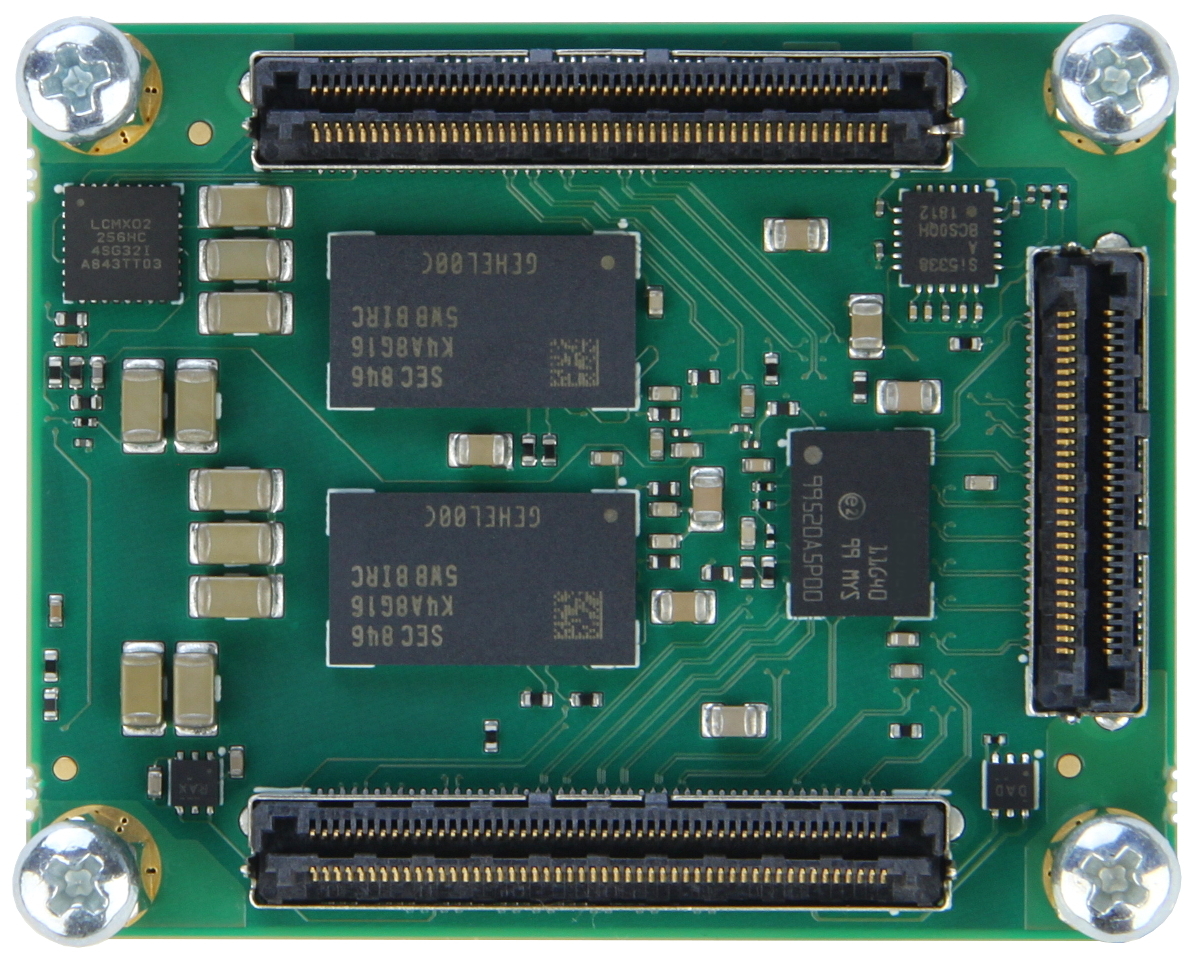

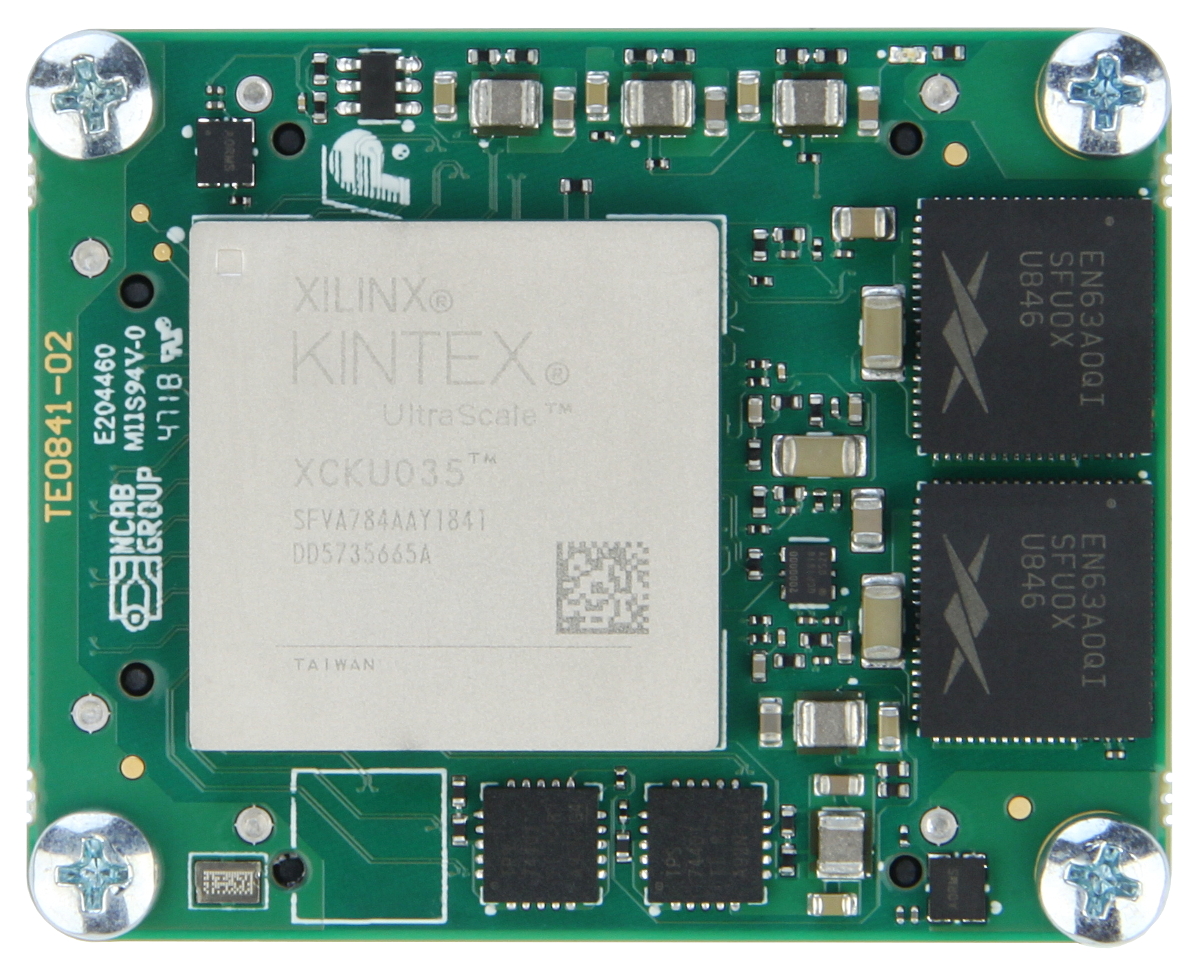

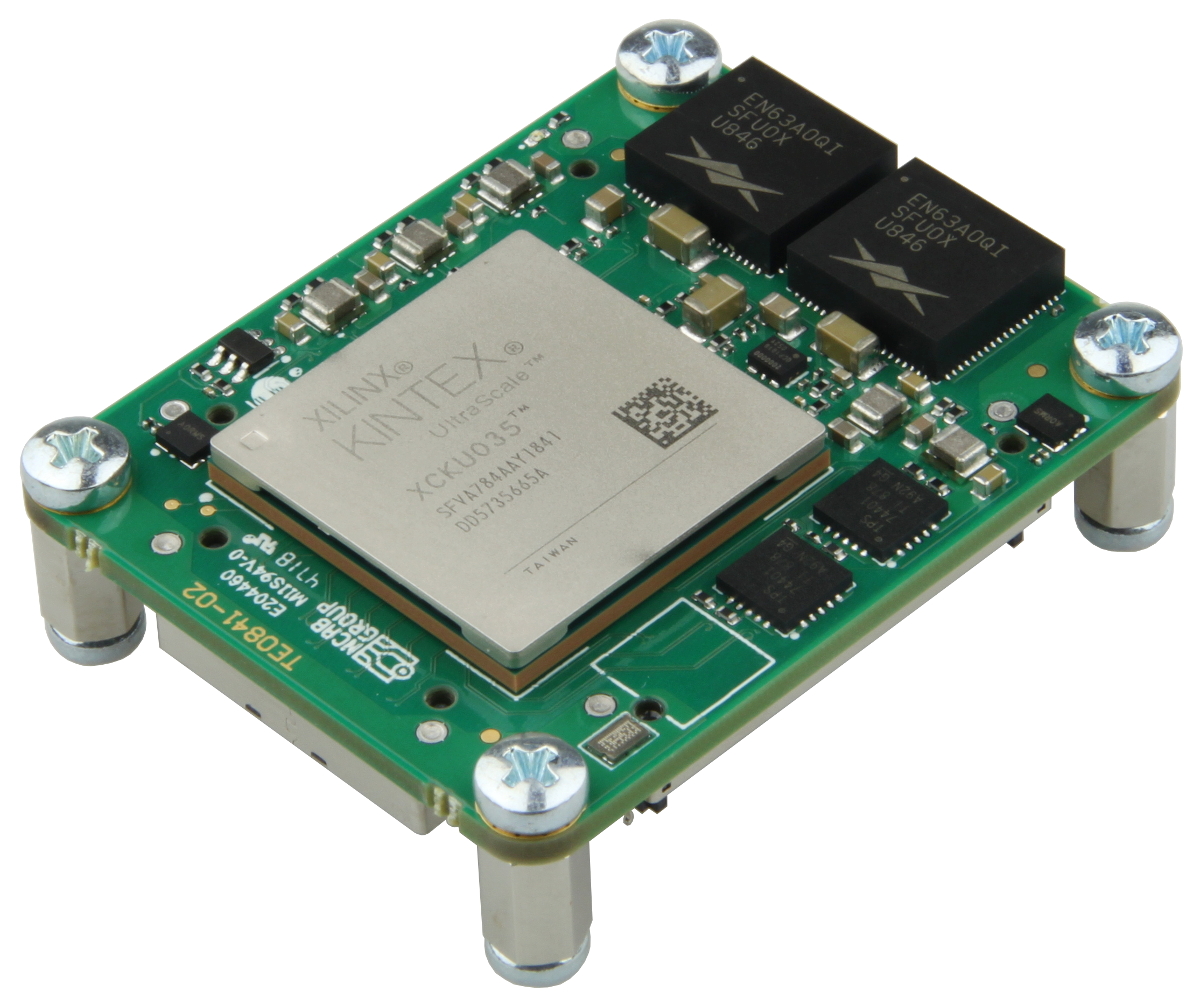

• 1 x TE0841-02-31I21-T Trenz Electronic 4 x 5 cm FPGA module with AMD Kintex™ UltraScale™ XCKU035 (industrial temperature range)
• 8 x screws
• 4 x bolts

追加情報

• Manufacturer&lquot;s article number: TE0841-02-31I21-T
• Trenz Electronic TE0841 Wiki
• Samtec LSHM Razor Beam, High-Speed Hermaphroditic Terminal/Socket Strips, regular 4 mm,
  overview, compatibility, mating heights and speed rating: Wiki, mounted on every 4 x 5 cm module of Trenz Electronic
• Support Forum
