The predecessor of this article is KK0865-02. All changes are in the Product Change Notification (PCN).

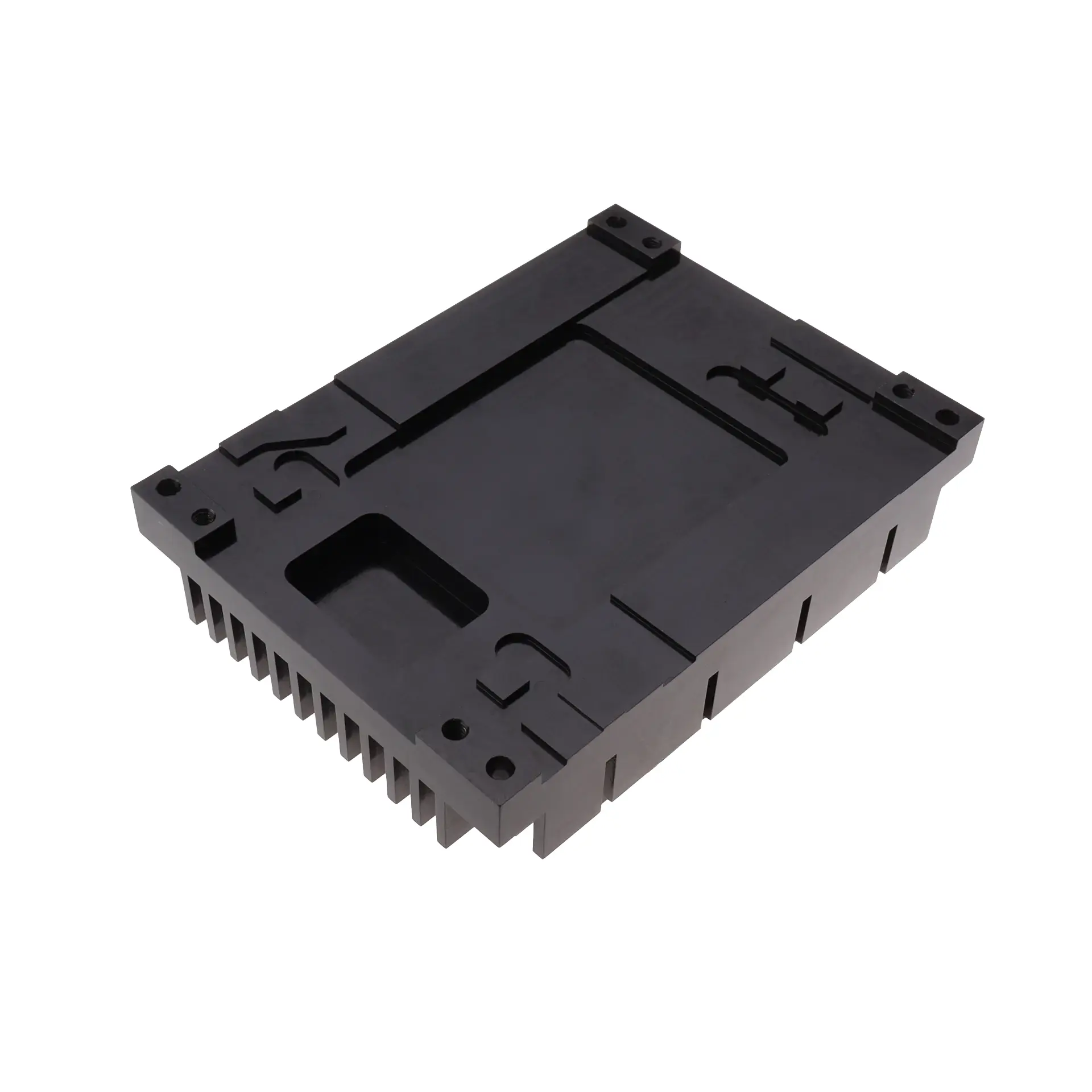

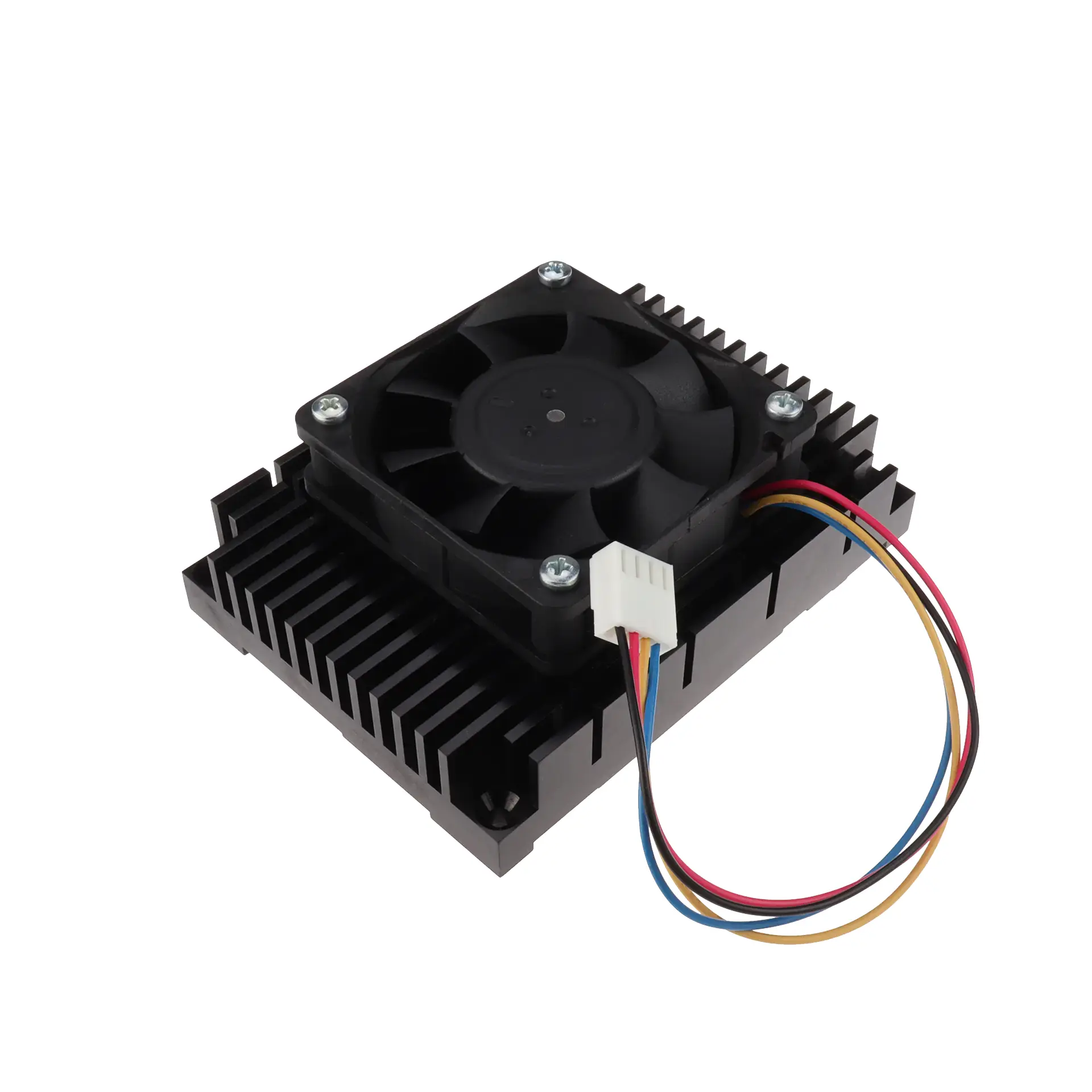

Cooling solution with fan especially desgined for Trenz Electronic module TE0865.

Important note: This heat spreader requires a so-called gapfiller. For this reason it is recommended to have the heat spreader installed here. Please leave a note in the comment box at the end of your order.

• Order number: KK0865-02
• Flat
• Custom-fit for TE0865 module
• Surface treatment: ELOXAL black
• Fan axial 12V DC 60 x 60 x 15 mm PWM
• Please check the technical drawing for the exact dimensions of the heat spreader (see Downloads).

特徴

納品物

• 1 x KK0865-02 heat spreader for Trenz Electronic modules TE0865
• 1 x Fan (axial, square)
• 4 x screws M3 6mm
• 4 x screws M3 12mm
• 4 x screws M3 25mm
• 4 x bolts M3x5
