TE0820-05-4BE81MA

The predecessor of this article is TE0820-05-3BE21MA. All changes are in the Product Change Notification (PCN).

Note: Obsolescence management, memory was changed from K4A8G165WB-BIRC to new revision K4A8G165WC-BITDTCV.

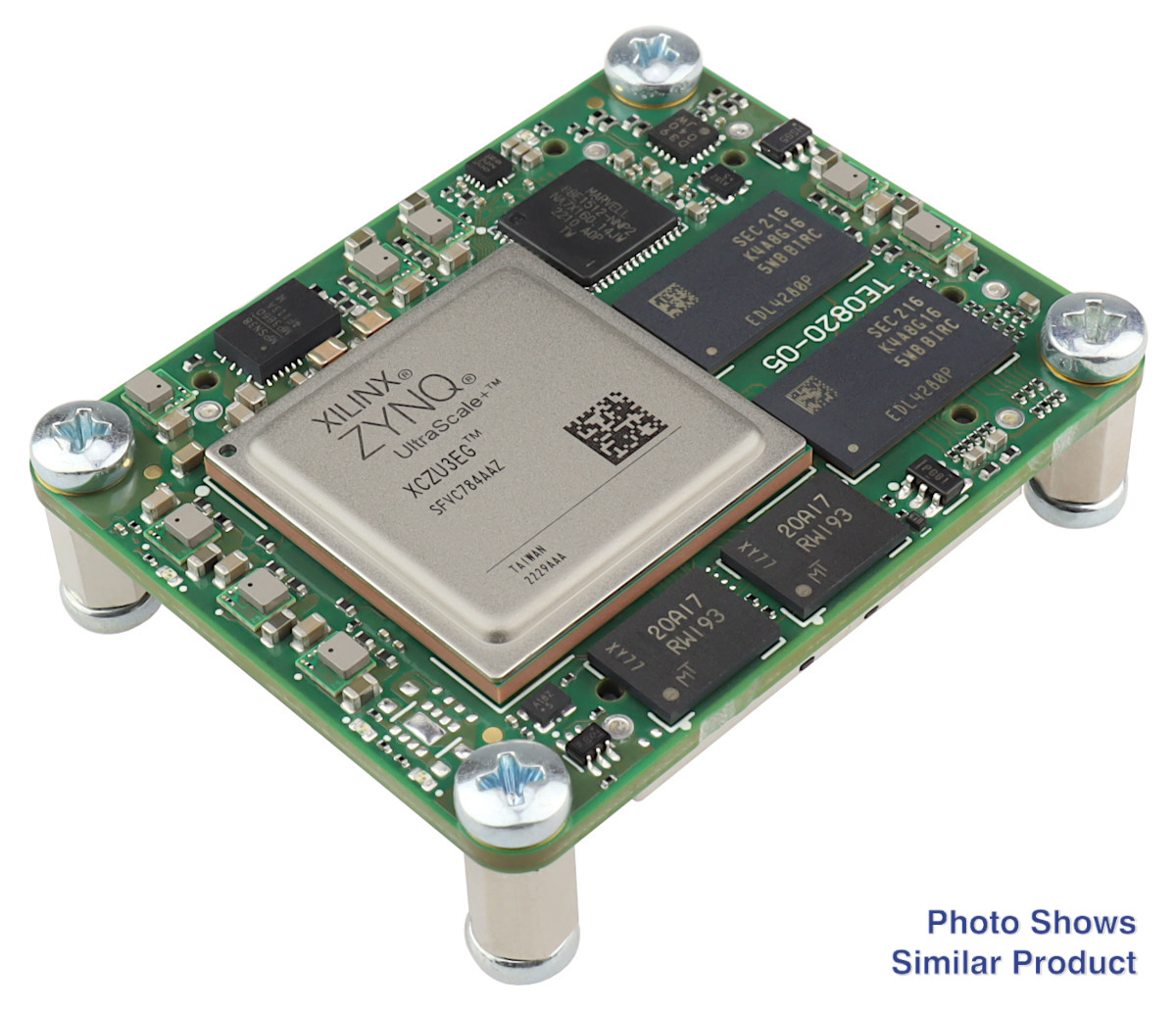

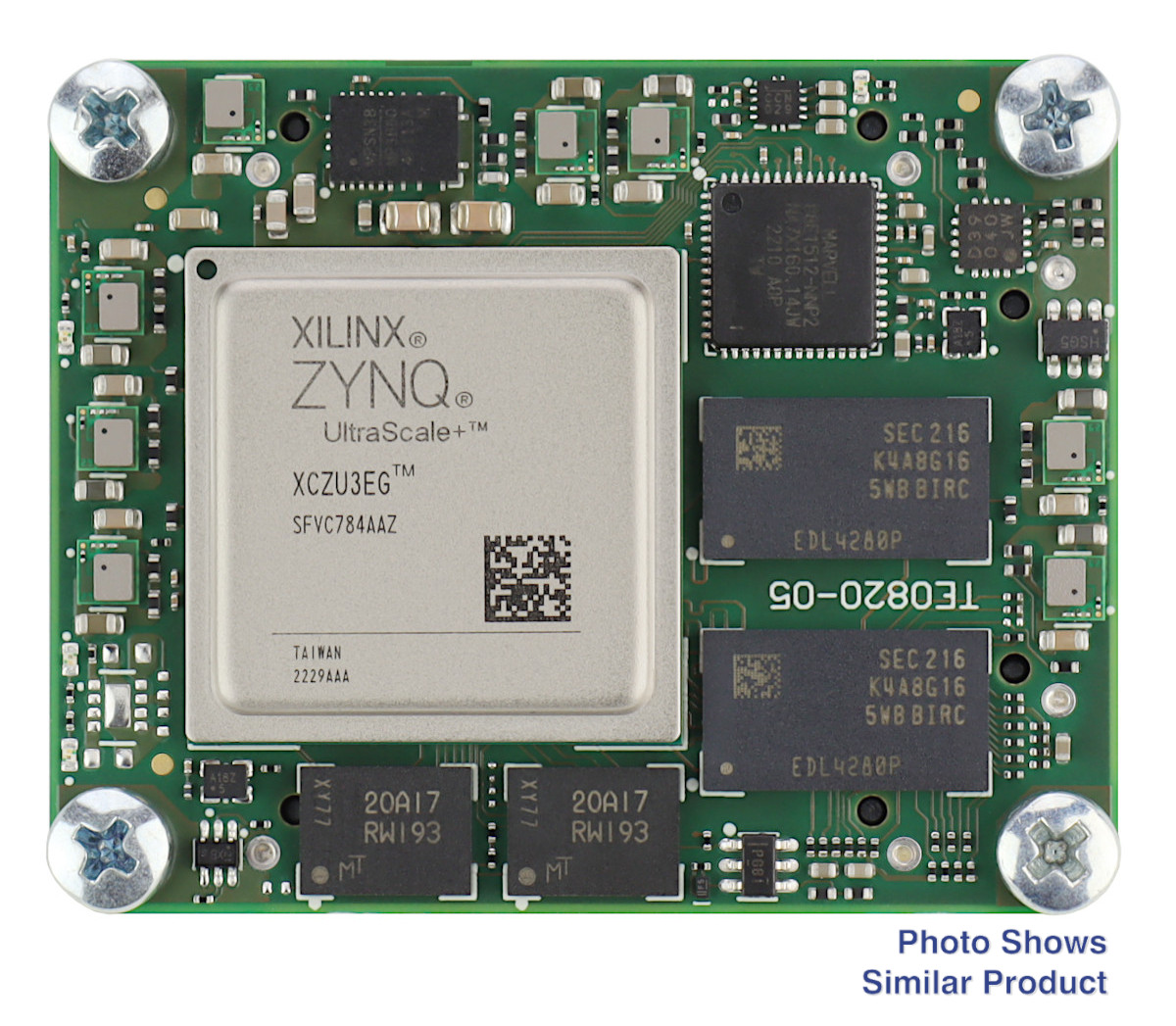

The Trenz Electronic TE0820-05-4BE81MA is an industrial-grade MPSoC module integrating a AMD Zynq™ UltraScale+™ ZU4EG, 2 GByte DDR4 SDRAM, 128 MByte Flash memory for configuration and operation, and powerful switch-mode power supplies for all on-board voltages. A large number of configurable I/O&lquot;s is provided via rugged high-speed stacking connections.

All this on a tiny footprint, smaller than a credit card, at the most competitive price. Modules in 4 x 5 cm form factor are fully mechanically and largely electrically compatible among each other.

All parts are at least extended temperature range of 0°C to +85°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

  • FPGA
    • Device: AMD Zynq™ UltraScale+™ XCZU4EG-1SFVC784E
    • Speedgrade: -1
    • Temperature range: Extended
    • Package: SFVC784
    • Graphic Processing Unit (GPU)
  • RAM/Storage
    • 2 GByte DDR4 SDRAM
    • 128 MByte QSPI Boot Flash in dual parallel mode
    • 8 GByte e.MMC Memory
    • MAC address serial EEPROM with EUI-48 Node Identity
  • On Board
    • Lattice MachXO2 CPLD
    • Programmable quad PLL clock generator PLL for PS GTR clocks
    • Hi-speed USB2 ULPI Transceiver
    • 4 x LEDs
  • Interface

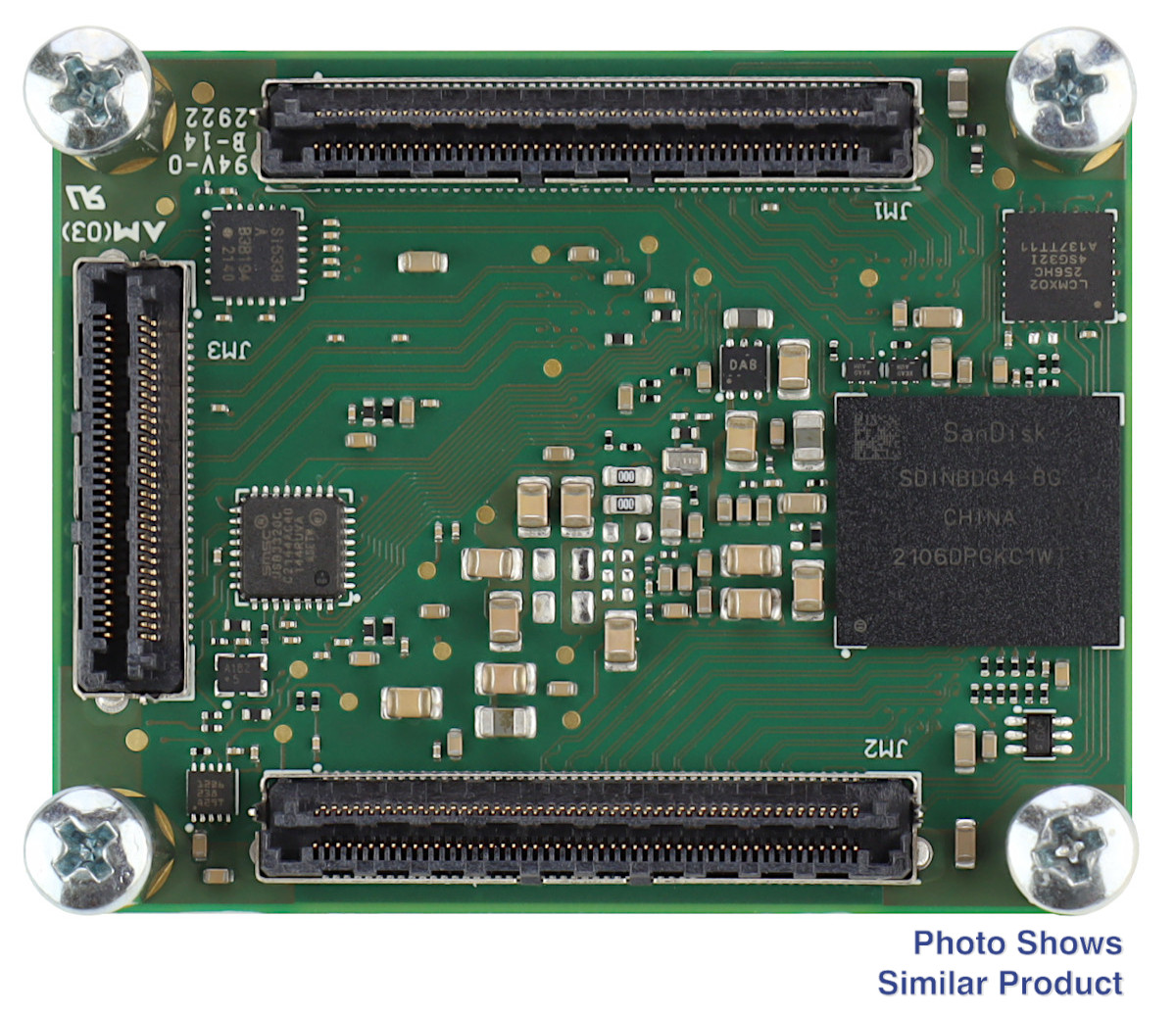

    • Plug-on module with 2 x 100-pin and 1 x 60-pin Razor Beam High-Speed hermaphroditic Terminal/Socket Strips (regular 4 mm)
    • Gigabit Ethernet transceiver PHY
    • Hi-speed USB2 ULPI transceiver with full OTG support
    • Graphic Processor Mali-400 MP2
    • 132 x HP PL I/Os (3 banks)
    • 14 x PS MIOs (6 of the MIOs intended for SD card interface in default configuration)
    • 4 x serial PS GTR transceivers
    • Four high-speed serial I/O (HSSIO) interfaces supporting following protocols:
      • PCI Express interface
      • SATA 3.1 interface
      • DisplayPort interface with video resolution up to 4k x 2k
      • USB 3.0 specification compliant interface implementing a 5 Gbit/s line rate
      • 1 GB/s serial GMII interface
  • Power
    • All power supplies on board
  • Dimension
    • 4 x 5 cm

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

  • 1 x TE0820-05-4BE81MA Trenz Electronic MPSoC module with AMD Zynq™ UltraScale+™ ZU4EG
  • 8 x screws
  • 4 x bolts

追加情報


リンク

製品名価格
TE0820-05-4BE81MA66,800カートに入れる
