The predecessor of this article is TE0725LP-01-72C-1T. All changes are in the Product Change Notification (PCN).

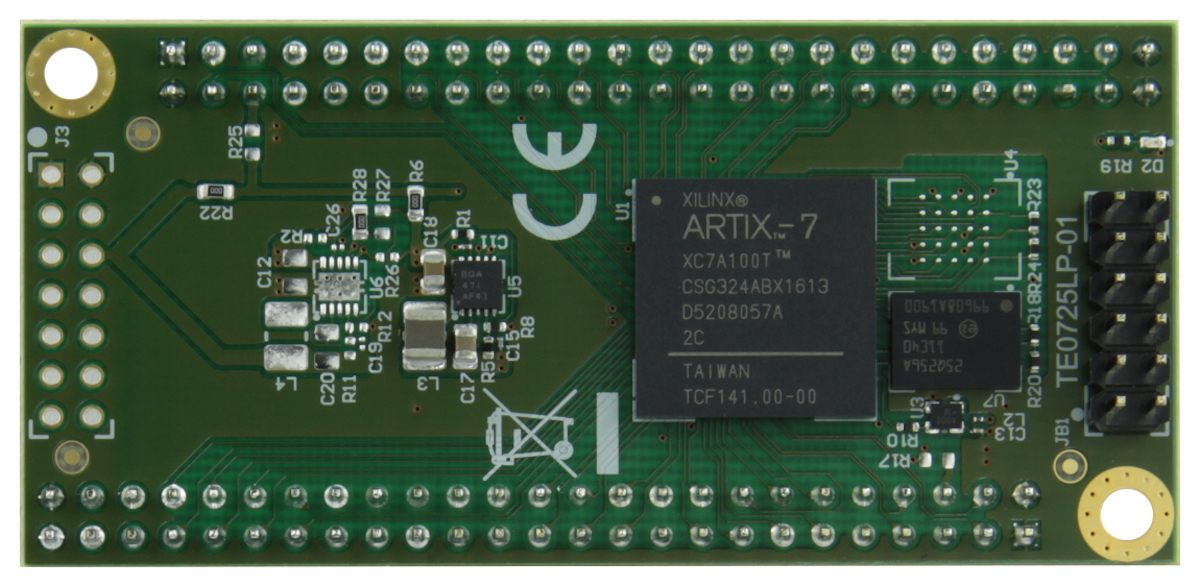

The Trenz Electronic TE0725LP-02-72C-AT is a low cost small-sized FPGA module integrating a AMD Artix™ 7 100T and 64 MByte Flash memory for configuration and operation. The 2 x 50 pin headers with a 2.54 mm standard pitch are perfect for breadboard or low cost dual layer PCB.

The reference design is bundled with a FREE evaluation edition of the low-cost, commercially proven, high performance memory controller IP supplied by Synaptic Laboratories Ltd (SLL). This free IP evaluation license never expires, and no customer registration or NIC ID is required.
Click here to find the latest free trials of SLL’s memory controller IP for HyperBus, OctaBus, Xccela Bus, JEDEC xSPI Profile 1.0 and JEDEC xSPI Profile 2.0 for Intel, Microchip, and AMD/Xilinx FPGA. SLL IP is also qualified for use with Trenz Electronic HS CRUVI enabled boards. Please send all sales enquiry and technical support questions for SLL’s IP to info@synaptic-labs.com.

All parts are at least commercial temperature range of 0°C to +70°C. The module operating temperature range depends on customer design and cooling solution. Please contact us for options.

特徴

• AMD Artix™ 7 XC7A100T-2CSG324I
• Commercial temperature range
• 64 MByte Flash memory
• 2 x 50 pin headers with 2.54 mm pitch, ideal for breadboard use
• 1.8 V single supply with on board voltage regulators
• 95 I/O&lquot;s (42 + 42 + 3 + 8)
• 25 MHz system clock
• I²C EEPROM
• 7.3 x 3.5 cm form factor
• JTAG/UART connector
• One user LED
• Optional HyperRAM (8 to 32 MByte) or HyperFlash
  HyperRAM from Cypress cypress.com/products/hyperram-memory
  HyperFlash from Cypress cypress.com/products/hyperflash-nor-flash-memory

Other assembly options for cost or performance optimization plus high volume prices available on request.

納品物

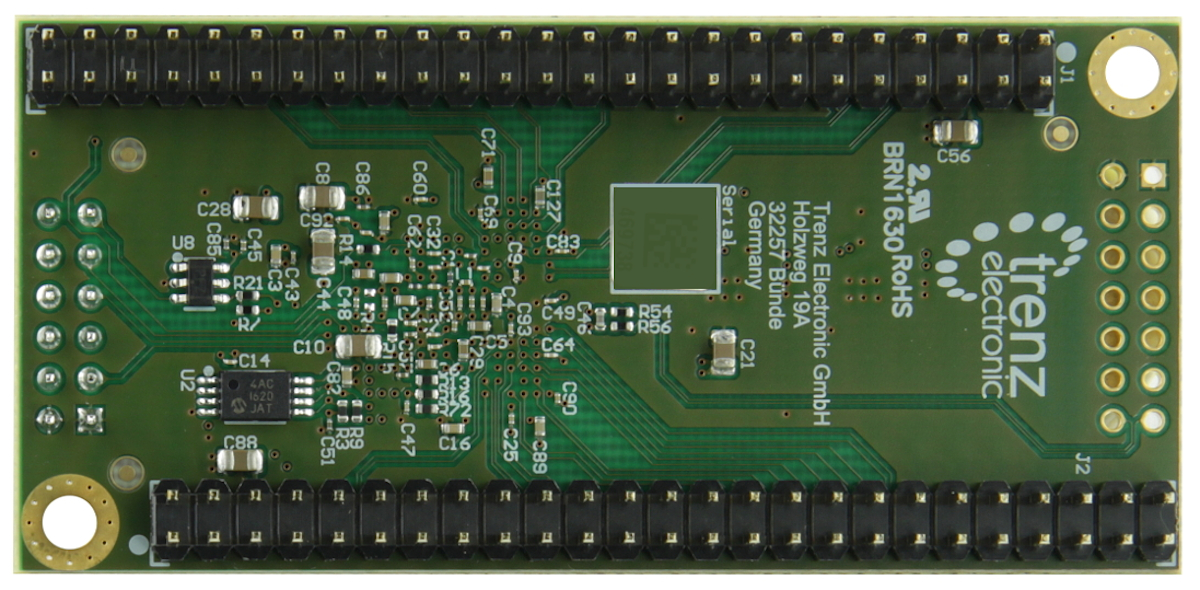

• 1 x TE0725LP-02-72C-AT Trenz Electronic FPGA module with AMD Artix™ 7 100T and soldered pin headers (J1, J2 pin headers soldered on bottom, J3 missing, JB1 soldered on top)

追加情報

• Manufacturer&lquot;s article number: TE0725LP-02-72C-AT
• Trenz Electronic TE0725LP Wiki
• Support Forum
