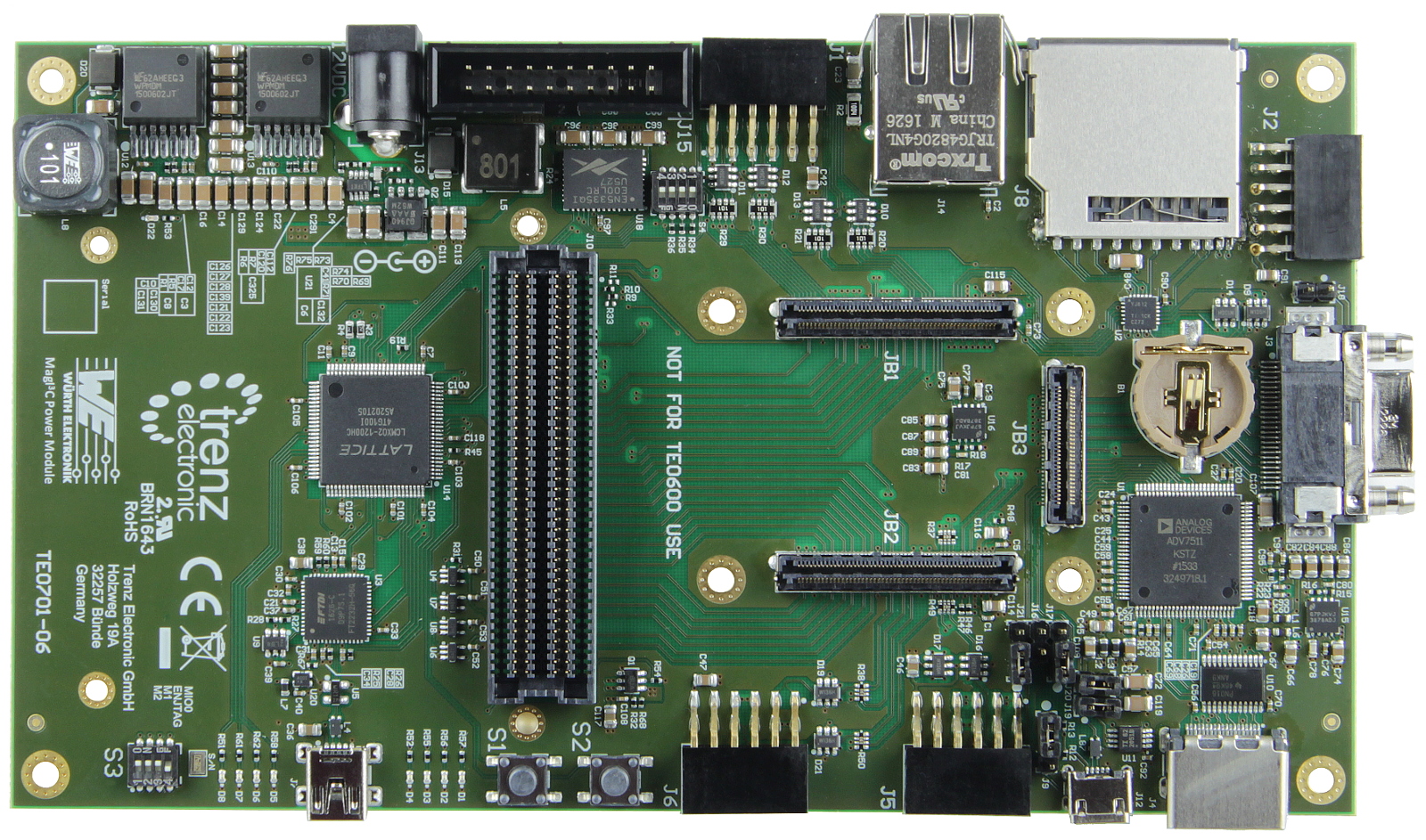

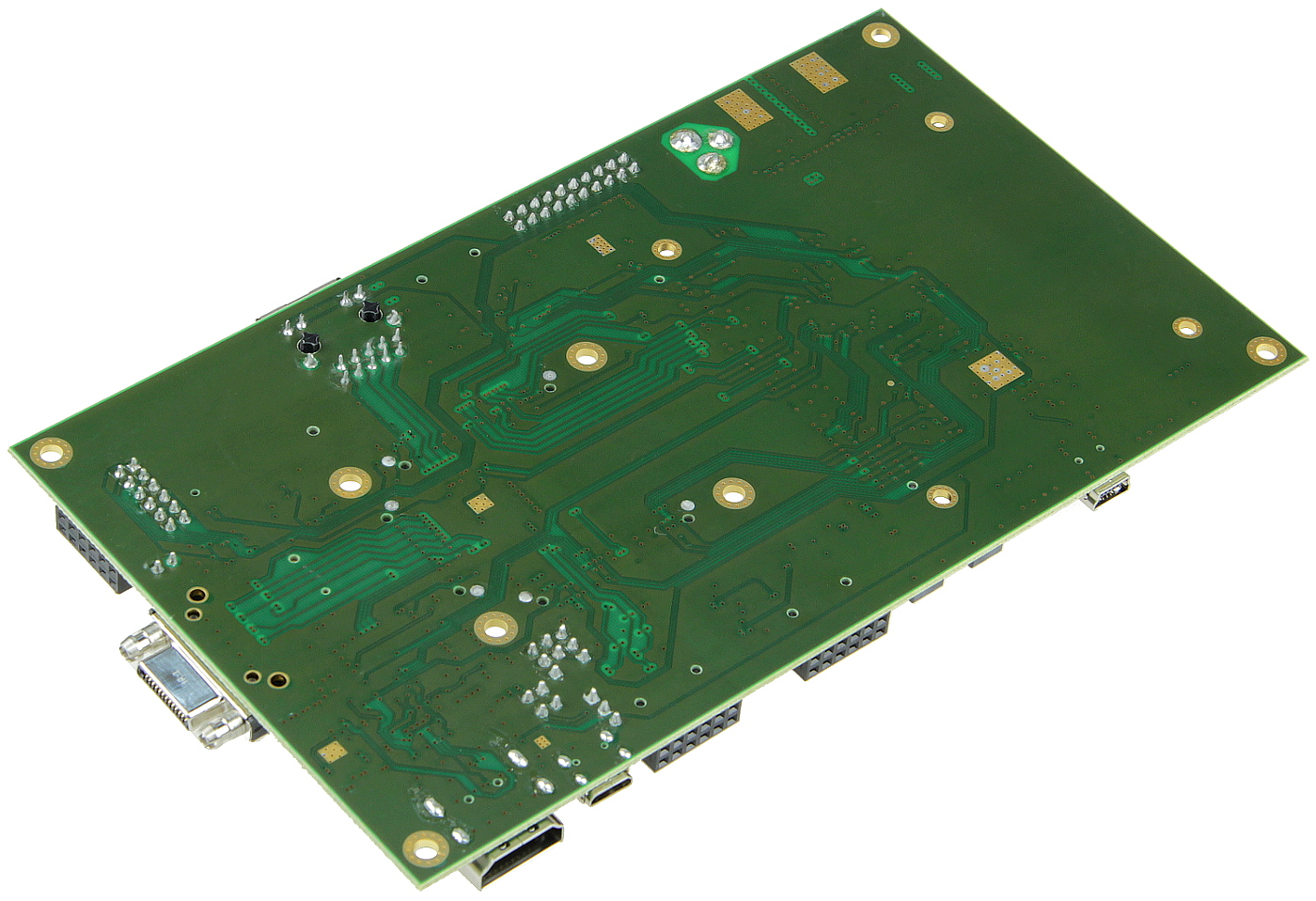

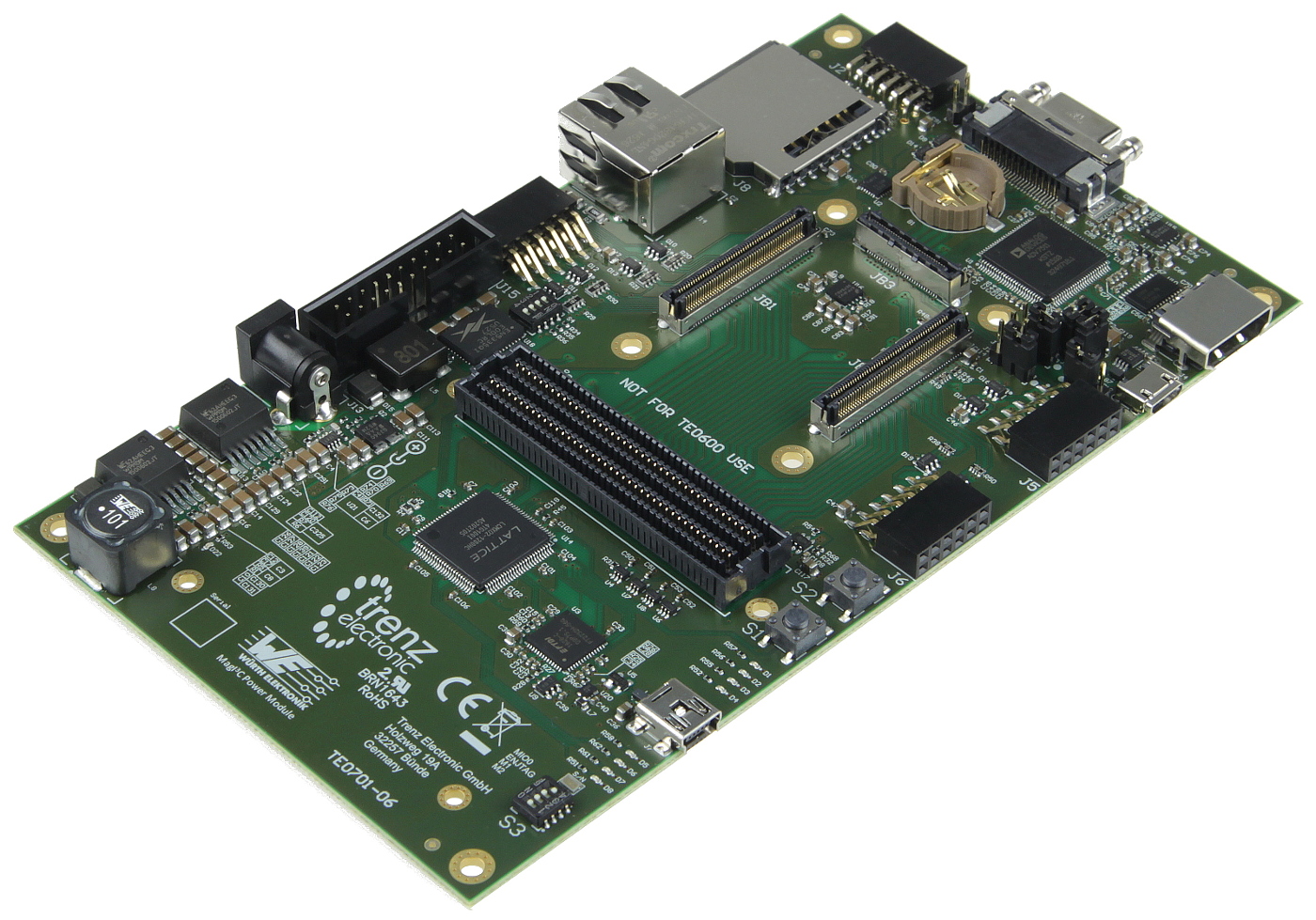

TE0701-07-A
特徴
- Trenz 4 x 5 Module socket (3 x Samtec LSHM connectors)
- RJ45 GbE Ethernet
- MicroUSB connector (Device, Host or OTG modes)
- SD Card connector - Zynq SDIO0 bootable SD port
- Pmod connector A, 3.3V
- 6 Pins can be multiplexed to SD Card pins (MIO1 bank when using TE0720)
- 2 Pins connected to carrier controller CPLD
- Pmod connector B, 3.3V
- Mapped to 8 PS MIO0 pins if using TE0720 (same mapping as on zedboard)
- 6 pins also connected to carrier controller CPLD
- Single 12V power supply
- High performance Enpirion DCDC converter for local supplies
- VITA57.1 compliant FMC LPC connector
- Digitally programmable FMC VADJ power supply
- Carrier controller CPLD
- 1200 Macrocell CPLD with Block RAM, Flash and PLL
- 8 user LEDs mappable to different functions
- 2 user pushbuttons mappable to different functions
- VID and EN control for FMC VADJ DCDC regulator
- USB JTAG interface
- Mini USB connector
- Compatible with Xilinx tools: Impact, Chipscope, XMD, Vivado/SDK etc.
- Compatible with OpenOCD debugger including ZYNQ SRST control
- Based on FT2232H USB chip
- Channel A can toggle module (Zynq PS) reset
- Channel B can be used as USB UART
- Carrier controller can reroute RXD/TXD signals
- JTAG port can be connected to (by the carrier controller)
- 4 x 5 module JTAG (FPGA + ARM chained in Zynq)
- 4 x 5 module JTAG and FMC JTAG in chain
- FMC JTAG alone
- Zynq ARM PS JTAG port (via EMIO muxing in TE0720)
- 6 pin header for off board use
- Pmod connector B for off-board use
納品物
- 1 x TE0701-07-A carrier board for Trenz Electronic modules with 4 x 5 cm standard footprint only
追加情報
- Manufacturer&lquot;s article number: TE0701-07-A
- Trenz Electronic TE0701 Wiki
- Support Forum
リンク
| 製品名 | 価格 | |
|---|---|---|
| TE0701-07-A | 32,800 | カートに入れる |
